Description

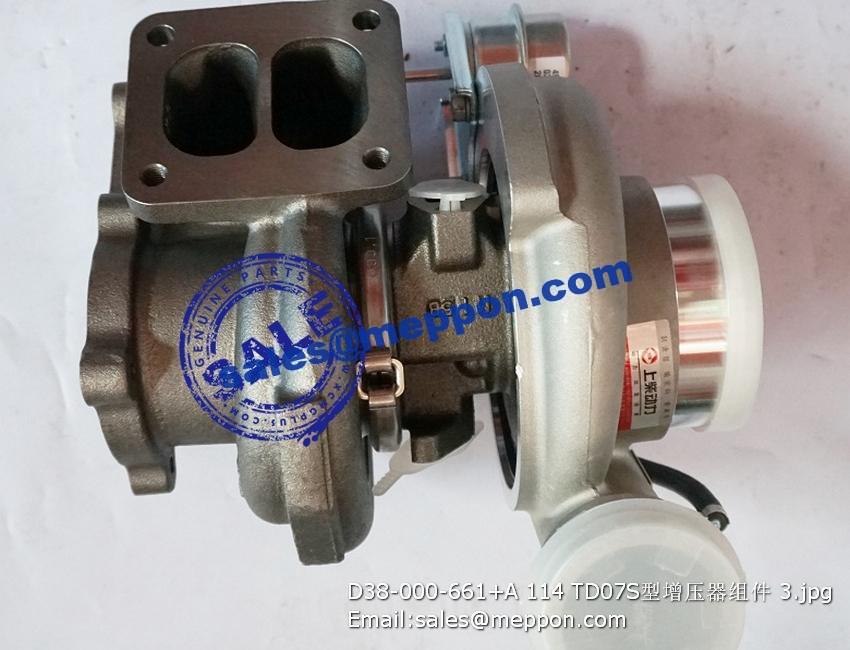

D38-000-661+A 114 TD07S turbocharger PS12571

1 U382A-5M2894 平垫圈 OIL PUMP GROUP 4
2 U311A-3B1915 螺栓 BOLTS 2
3 C15AL-2P8746 垫片 GASKET 1
4 C15AL-4N5353 吸油管 SUCTION PIPE, OIL PUMP 1
5 C15AB-4W2448 机油泵试验部件 OIL PUMP ASSY 1
6 U311A-0S1590 小六角头螺栓 BOLTS 3 Q/SC611.1-M10*50
7 U311A-0S1619 六角头螺栓 BOLTS 1
8 C15AL-7W0507 驱动齿轮 GEAR, OIL PUMP 1
9 U351A-8M5599 半圆键 KEY 1
10 U382A-1P7346 平垫圈 PLAIN WASHER 1
11 U311A-0S1590 六角头螺栓 BOLTS 1

1 C16AB-16AB001 风扇支架加工部件 FAN SHAFT BRACKET AS. 1
1.3 C16AL-16AL003 风扇轴支架 BRACKER-FAN 1
1.4 B00000132 圆柱销 CYLINDRICAL PIN 1 GB/T119-B10*18
5 C16AL-M1W4407 风扇法兰 HUB-FAN PULLEY 1
6 B00000241 深沟球轴承 BALL BEARING 1 GB/T276-6307
7 B00000216 深沟球轴承 BALL BEARING 1 GB/T276-6207
8 B00001456 骨架式橡胶油封 RUBBER OIL SEAL 1 HG4-692-SG50*72*12
9 C16AL-16AL002 隔圈 SPACER 1
10 C16AL-8N5305 隔圈 SPACER 1
11 C16AL-5S7264 压紧垫圈 WASHER-RETAINING 1
12 B00001479 直通式压注油环 OIL WREATH 1 JB/T7940.1-M10*1
13 C16AL-16AL004 调节垫块 SPACER 1
14 U311A-1A1460 六角头螺栓 BOLT 8
15 U311A-6V4626 六角头螺栓 BOLT 2

C16BB-16BB006 风扇联轴节部件 FAN ADAPTER AS. 1
C16BL-16BL020 闷头 PLUG 1
C16BL-16BL015 风扇连轴节 COUPLING, FAN 1
U641A-9F4446 O型密封圈 FAN ADAPTER 1
B00000407 六角头螺栓 PLUG 6 GB/T5782-M10*70-10.9
B00000768 六角螺母 SEAL-O-RING 6 GB/T6170-M10-Y
B00001275 平垫圈 CHART TENSION 6 GB/T97.1-10-200HV-Y
C16BB-16BB026 风扇皮带轮部件 PULLEY FOR ALTERNATOR 1
C16BL-16BL019 发电机皮带轮 FAN PULLEY 1
C16CZ-16CZ005 三角带组件 V-BELT GROUP 1
