Description

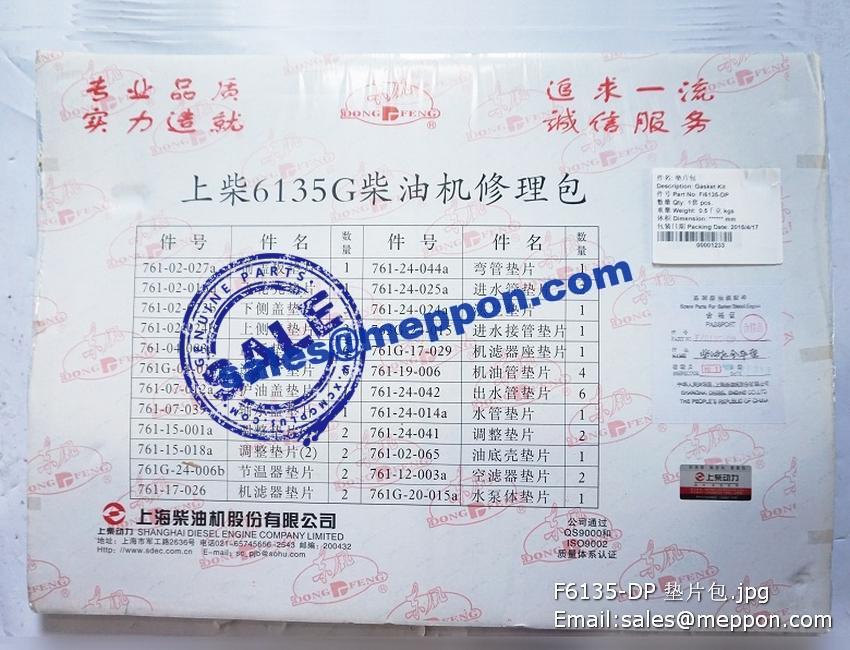

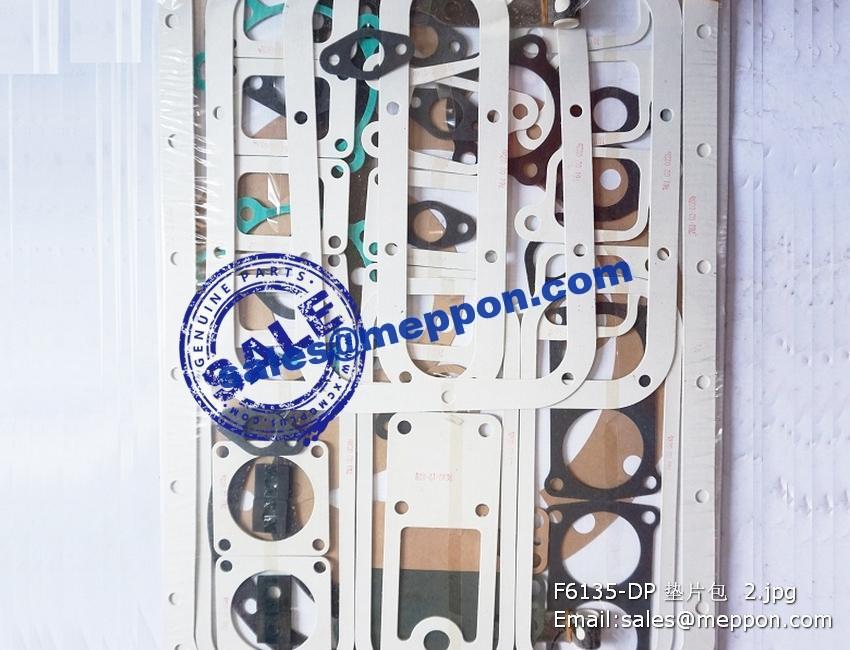

F/6135-DP repair kits PS12870

1 S00004864 机油冷却器垫片 GASKET, OIL COOLER 1
2 S00003083 机油冷却器芯子焊接部件 CORE ASSY (WELDED), OIL COOLER 1
3 S00004865 机油冷却器垫片 GASKET, OIL COOLER 1
4 S00004867 机油冷却器盖装配部件 COVER ASSY, OIL COOLER 1
5 B00004449 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 15 GB/T16674.1-M8*40-10.9
6 S00012368 机油滤清器部件 OIL FILTER ASSY 1

1 S00013393 垫块 SPACER 1
2 S00013436 吸油管焊接部件 OIL SUCTION PIPE ASSY 1
3 S00005011 吸油管法兰垫片 GASKET, PIPE FLANGE-OIL SUCTION PUMP 1
4 B00004880 六角法兰面螺栓 HEX HEAD BOLT 1 GB/T16674.1-M10*25-10.9-F
5 B00004885 六角法兰面螺栓 HEX HEAD BOLT 2 GB/T16674.1-M8*25-10.9-F
6 S00012860 油底壳装配部件 OIL PAN ASSY 1
7 B00001707 内六角螺塞 HEX SOCKET PIPE PLUG 1 Q/SC584.2-M22*1.5
8 B00001551 复合式密封硬垫圈 RUBBER COATED HARD WASHER 1 Q/SC1294-22
9 S00011730 油底壳压条 CLAMPING BAR – OIL SUMP 1
10 S00011731 油底壳压条 CLAMPING BAR – OIL SUMP 1
11 B00002132 六角法兰面螺栓 HEX HEAD BOLT 18 Q/SC622-M8*16
12 B00002134 六角法兰面螺栓 HEX HEAD BOLT 6 Q/SC622-M8*20

1 S00025733 空滤器部件 AIR FILTER ASSY 1
2 B00000834 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 4 GB/T6177-M10-Zn.D
3 S00011654 空滤器支架 AIR FILTER BRACKET 1
4 B00002000 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M10*25-ZN.D
5 B00002009 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M10*40-ZN.D
6 S00013004 垫块 SPACER 4
7 B00001583 卡箍 CLAMP 2 Q/SC1302-78~101
8 S00011655 增压器进气管 AIR INLET PIPE, TURBOCHARGER 1
9 S00028066 水箱散热器组件 REDIATOR GROUP 1
