Description

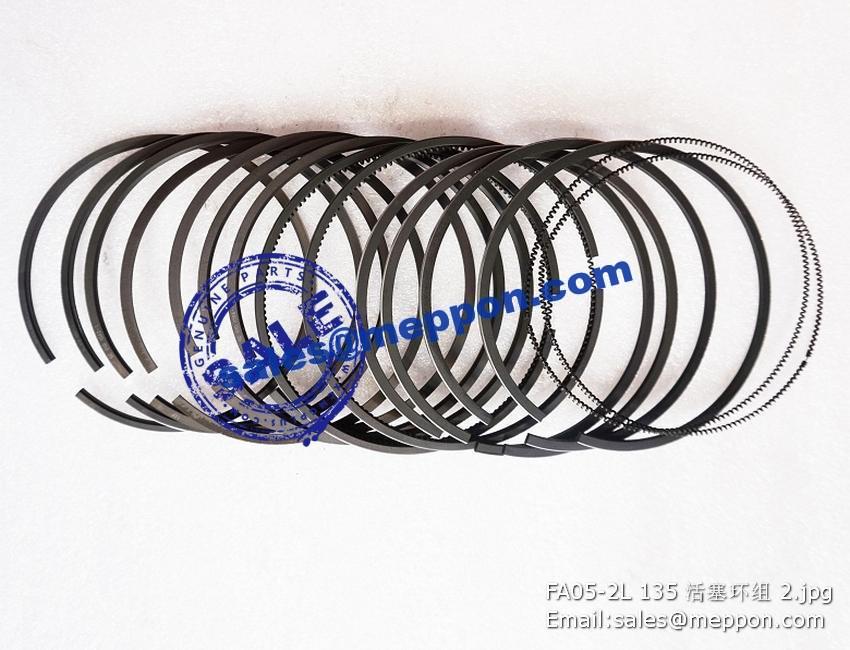

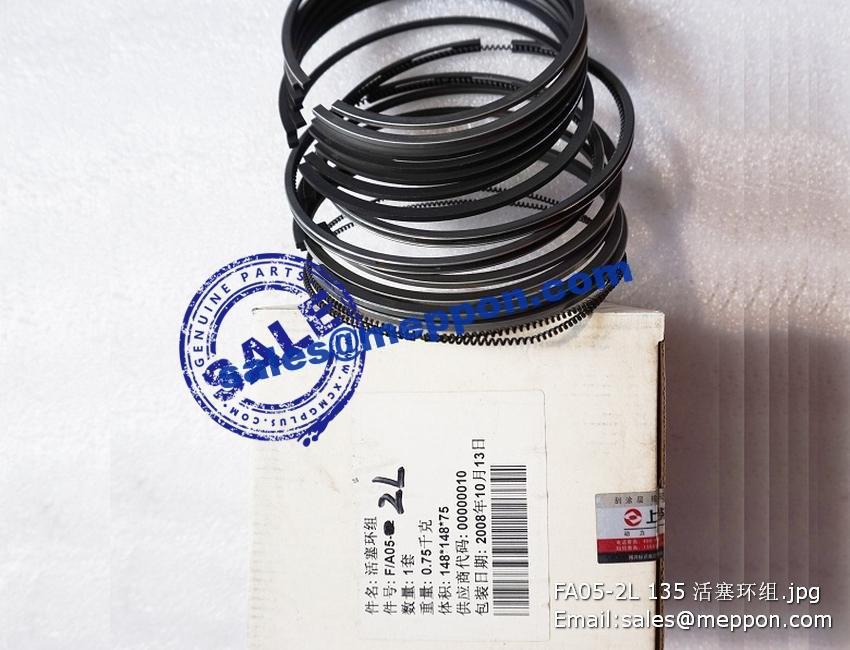

F/A05-2L 135 PISTON RING PS12894 860109136

1 S00000943 机体机加工部件 CYLINDER BLOCK ASSY (MACHINED) 1
2 S00066666 闷头（φ58） PLUG (φ58) 2
3 D04-167-01A 闷头（φ35） PLUG 7
4 S00003875 闷头（φ18） PLUG (φ18) 4
5 D04-308-01 闷头 PLUG 1
6 D02A-322-40 定位套筒 RETAINER SLEEVE 2
7 S00018740 闷头（φ9.65） PLUG (φ9.65) 4
8 S00003466 主轴承盖螺栓 BOLT, MAIN BEARING CAP 10
10 S00004822 螺塞装配部件 PIPE PLUG ASSY (ASSEMBLED) 1
11 S00004824 O形橡胶密封圈 O-RING 1
12 D02A-127-01 闷头(φ22) PLUG 1
13 S00000950 定位销 DOWEL PIN 2
14 S00008938 缸套 CYLINDER LINER (WHITE) 4
14 S00008939 缸套 CYLINDER LINER (BLUE) 4
15 S00004367 凸轮轴轴承 BUSHING, CAMSHAFT 1
16 S00004809 螺塞装配部件 PIPE PLUG ASSY (ASSEMBLED) 1
17 S00004811 O形橡胶密封圈 O-RING 1
18 S00004818 螺塞装配部件 PIPE PLUG ASSY (ASSEMBLED) 1
19 S00004814 O形橡胶密封圈 O-RING 1
20 S00004815 螺塞装配部件 PIPE PLUG ASSY (ASSEMBLED) 1
21 S00004817 O形橡胶密封圈 O-RING 1

1 B00004896 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 GB/T16674.1-M8*16-10.9-F
2 S00002899 凸轮轴推力板 THRUST PLATE, CAMSHAFT 1
3 B00000121 定位销 DOWEL PIN 1 GB/T119-A6*12
4 S00006208 凸轮轴 CAMSHAFT 1
5 S00009711 油尺及油尺管部件 OIL DIPSTICK AND TUBE ASSY 1
6 S00002893 气门挺柱 TAPPET 8
7 S00004685 活塞冷却喷嘴部件 PISTON-COOLING ORIFICE ASSY 4
8 S00012592 右前支撑 SUPPORT PLATE, FRONT RIGHT 1
9 B00002055 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 6 Q/SC622-M12*35-10.9
10 S00012591 左前支撑 SUPPORT PLATE, FRONT LEFT 1
