Description

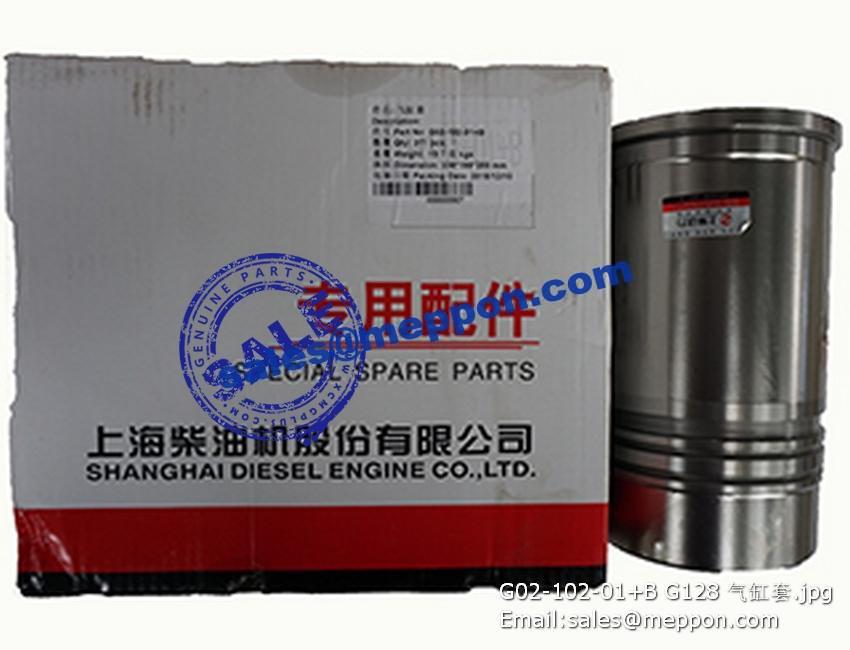

G02-102-01+B G128 CYLINDER LINER 1 PS12942 PS12943 SP101195 G6135.G02-102-01BZ

1 S00003468 飞轮螺栓 BOLT 8
2 S00004914 垫片 GASKET 8
3 S00010023 飞轮齿圈装配部件 FLYWHEEL AND RING GEAR ASSY 1
4 B00000098 圆柱销 PIN 1 GB/T119-A10*20
5 S00006269 飞轮齿圈 FLYWHEEL AND RING GEAR 1
6 S00009644 飞轮壳开口盖板 PLATE WITH OPENING, FLYWHEEL HOUSING 1
7 B00004827 O型橡胶密封圈 O-RING 1 GB/T3452.1-65*5.3
8 B00002037 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M12*110-10.9
9 B00004631 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 6 GB/T16674.1-M12*80-10.9
10 B00002031 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M10*80-10.9
11 B00004902 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 11 GB/T16674.1-M10*40-10.9-F
12 B00001728 六角头螺塞 PIPE PLUG 1 Q/SC587.1-M18*1.5
13 B00001699 螺塞 PIPE PLUG 1 Q/SC584.1-R3/4
14 S00009041 飞轮壳 FLYWHEEL HOUSING 1
15 D02A-118-02B 曲轴后油封 CRANKSHAFT SEAL, BACK 1
16 B00002111 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 6 Q/SC622-M6*12
17 S00009042 飞轮壳观察孔盖板 OBSERVING HOLE ADAPTOR, FLYWHELL HOUSING 1
18 S00009043 飞轮壳观察口盖板垫片 COVER GASKET 1
19 D02C-103-30 指针 FINGER 1
20 D02C-104-01 盖板 COVER 1
21 D02C-105-01 盖板垫片 COVER GASKET 1
22 B00002130 六角法兰面螺栓 BOLT 2 Q/SC622-M8*12
23 D02C-106-01 盘车孔塞 BARRING BORE PLUG 1
24 B00000300 O型橡胶密封圈 O-RING 1 GB/T3452.1-23.6*3.55
25 S00005202 通气管接头部件 JOINT ASSY, FUMES DISPOSAL 1
26 S00005204 O型圈 O-RING 1
27 S00005205 通气管夹片 VENT PIPE CLAMP (HALF) 1
28 B00005085 内六角圆柱头螺钉 HEXAGON SOCKET HEAD CAP SCREWS 1 GB/T70.1-M8*12-ZN.D
29 B00001565 喉箍 CLAMP 1 Q/SC1302-18~32
30 S00010031 通气管 VENT PIPE 1
31 S00010423 夹箍 CLAMP 1
32 B00004896 六角法兰面螺栓 BOLT 1 GB/T16674.1-M8*16-10.9-F
33 S00012976 起动电机 STARTING MOTOR 1
34 B00005036 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 3 GB/T16674.1-M10*30-10.9-ZN.D
35 S00011542 转速传感器 ENGINE SPEED SENSOR 1
36 B00001549 复合式密封硬垫圈 RUBBER COATED HARD WASHER 1 Q/SC1294-18
