Description

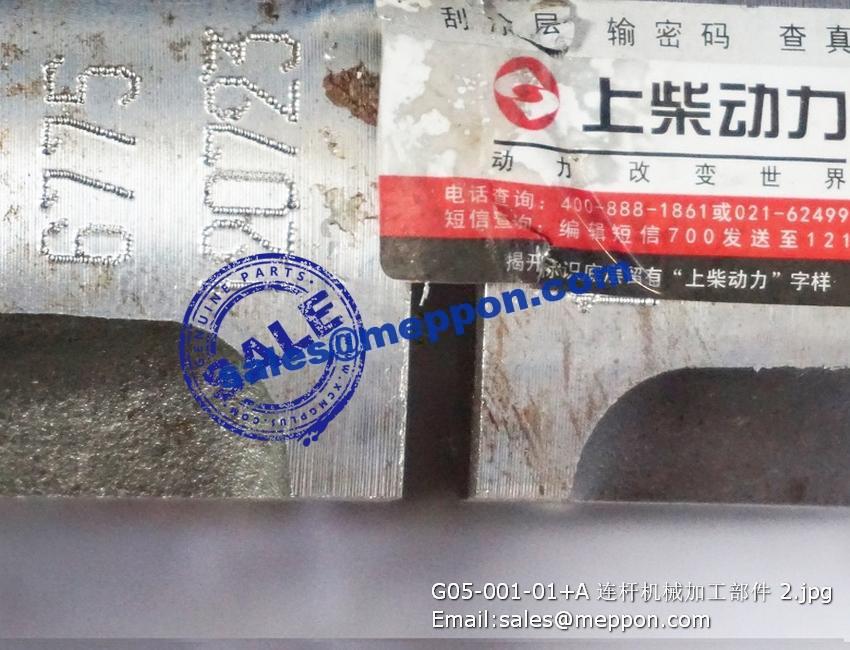

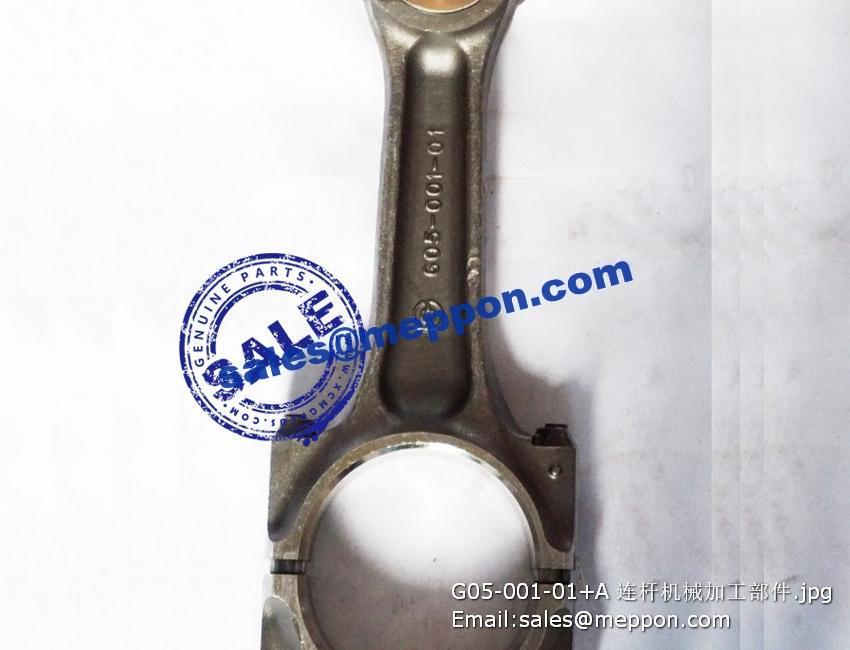

G05-001-01+A PS13007 SP101209 CONNECTING ROD

1 B00004896 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 GB/T16674.1-M8*16-10.9-F
2 S00002899 凸轮轴推力板 THRUST PLATE, CAMSHAFT 1
3 B00000121 圆柱销 PARALLEL PIN 1 GB/T119-A6*12
4 S00006208 凸轮轴 CAMSHAFT 1
5 S00009711 油尺及油尺管部件 OIL DIPSTICK AND TUBE ASSY 1
6 S00002893 挺柱 TAPPET 2
7 S00004685 活塞冷却喷嘴部件 ORIFICE ASSY, PISTON COOLING JET 4
8 S00012592 右前支撑 SUPPORT PLATE, FRONT RIGHT 1
9 B00002055 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 6 Q/SC622-M12*35-10.9
10 S00012591 左前支撑 SUPPORT PLATE, FRONT LEFT 1

1 S00002888 排气门座圈 VALVE SEAT INSERT, EXHAUST 8
2 S00002887 进气门座圈 VALVE SEAT INERT, INTAKE 8
3 D02A-310-01 闷头（φ20） PLUG (φ20) 7
4 D04-167-01A 闷头（φ35） PLUG（φ35） 1
5 S00018740 闷头（φ9.65） PLUG (φ9.65) 5
6 D04-308-01 闷头 PLUG 9
7 S00000844 气缸盖垫片【４Ｈ】 GASKET, CYLINDER HEAD 1
8 S00004163 气缸盖机加工部件 CYLINDER HEAD ASSY (MACHINED) 1
9 S00002886 排气门 VALVE, EXHAUST 8
10 S00002885 进气门 VALVE, INTAKE 8
11 S00010416 O型橡胶密封圈 O-RING 1
12 B00001708 内六角螺塞 HEXAGONAL SOCKET HEAD PLUG 1 Q/SC584.2-M24*1.5
13 D02A-163-01 内六角螺塞(Z3/4) HEXAGONAL SOCKET HEAD PLUG(Z3/4) 2
14 B00000122 圆柱销 PARALLEL PINS 8 GB/T119-A6*18
15 S00008872 气门杆油封 VALVE STEM SEAL 16
16 S00002889 气门弹簧 VALVE SPRING 16
17 S00002890 气门锁夹 VALVE COLLET 32
18 S00004345 气门弹簧上座 VALVE SPRING RETAINER 16
19 S00002897 进气门桥 VALVE BRIDGE, INTAKE 8
20 D02A-164-01 内六角螺塞(Z1/2) HEXAGONAL SOCKET HEAD PLUG(Z1/2) 2
21 S00024299 气缸盖螺栓 BOLT, CYLINDER HEAD 18
22 B00001704 内六角螺塞 HEXAGONAL SOCKET SCREW PLUG 1 Q/SC584.2-M16*1.5
23 B00002471 O形橡胶密封圈 O-RING 1 Q/SC648-13.8*2.4
24 S00004918 螺塞 PIPE PLUG ASSY (ASSEMBLED) 1
25 S00004986 O型橡胶密封圈 O-RING 1
