Description

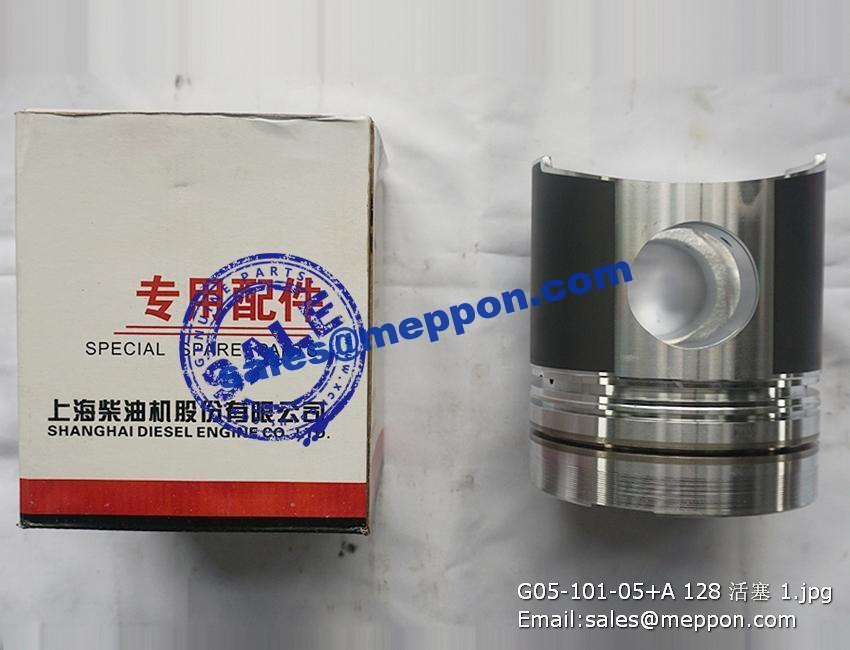

G05-101-05+A 128 PS13011 SP101211 PISTON

1 S00000973 梯形桶面环 TOP RING, PISTON 4
2 S00000974 内切锥面环 INTERMEDIATE RING, PISTON 4
3 S00000975 油环部件 PISTON OIL CONTROL RING ASSY 4
4 B00001037 孔用弹性挡圈-A型 CIRCLIPS FOR BORES TYPE-A 8 GB/T893.1-40
5 S00001198 活塞销 PIN, PISTON 4
6 S00009693 活塞 PISTON 4
7 S00001412 连杆机加工部件 CONNECTING ROD ASSY (MACHINED) 4
8 S00001416 连杆螺栓 BOLT, CONNECTING ROD 2
9 S00004365 连杆上瓦 UPPER BEARING, CONNECTING ROD 4
10 S00004366 连杆下瓦 LOWER BEARING, CONNECTING ROD 4
11 S00004362 主轴瓦（上） MAIN BEARING, UPPER 4
12 S00004363 主轴瓦（下） MAIN BEARING, LOWER 5
13 S00004364 曲轴推力轴承 THRUST BEARING, CRANKSHAFT 1
14 S00003262 曲轴部件 CRANKSHAFT ASSY 1
15 B00000121 圆柱销 PARALLEL PINS 1 GB/T119-A6*12

1 S00005202 通气管接头部件 JOINT ASSY, FUMES DISPOSAL 1
2 S00005204 O型橡胶密封圈 O-RING 1
3 S00005205 通气管夹片 VENT PIPE CLAMP (HALF) 1
4 B00005085 内六角圆柱头螺钉 HEXAGON SOCKET HEAD CAP SCREWS 1 GB/T70.1-M8*12-ZN.D
5 B00001565 喉箍 CLAMP 1 Q/SC1302-18~32
6 S00010031 通气管 TUBE, FUMES DISPOSAL 1
7 S00010423 夹箍 CLAMP 1
8 B00004896 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 GB/T16674.1-M8*16-10.9-F
9 B00004885 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 6 GB/T16674.1-M8*25-10.9-F
10 S00010427 高压油泵齿轮 GEAR, FUEL INJECTION PUMP 1
11 S00010428 凸轮轴齿轮 GEAR, CAMSHAFT 1
12 S00000948 定位销 DOWEL PIN 2
13 S00015034 齿轮室 HOUSING, GEAR 1
14 B00004452 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 3 GB/T16674.1-M10*50-10.9
15 B00002051 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 1 Q/SC622-M12*30-10.9
16 B00004580 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 GB/T16674.1-M10*30-10.9
17 B00004372 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 GB/T16674.1-M8*45-10.9
