Description

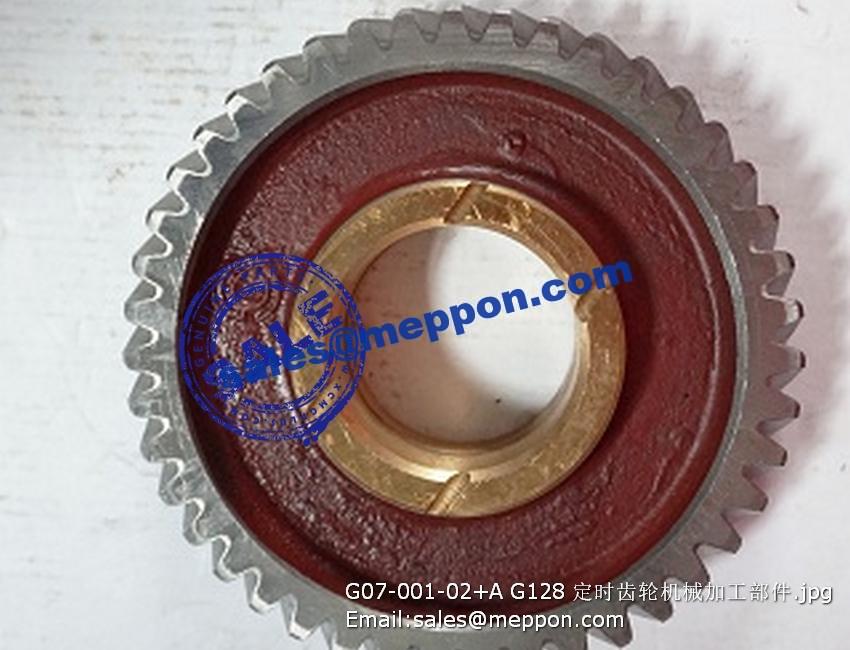

G07-001-02+A G128 idle gear PS13054
1 机体维修组件 CYLINDER BLOCK GROUP SERVICE GROUP 1
2 S00002080 O型橡胶密封圈 O-RING 1
3 S00006121 圆柱销 DOWEL, PIN 3
4 S00002092 定位销 DOWEL PIN 2
5 B00004575 闷头 PLUG 1 Q72230
6 B00004577 闷头 PLUG 11 Q72240
7 内六角螺塞维修组件 PLUG SERVICE GROUP 1
B00001704 内六角螺塞 PLUG 1 Q/SC584.2-M16*1.5
8 S00002319 主轴承螺栓 BOLT, MAIN BEARING 14
9 B00002011 六角法兰面螺栓 SIX ANGLE BOLT FLANGE 24 Q/SC622-M10*45-10.9
10 S00001515 定位套 DOWEL SLEEVE 4
11 B00004647 内六角锥形螺塞 PLUG SCREW 1 Q61902
12 B00004646 内六角锥形螺塞 PLUG SCREW 1 Q61901
14 B00000896 内六角圆柱头螺钉 HEXAGON SOCKET HEAD CAP SCREW 1 GB/T70.1-M6*10
15 S00021857 活塞冷却喷嘴部件 ORIFICE ASSY, PISTON COOLING JET 1
16 B00001832 铜垫圈 COPPER WASHER 1 Q/SC598-18*26
17 B00004574 内六角锥形螺塞 PLUG SCREW 1 Q61910
18 S00002202 油尺及油尺管部件 OIL DIPSTICK AND TUBE ASSY 1
19 B00001830 铜垫圈 COPPER WASHER 1 Q/SC598-18*22
20 S00020040 转子滤孔盖板部件 OIL CENTRIFUGAL FILTRATION COVER ASSEMBLY 1
21 B00001999 六角法兰面螺栓 SIX ANGLE BOLT FLANGE 4 Q/SC622-M10*25
22 B00001829 铜垫圈 COPPER WASHER 1 Q/SC598-16*24
23 B00004383 钢球 STEEL BALL 2 GB/T308-12
24 气缸套维修组件 CYLINDER LINER GROUP 6
S00002335 缸套 CYLINDER LINER 6
25 缸套封水圈维修组件 CYLINDER LINER O-RING SERVICE GROUP 6
S00002431 缸套封水圈 SEAL, CYLINDER LINER 12
26 内六角螺塞维修组件 PLUG SERVICE GROUP 1
B00001728 六角头螺塞 PLUG 1 Q/SC587.1-M18*1.5
28 机体装配加工维修组件 CYLINDER BLOCK ASSY SERVICE GROUP 1
S00026202 机体机加工部件 CYLINDER BLOCK ASSY 1
1 气缸盖维修组件 CYLINDER HEAD ASSY SERVICE GROUP 1
2 S00002093 气缸盖垫片 CYLINDER HEAD GASKET 1
3 B00004812 碗形垫片 FOR GASKET 1 Q72235
4 S00001687 螺塞 PIPE PLUG 2
5 B00004353 六角法兰面螺栓 SIX ANGLE BOLT FLANGE 4 GB/T16674.1-M10*35-10.9
6 S00008115 发动机前吊环 ENGINE LIFTING EYE, FRONT 1
7 S00021269 闷头 PLUG 12
8 S00008843 闷头 PLUG 6
9 S00001567 气缸盖螺栓 BOLT, CYLINDER HEAD 26
11 B00004384 钢球 STEEL BALL 6 GB/T308-6.35
12 S00002387 O型橡胶密封圈 O-RING 6
13 S00002015 喷油器隔套 SPACING SLEEVE, INJECTOR 6
14 B00005059 六角法兰面螺栓 SIX ANGLE BOLT FLANGE 7 GB/T16674.1-M10*90-10.9-F
15 B00004382 圆柱销 DOWEL, PIN 18 GB/T119-A5*12
16 B00004349 六角法兰面螺栓 SIX ANGLE BOLT FLANGE 1 GB/T16674.1-M10*100
17 凸轮轴维修部件 BUSHING, CAMSHAFT SERVICE GROUP 7
S00013751 凸轮轴 CAMSHAFT 1
18 B00000121 圆柱销 DOWEL, PIN 1 GB/T119-A6*12
19 S00001602 凸轮轴齿轮 GEAR, CAMSHAFT 1
20 S00001516 气门弹簧上座 INTAKE SPRING, INTAKE 24
21 S00002127 气门锁夹 VALVE COLLET 48
22 S00001801 气门弹簧 VALVE SPRING 24
23 S00002065 气门杆油封 VALVE STEM SEAL 24
24 B00002028 气缸盖齿轮室螺栓 BOLT 2 Q/SC622-M10*75-10.9
25 D02A-312-01 圆柱销 PIN 2
27 D02A-161-01 闷头 PLUG 1
28 S00002090 O形橡胶密封圈 O-RING 1
29 S00002444 后盖部件 BACK COVER ASSY 1
30 B00004368 六角法兰面螺栓 SIX ANGLE BOLT FLANGE 2 GB/T16674.1-M8*20
31 S00008112 发动机后吊环 ENGINE LIFTING EYE, REAR 1
32 B00002011 六角法兰面螺栓 SIX ANGLE BOLT FLANGE 4 Q/SC622-M10*45-10.9
33 S00001631 进气门 VALVE, INTAKE 12
34 S00002289 排气门 VALVE, EXHAUST 12
37 S00001887 缸盖上水管 CYLINDER HEAD WATER TUBE 6
38 S00003104 齿轮室垫片 GASKET, GEAR HOUSING 1
39 气缸盖总成维修组件 CYLINDER HEAD ASSY SERVICE GROUP 1
S00010581 气缸盖装配部件 CYLINDER HEAD ASSY (ASSEMBLED) 1
40 B00000116 圆柱销 DOWEL, PIN 2 GB/T119-A4*8
