Description

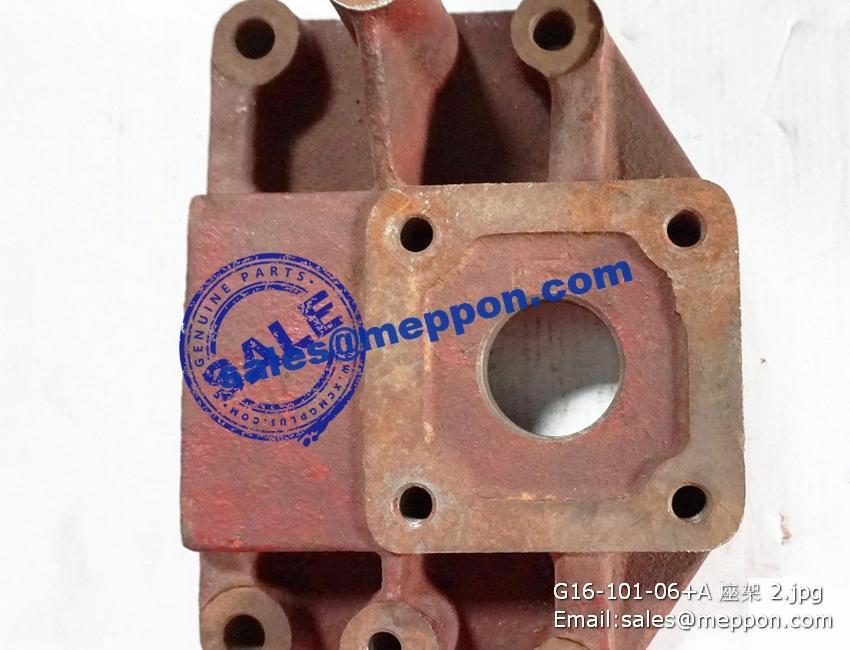

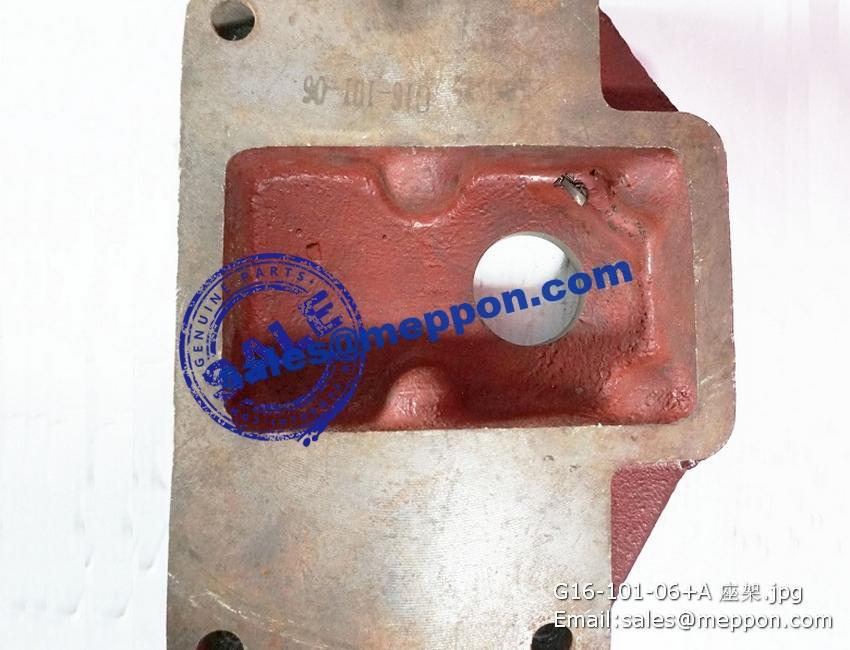

G16-101-06+A PS13143 bracket

1 机油冷却器座总成维修组件 BASE, OIL COOLER SERVICE GROUP 1
S00007606 机油冷却器座装配部件 BASE ASSY, OIL COOLER 1
2 机油冷却器座螺塞维修组件 PIPE PLUG, BASE OIL COOLER SERVICE GROUP 1
S00006151 机油冷却器座螺塞 PIPE PLUG, BASE OIL COOLER 1
3 S00007597 铜垫圈–机油冷却器座螺塞 COPPER WASHER 4
4 机油冷却器维修组件 OIL COOLER ASSEMBLY SERVICE GROUP 1
S00007938 机油冷却器 OIL COOLER ASSEMBLY 1
5 S00008175 O形橡胶密封圈–机油冷却器 O-RING 4
6 S00008710 机油冷却器座密封圈 OIL COOLER BASE SEALING RING 1
7 机油冷却器座维修组件 BASE, OIL COOLER SERVICE GROUP 1
S00007605 机油冷却器座 BASE, OIL COOLER 1
9 机油冷却器旁通阀维修组件 BYPASS VALVE ASSY, OIL COOLER 2
S00002504 机油冷却器旁通阀装配部件 BYPASS VALVE ASSY, OIL COOLER 2
10 S00002412 机油冷却器座密封圈（旁通阀） OIL COOLER BASE SEALING RING 1
11 S00002109 内六角螺塞–机油冷却器座 HEX SOCKET PIPE PLUG 1
12 机油冷却器座螺塞维修组件 PIPE PLUG, BASE OIL COOLER 4
S00007596 内六角螺塞 HEX SOCKET PIPE PLUG 4
13 S00006206 机油冷却器座密封圈 OIL COOLER BASE SEALING RING 1
14 B00004354 六角法兰面螺栓–机油冷却器座装配部件 SIX ANGLE BOLT FLANGE 13 GB/T16674.1-M10*35
15 D17-002-02 机油滤清器部件 OIL FILTER ASSY 2

1 B00002140 六角法兰面螺栓 SIX ANGLE BOLT FLANGE 37 Q/SC622-M8*30-10.9
2 油底壳放油螺塞维修组件 OIL PAN ASSY SERVICE GROUP 2
B00001728 油底壳放油螺塞 OIL PAN ASSY 2 Q/SC587.1-M18*1.5
3 B00001831 铜垫圈 COPPER WASHER 2 Q/SC598-18*24
4 吸油管维修组件 EYE PLATE GROUP SERVICE GROUP 1
S00006871 吸油管焊接部件 OIL SUCTION PIPE ASSY (WELDED), OIL SUCTION PUMP 1
5 S00001655 吸油管O型橡胶密封圈 O-RING 1
7 S00006959 垫块 SPACER 1
9 B00002137 六角法兰面螺栓 SIX ANGLE BOLT FLANGE 4 Q/SC622-M8*25
10 供油管焊接部件 FUEL SUPPLY TUBE ASSY 1
S00006872 供油管焊接维修组件 FUEL SUPPLY TUBE ASSY SERVICE GROUP 1
11 B00001384 O形橡胶密封圈 O-RING 1 GB3452.1-37.5*2.65
12 S00001814 机油供油管O型橡胶密封圈 O-RING 1
13 S00004493 机油泵部件 OIL PUMP ASSY 1
14 B00004560 六角法兰面螺栓 SIX ANGLE BOLT FLANGE 3 GB/T16674.1-M8*60-10.9
15 S00014922 油底壳装配部件 OIL PAN ASSY 1
