Description

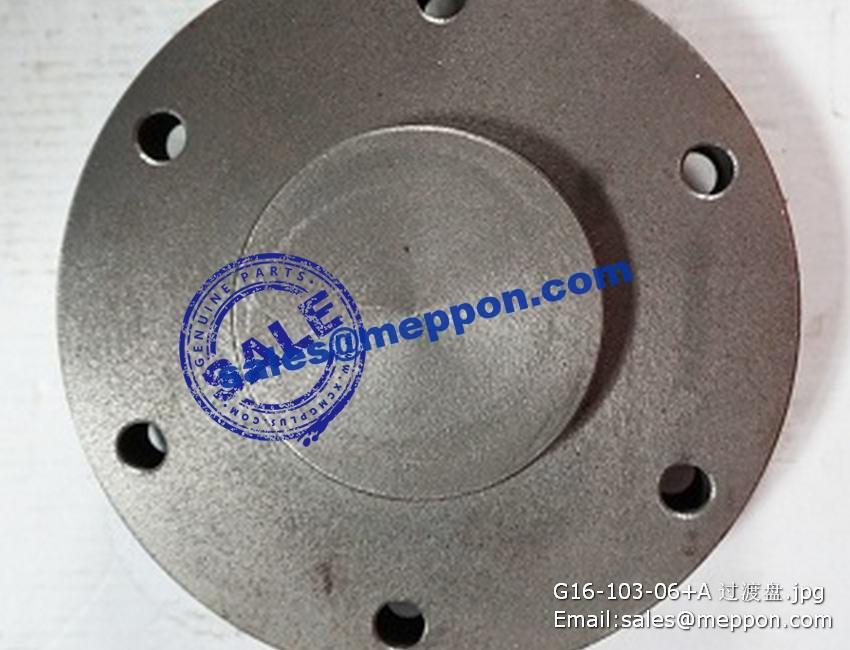

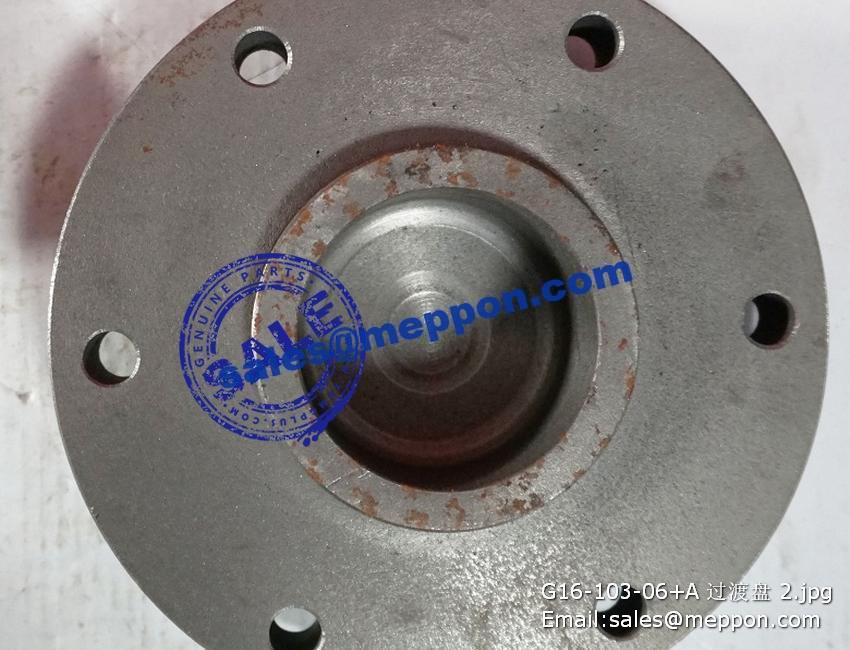

G16-103-06+A plate PS13156

1 B00001707 内六角头螺塞 PLUG 3 Q/SC584.2-M22*1.5
2 B00001840 垫片 GASKET 3 Q/SC598-22*30
3 D02A-127-01 闷头 PLUG 1
4 B00001704 内六角头螺塞 BANJO BOLT 1 Q/SC584.2-M16*1.5
5 B00001828 铜垫片 GASKET 1 Q/SC598-16*22
6 B00005092 内六角锥形螺塞 HEXAGON COUNTERSUNK CONE PLUG SCREW 1 Q61904-HZN.D
7 总回水管维修组件 WATER RETURN MANIFOLD GROUP 1
S00002581 总回水管 WATER RETURN MANIFOLD 1
8 S00002920 总回水管垫片 WATER RETURN MANIFOLD GASKET 6
9 S00006560 O型橡胶密封圈–回水管连接 O-RING 1
10 S00010560 水泵进水管垫片 WATER PUMP INLET TUBE GASKET 1
11 B00004374 螺栓–总回水管 BOLT 12 GB/T16674.1-M8*55
12 B00004163 螺栓–总回水管 BOLT 12 GB/T16674.1-M8*35
淡水泵进水管维修组件 WATER PUMP INLET TUBE SERVICE GROUP 1
13 S00001283 水温传感器 SENSOR, WATER TEMPERATURE 1
15 D04-151-30 放气接头 JIONT 1
17 B00004684 轴用弹性挡圈–回水管连接部件 RING RETAINER 1 GB/T894.1-68
18 水泵回水连接管维修组件 CONNECTOR ASSY,  WATER RETURN PIPE SERVICE GROUP 1
S00002101 水泵回水连接管 CONNECTOR ASSY,  WATER RETURN PIPE 1
21 S00006230 水泵出水口垫片 WATER PUMP OUTLET GASKET 1
22 淡水泵维修组件 WATER PUMP SERVICE GROUP 1
S00004471 淡水泵部件 WATER PUMP 1
23 S00006561 O型橡胶密封圈–回水管连接 O-RING 1
25 B00004632 螺栓–叶轮及连接轴 BOLT 9 GB/T16674.1-M8*30
26 S00001850 调温器部件 THERMOSTAT ASSY 2
31 B00004887 螺栓–皮带轮 BOLT 4 GB/T16674.1-M10*20-10.9-F
32 B00004352 六角法兰面螺栓–淡水泵 SIX ANGLE BOLT FLANGE 3 GB/T16674.1-M10*30
33 B00005327 六角法兰面螺栓–淡水泵 SIX ANGLE BOLT FLANGE 3 GB/T16674.1-M10*110-10.9-ZN.D
34 水泵进水管维修组件 WATER PUMP INLET PIPE SERVICE GROUP 1
S00014985 水泵进水管 WATER PUMP INLET PIPE 1
35 B00004827 O形橡胶密封圈–水泵进水管 O-RING 1 GB/T3452.1-65*5.3
36 B00002138 六角法兰面螺栓–水泵进水管 SIX ANGLE BOLT FLANGE 2 Q/SC622-M8*25-ZN.D
37 B00000846 六角法兰面螺母 SIX ANGLE BOLT FLANGE 2 GB/T6177-M8-Y
38 B00002142 六角法兰面螺栓 SIX ANGLE BOLT FLANGE 2 Q/SC622-M8*35
