Description

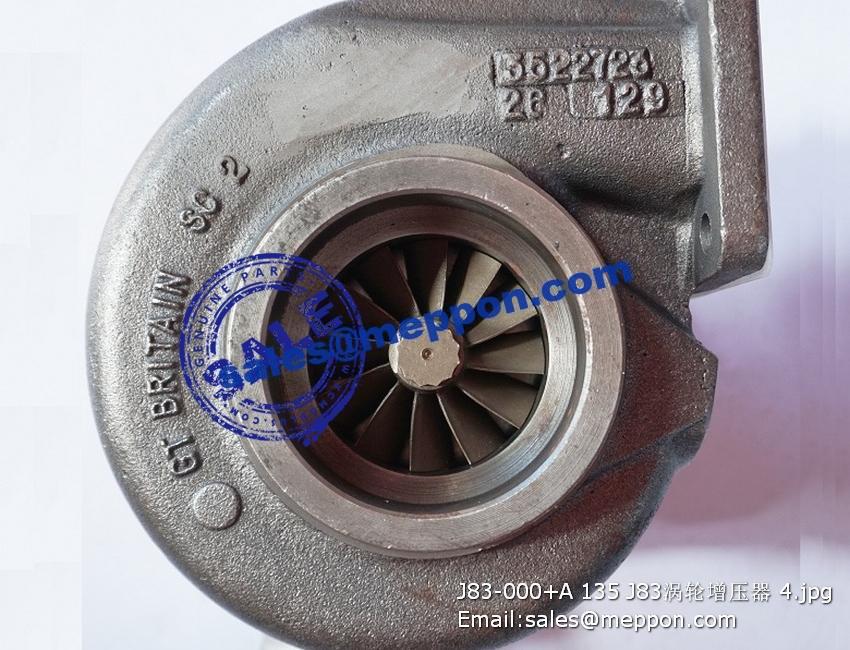

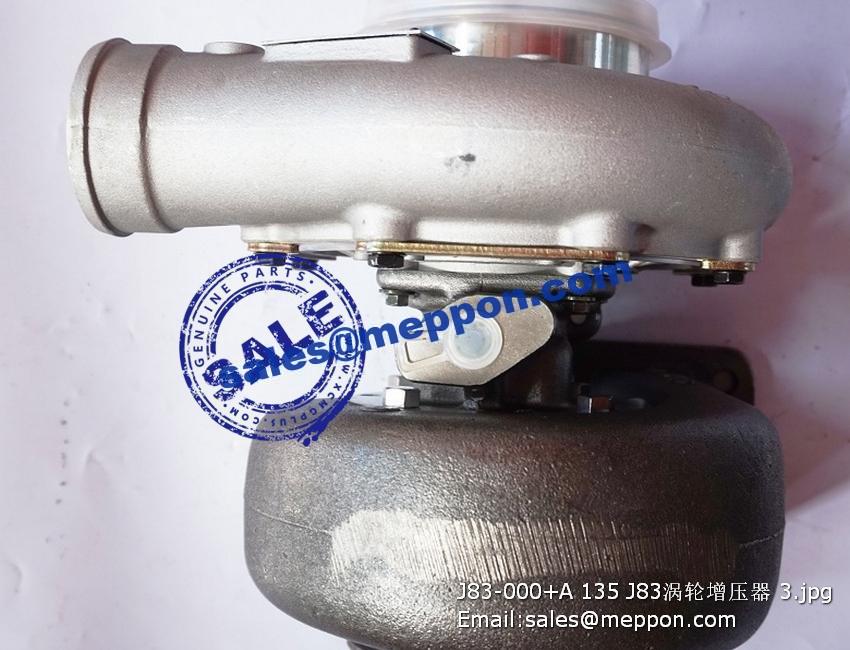

J83-000+A 135 J83 turbocharger PS13418
| 1 | 机油冷却器座装配部件 | OIL COOLER SEAT ASSEMBLY PARTS | B774ZL-18-010+A | 1 |
| 2 | 机油冷去器盖装配部件 | OIL COOLER COVER ASSEMBLY PARTS | B774ZL-18-020+A | 1 |
| 3 | 机油冷却器芯子 | OIL COOLER CORE | B774ZL-18-003+A | 1 |
| 4 | 空心螺套 | HOLLOW TURNBUCKLE | G17-104-01+A | 2 |
| 5 | 垫片 | OIL COOLER COVER GASKET | B774ZL-18-004+A | 1 |
| 6 | GB/T97.1-8-200HV-Y：平垫圈 | PLAIN WASHER | B00001299 | 16 |
| GB/T93-8：弹簧垫圈 | STANDARD SPRING WASHER | B00001253 | 16 | |
| Q/SC611.1-M8*1*65：小六角头螺栓 | SMALL HEXAGON HEAD BOLT | B00001955 | 16 | |
| 1 | 接头螺钉 | CONNECTOR SCREW | 771Z-17-001A+A | 1 |
| 2 | 油管 | INLET TUBE | 771Z-19-001+A | 1 |
| 3 | 油管 | INLET TUBE | 771Z-19-002+A | 1 |
| 4 | 垫片 | WASHER | 761Z-19-005A+B | 2 |
| 5 | 垫片 | WASHER | 771Z-19-009+B | 2 |
| 6 | GB/T93-6：弹簧垫圈 | SPRING WASHER | B00001252 | 1 |
| 7 | Q/SC598-14*18：铜垫圈 | COPPER WASHER | B00001823 | 14 |
| 8 | Q/SC642.1-01-M14*1.5：铰接螺栓 | BANJO BOLT | B00002179 | 4 |
| 9 | 回油管焊接部件 | TURBOCHARGER OIL RETURN TUBE ASSY | A771Z-19-010+B | 1 |
| 9.1 | 回油管密封圈座 | A771Z-19-001+A | 1 | |
| 9.2 | 回油管 | INLET TUBE | A771Z-19-002+A | 1 |
| 9.3 | Q/SC642.1-02-14.2：管接头体 | BANJO | B00002188 | 1 |
| 13 | Q/SC648-13.8*2.4：O形橡胶密封圈 | O-RING | B00002471 | 2 |
| 14 | 油管 | INLET TUBE | A771Z-19-004+A | 1 |
| 15 | 挂架 | BRACE | A771Z-19-006+A | 1 |
| 16 | GB/T6170-M6-Y：I型六角螺母 | HEXAGON NUT (TYPE 1) | B00000790 | 1 |
| 17 | 吸油管焊接部件 | OIL PUMP SUCTION TUBE ASSY | A771Z-19-020A+A | 1 |
| 17.1 | 吸油管 | OIL SUCTION PUMP PORT | A771Z-19-007+A | 1 |
| 17.2 | 法兰 | FLANGE | A771Z-19-008+A | 1 |
| 17.3 | 网盖 | STRAINER COVER | C19AL-19AL004+A | 1 |
| 17.4 | 滤网 | PRE-STRAINER | C19AL-19AL005+A | 1 |
| 22 | Q/SC622-M8*20：六角法兰面螺栓 | HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD | B00002134 | 4 |
| 23 | GB/T5783-M8*20：六角头螺栓 | HEXAGON HEAD BOLT | B00000631 | 2 |
| 24 | 加长接头 | CONNECTOR | A774ZL-19-001+A | 2 |
| 25 | GB/T5783-M8*16：六角头螺栓 | HEXAGON HEAD BOLT | B00000627 | 2 |
| 26 | GB/T93-8：弹簧垫圈 | SPRING WASHER | B00001253 | 4 |
| 27 | Q/SC622-M10*20：六角法兰面螺栓 | HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD | B00001996 | 4 |
| 28 | GB/T5783-M6*16：六角头螺栓 | HEXAGON HEAD BOLT | B00000607 | 1 |
| 29 | 接头 | CONNECTOR | A772ZL-19-007+A | 1 |
| 30 | 螺套 | TURNBUCKLE | A774Z-19-002+A | 1 |
| 31 | 油管 | INLET TUBE | A774Z-19-003+A | 1 |
| 32 | 增压器左回油管部件 | OIL RETURN PIPE ASSY (LEFT), TURBOCHARGER | A774Z-19-010+B | 1 |
| 33 | 增压器右回油管部件 | OIL RETURN PIPE ASSY TURBOCHARGER | A774Z-19-020+B | 1 |
| 34 | 垫片 | WASHER | 761-19-006A+A | 2 |
| 1 | 淡水泵 | WATER PUMP | 771-20-000B+A | 1 |
