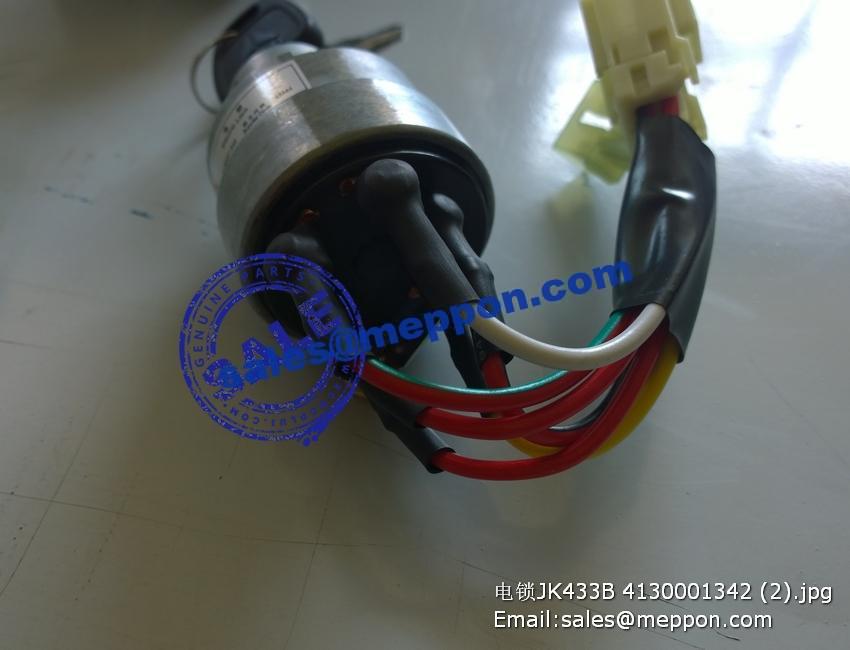

JK433B 4130001342 STARTER SWITCH SDLG LG918 WHEEL LOADER
1 29370013661 起动马达线 LINE FROM SWITCH TO MOTOR Y 1
2 4130000045 蓄电池6-QW-70 BATTERY 6-QW-70 Y 2
3 29370012521 蓄电池串联线 STORAGE BATTERY WIRE Y 1
4 29370009341 蓄电池接地线 EARTH WIRE Y 1
5 29370014391 电瓶线P50*600 BATTERY WIRE P50*600 Y 1
6 4011000461 螺栓GB16674-M8*16EpZn-8.8 BOLT GB16674-M8*16EpZn-8.8 N 8
7 4130000427 电源开关K01K18-A POWER SWITCH K01K18-A Y 1
8 4190000020 扎丝LG13-ZS4*250 CLIP LG13-ZS4*250 Y 50
9 29350000021 管夹 PIPE NIP Y 5
10 4130001287 盆型喇叭DL125-100L LOUD SPEAKER Y 1
11 4011000152 螺栓GB16674-M6*10EpZn-8.8 BOLT GB16674-M6*10EpZn-8.8 N 2
12 4130001374 前组合灯YSP-003L FRONT BIG LAMP YSP-003L Y 1
13 29370020991 前车架线束 FRONT FRAME WIRE Y 1
14 4130001373 前组合灯YSP-003R FRONT BIG LAMP YSP-003R Y 1
15 4130001286 盆型喇叭DL125-100H LOUD SPEAKER Y 1
16 29370018071 接头体 JOINT Y 1
17 4130001300 压力开关YK215B1 PRESSURE SWITCH YK215B1 Y 1
18 4130001294 隔膜式压力开关310-LGK1 PRESSURE SWITCH 310-LGK1 Y 1
19 4130000574 后尾灯XH8-124V REAR LAMP XH8-124V Y 2
20 29370021001 后车架线束 REAR FRAME WIRE Y 1
21 4130000270 后大灯SP-1031 REAR LARGE LAMP SP-1031 Y 2
22 29370021021 后罩线束 WIRE Y 1
23 4130001290 倒车蜂鸣器FM211C BACKFORWARD ALARMING Y 1
24 4130000797 前照灯QZD-2 FORWARD LIGHTING QZD-2 Y 2
25 29370016042 仪表盘ZL2-235M PANEL ZL2-235M Y 1
26 4130001342 电锁JK433B STARTER SWITCH Y 1
27 29370013561 U型螺栓 U-BOLT Y 1
28 29370013551 管夹 PIPE NIP Y 1
29 29370013541 支承板 SUPPORTING PLATE Y 1
30 4130000290 转向开关JK802A TURNING SWITCH Y 1
31 4013000028 螺母GB6170-M6EpZn-8 NUT GB6170-M6EpZn-8 N 2
32 4015000207 垫圈GB97.1-6EpZn-300HV WASHER GB97.1-6EpZn-300HV N 4
33 4015000035 垫圈GB93-6-65Mn WASHER GB93-6-65Mn N 4
34 4130000912 蓄电池继电器024-1H2T-80A BATTERY RELAY 024-1H2T-80A Y 2
35 4130000869 中间继电器024-1Z6GD2 AUXILIARY RELAY 024-1Z6GD2 Y 1
36 29370021011 仪表台线束 FANEL WIRE Y 1
37 4130001080 启动继电器JD231A-LG01 STARTUP RELAY JD231A-LG01 Y 1
38 4014000026 螺钉GB818-M6*16EpZn-4.8 SCREW GB818-M6*16EpZn-4.8 N 2
39 29370015531 启动继电器固定板 FIXED PLATE OF STARTUP RELAY Y 1
40 4011000137 螺栓GB16674-M12*20EpZn-8.8 BOLT GB16674-M12*20EpZn-8.8 N 2
41 4130001296 机油压力开关YK208B1 PRESSURE SWITCH YK208B1 Y 1
