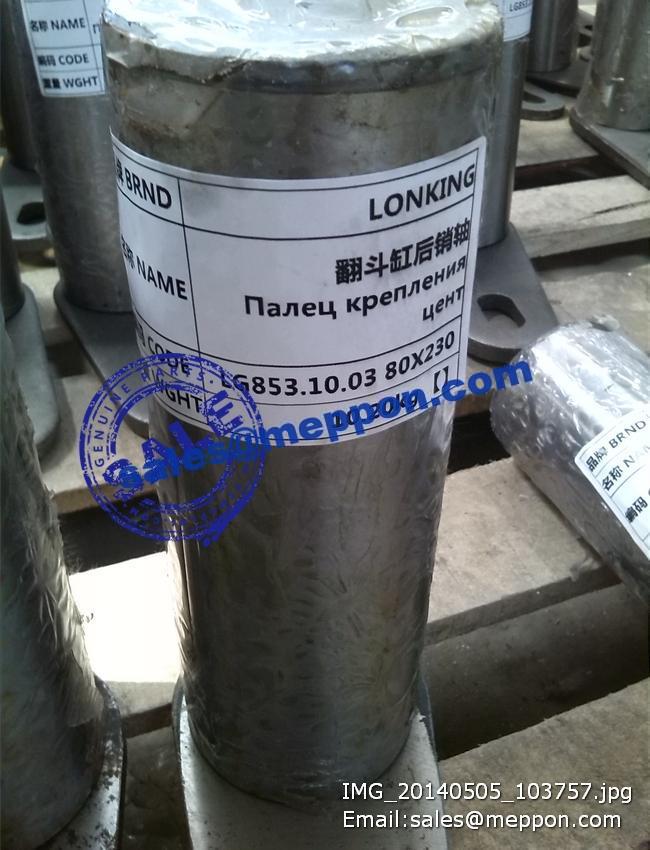

LG853.10.03 Tilt cylinder rear pin weldment cdm855 cdm860 spare parts

1 CARRIER ROLLER,51C0035 51C0035 托链轮总成188-5223-00 24
2 BOLT, 01B0513 01B0513 螺栓GB5782-86；M24×90-10.9-DK 18
3 WASHER, 06B0226 06B0226 垫圈；GB/T1230-91；24；45 18
4 TRACK ROLLER, 51C0112 51C0112 支重轮200-9173 88
5 WASHER, 06B0223 06B0223 垫圈GB/T1230-91；φ18 250
6 BOLT, 01B0020 01B0020 螺栓GB5782-86；M18×90-8.8-Zn.D 250
7 IDLER ASSY,51C0270 51C0270 引导轮总成；ASSY 24
8 TENSIONER, 44C0640 44C0640 张紧装置；ASSY 4
9 WASHER, 06B0221 06B0221 垫圈；GB/T1230-91；16；45 120
10 WASHER, 06B0221 06B0221 垫圈；GB/T1230-91；16；45 180
11 BOLT, 00B0436 00B0436 螺栓GB5783-86；M16×50-10.9-DK 30
12 SPROCKET, 46A0079 46A0079 驱动轮；STL 4
13 BOLT, 01B0489 01B0489 螺栓GB5782-86；M16×60-10.9-DK 360
14 WASHER, 06B0433 06B0433 垫圈；45 180
15 TRACK ASSY -LH, 25C0063 25C0063 加宽履带总成190ML-49380 3
16 TRACKASSY RH, 25C0063 25C0063 加宽履带总成190ML-49380 3
17 MASTER LINK-RH, 72A0388 72A0388 右链轨节175-8729 11
18 LINK LH, 72A0387 72A0387 左链轨节175-8696 10
19 LINKRH, 72A0386 72A0386 右链轨节175-8695 10
20 PIN , 60A0522 60A0522 销175-8105 20
21 MASTER LINK-LH, 72A0389 72A0389 左主链轨节 11
22 MASTER PIN, 55A0854 55A0854 主销套175-8108 26
