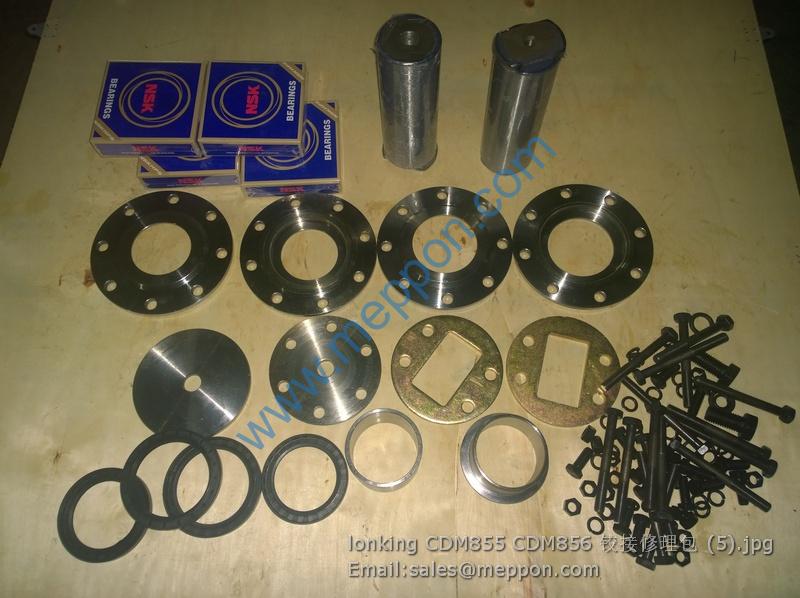

lonking CDM855 CDM856 WHEEL LOADER JOINT PIN KITS

CDM855E.10 II .01 前车架 Front frame 1
GB/T5783 螺栓 Bolt M10x20 ・8.8 4
GB/T93 垫圈 Washer 10 4
LG855.10.15 盖板总成 Cover board assembly 1
LG853.10.03 翻斗缸后销轴焊合 Tilt cylinder rear pin weldment 1
JB/T7940.1 油杯 Oil cup M10 x 1 11 GB/T1152
GB/T5783 螺栓 Bolt M20 x 40・8.8 3
GB/T93 垫圈 Washer 20 9
GB/T97.1 垫圈 Washer 20 5
CDM855E.10 II .03 动臂上销轴焊合 Lift arm upper pin weldment 2 LG50F.10005-005A
LG855.10.06 动臂缸后销轴焊合 Lift cylinder rear pin weldment 2 LG50F.10007・008A
LG855.10.07 后转向销轴焊合 Rear steering pin weldment 2 LG50F.10011
LG855.10-002 转向缸后垫套 Rear sleeve for steering cylinder 2 LG50F.10013A
GB/T5783 螺栓 Bolt M16 x 35・8.8 4
GB/T93 垫圈 Washer 16 12
LG855.10.08 油箱固定座 Oil tank securing seat 2 LG50E.10001 ・002A
CDM855E.10 II .02 后车架 Rear frame 1
GB/T5783 螺栓 Bolt M20 x 35・8.8 6

LG855.10-003 双变滤清器支架 Filter screen 1 510009C
LG855.10.03 副车架 Oscillating suspension 1 LG50F.10300B
LG853.10-018 挡块 Block 8 410002B
LG855.10-004 铜垫 Coppergasket 2 LG50F.10035A
LG855.10-008 副车架调整垫 Oscillating suspension adjusting 1 选装件shim
LG855.10.09 副车架销 Oscillating suspension pin 2 LG50F.10033・034A
LG855.10.10 副车架注油管1 Oscillating suspension oil filling 1 LG50F.10042・042A pipe I
GB/T5782 螺栓 Bolt M12 x 110・8.8 16
GB/T93 垫圈 Washer 12 30
GB/T6170 螺母 Nut M12 ・8 16
GB/T297・1994 轴承 Bearing 32215(7515E) 4
LG853.10-008 端盖 End cover 1 510014C
LG853.10-007 较接销 Articulated pin 2 510012C
LG853.10-006 压板 Press plate 2 510011C
GB/T13871 -1992 FB形油封 FB-type oil seal 75 x 100 x 12 2
LG853.10 III-003 上轴承盖 Upper bearing cover 2 510013C

LG853.10 III-002 下轴承盖 Lower bearing cover 2 510015C
LG853.10 111-001 调整垫 Adjusting shim 二组 510018C
LG853.10-001 上轴套 Upper shaft sleeve 1 LG50F.10020A
LG853.10-002 下轴套 Lower shaft sleeve 1 510017C
GB/T13871 -1992 FB形油封 FB-type oil seal 85 x 110 x 12 2
GB/T5783 螺栓 Bolt M12 x 30・8.8 14
LG855.10.11 前转向销轴焊合 Front steering pin weldment 2 LG50F.10015 ・016A
LG855.10.12 右前转向销注油管 Right front steering pin oil filling pipe 1 LG50F.10018 ・018A
LG855.10.13 左前转向销注油管 Left front steering pin oil filling pipe 1
LG853.10-021 胶管保护套 Hose guard sheath 2 510150C
LG855.10-006 调整垫圈 Adjusting washer 一组
JB/T7940.2-1995 油杯 Oil cup M10 x 1 2 GB/T1153
GB/T5783 螺栓 Bolt M16 x 50・8.8 4
LG855.10.14 副车架注油管2 Oscillating suspension oil filling 2 1 LG50F.10041 ・041A pipe II
LG855.10-007 副车架销轴套 Oscillating suspension pin sleeve 2 LG50F.10032A
LG853.10-023 线夹 Wire clip 2
GB/T5783 螺栓 Bolt M8 x 20・8.8 4

GB/T93 垫圈 Washer 8 4
GB/T97.1 垫圈 Washer 8 4
LG853.10-022 下端盖 Lower end cover 1
CDM858A.10 I ・001 后车架橡胶护套 Rubber bush of rear frame 5
CDM855E.10 II ・001 蜂鸣器固定板 Buzzer securing board 1
LG855.10I-001 垫板 Backing plate 2

LG856.10Ⅱ.01 前车架 Front frame 1
GB/T5783 螺栓 M10×20 Bolt M10×20 4
GB/T93 垫圈 10 Washer 10 4
LG855.10-001 盖板 Cover board 1 LG855.10001A
LG855.10.04 翻斗缸后销轴焊合 Tilt cylinder rear pin weldment 1 LG50F.10002-003A
JB/T7940.1-1995 油杯 M10×1 Oil cup M10×1 11 GB/T1152
GB/T5783 螺栓 M20×30 Bolt M20×30 9
GB/T93 垫圈 20 Washer 20 9
GB/T97.1 垫圈 20 Washer 20 7
LG855.10.05 动臂上销轴焊合 Lift arm upper pin weldment 2 LG50F.10005-005A
LG855.10.06 动臂缸后销轴焊合 Lift cylinder rear pin weldment 2 LG50F.10007-008A
LG855.10.07 后转向销轴焊合 Rear steering pin weldment 2 LG50F.10011-012A
LG855.10-002 转向缸后垫套 Steering cylinder rear tray 2 LG50F.10013A
GB/T5783 螺栓 M16×35 Bolt M16×35 4
GB/T93 垫圈 16 Washer 16 12
LG855.10.08 油箱固定座 Oil tank bracket 2 LG50E.10001-002A
LG856.10Ⅰ.02 后车架 Rear frame 1
LG856.10.02 后车架 Rear frame 1
LG855.10-003 双变滤清器支架 Oil filter bracket 1 510009C
LG855.10.03 副车架 Oscillating suspension 1 LG50F.10300B
LG853.10-018 挡块 Block 8 410002B
LG855.10-004 铜垫 Copper pad 2 LG50F.10035A

LG855.10.09 副车架销 Oscillating suspension pin 2 LG50F.10033-034A
LG855.10.10 副车架注油管 1 Oscillating suspension oil filling pipe 1
LG50F.10042-042A
GB/T5782 螺栓 M12×110 Bolt M12×110 8
GB/T93 垫圈 12 Washer 12 22
GB/T6170 螺母 M12 Nut M12 8
GB/T297-1994 轴承 32215 Bearing 32215 4 GB297-84 7515E
LG853.10-008 端盖 End cover 1 510014C
LG853.10-007 铰接销 Articulating pin 2 510012C
LG853.10-006 压板 Press plate 2 510011C
GB/T13871-1992 FB 形油封 75×100×12 FB-type seal 75×100×12 2
LG853.10-005 上轴承盖 Upper bearing cover 2 510013C
LG853.10-004 下轴承盖 Lower bearing cover 2 510015C
LG853.10-003 调整垫 Adjusting spacer 2sets 510018C
LG853.10-001 上轴套 Upper shaft sleeve 1 LG50F.10020A
LG853.10-002 下轴套 Lower shaft sleeve 1 510017C
GB/T13871-1992 FB 形油封 85×110×12 FB-type seal 85×110×12 2
GB/T5783 螺栓 M12×30 Bolt M12×30 14
LG855.10.11 前转向销轴焊合 Front steering pin weldment 2 LG50F.10015-016A
LG855.10.12 右前转向销注油管 Right front steering pin oil filling pipe
LG50F.10018-018A
LG855.10.13 左前转向销注油管 Left front steering pin filling pipe 1
LG855.10-006 调整垫圈 Adjusting washer 1set

JB/T7940.2-1995 油杯 M10×1 Oil cup M10×1 2 GB/T1153
GB/T5783 螺栓 M16×50 Bolt M16×50 4
LG855.10.14 副车架注油管 2 Oscillating suspension oil filling pipe 2

LG50F.10041-041A
LG855.10-007 副车架销轴套 Oscillating suspension pin sleeve 2 LG50F.10032A
LG853.01-005 线夹 Wiring clip 2 LG50D.15008B
GB/T5783 螺栓 M8×20 Bolt M8×20 3
GB/T93 垫圈 8 Washer 8 3
GB/T97.1 垫圈 8 Washer 8 3
LG853.10-022 下端盖 Lower end cover 1
