Description

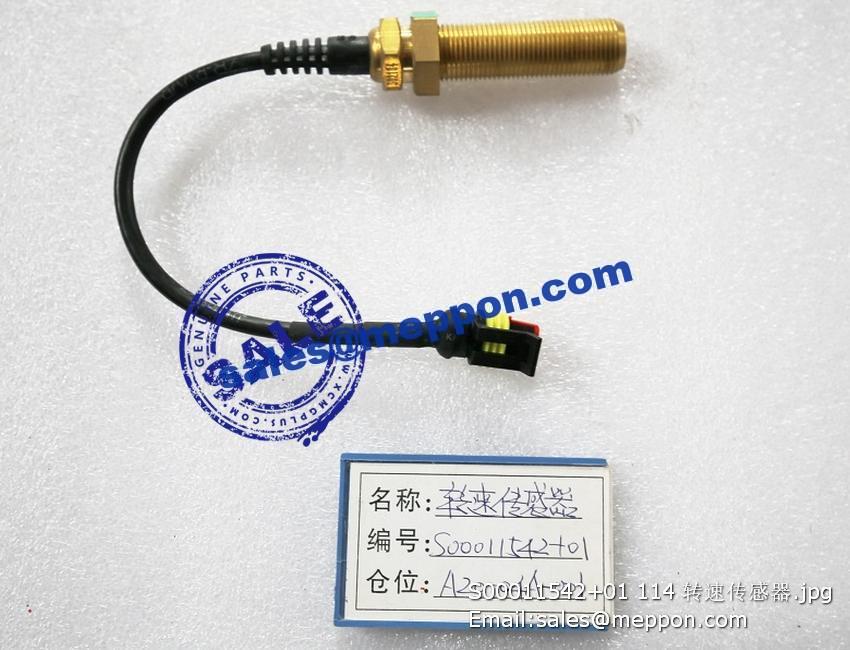

S00011542+01 114 SPEED SENSOR

1 S00001515 定位套 DOWEL SLEEVE 2
2 S00010040 机油冷却器垫片 GASKET, OIL COOLER 1
3 S00010429 机油冷却器部件 OIL COOLER ASSY 1
4 S00002109 内六角螺塞 HEXAGONAL SOCKET HEAD PLUG 2
5 S00002412 机油滤清器座密封圈 OIL COOLER BASE SEALING RING 2
6 S00002504 机油冷却器旁通阀装配部件 BYPASS VALVE ASSY, OIL COOLER 2
7 B00001552 复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET 1 Q/SC1294-24
8 G18-102-01 主油道调压阀体 BODY, PRESSURE REGULATING VALVE-OIL GALLEY 1
9 S00007597 铜垫圈 COPPER WASHER 2
10 S00007596 内六角螺塞 HEXAGONAL SOCKET HEAD PLUG 2
11 B00001300 平垫圈 PLAIN WASHER 8 GB/T97.1-8-200HV-ZN.D
12 B00001253 弹簧垫圈 SINGLE COIL SPRING LOCK WASHERS, NORMAL TYPE 8 GB/T93-8
13 B00001236 盖形螺母 ACORA NUTS 8 GB/T923-M8
14 S00010045 O型橡胶密封圈 O-RING 2
15 S00010326 机油冷却器管接头 JOINT, WATER PIPE-OIL COOLER 1
16 B00002134 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 5 Q/SC622-M8*20
17 S00010055 出水管焊接部件 WATER OULET TUBE ASSY (WELDED) 1
18 B00002007 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M10*40
19 S00010046 O型橡胶密封圈 O-RING 1
20 B00004665 双头螺柱 STUD 2 GB/T899-GM10-M10*85-8.8-ZN.D
21 B00000833 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 2 GB/T6177-M10-Y
22 B00001275 平垫圈 PLAIN WASHER 1 GB/T97.1-10-200HV-Y
23 B00001237 弹簧垫圈 SINGLE COIL SPRING LOCK WASHERS, NORMAL TYPE 1 GB/T93-10
24 B00000412 六角头螺栓 HEXAGON HEAD BOLT 1 GB/T5782-M10*90
25 B00004890 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 8 GB/T16674.1-M10*85-10.9-F
26 B00001993 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 3 Q/SC622-M10*130
27 B00001999 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M10*25
28 B00002001 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 6 Q/SC622-M10*30
29 B00002137 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M8*25
30 S00009462 机油滤清器支架 OIL FILTER BRACKET 1
31 B00001996 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M10*20
32 S00011528 机油滤清器座部件 BASE ASSY, OIL FILTER 1
33 G17-104-01 空心螺套 THREADED SLEEVE 2
34 S00009442 机油滤清器座密封圈 OIL FILTER BASE GASKET 1
35 B00002136 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 5 Q/SC622-M8*20-ZN.D
36 B00000846 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 2 GB/T6177-M8-Y
37 D17-002-02 机油滤清器部件 OIL FILTER ASSY 2
38 G15-123-01 垫片 GASKET 2
39 S00005249 机油泵部件 OIL PUMP ASSY 1
40 B00002161 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M8*70
41 B00002158 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M8*65
42 G19-102-01 垫片 GASKET 1
43 G19-007-01 机油泵吸油管焊接部件 PIPE ASSY (WELDED), OIL SUCTION PUMP 1
