Description

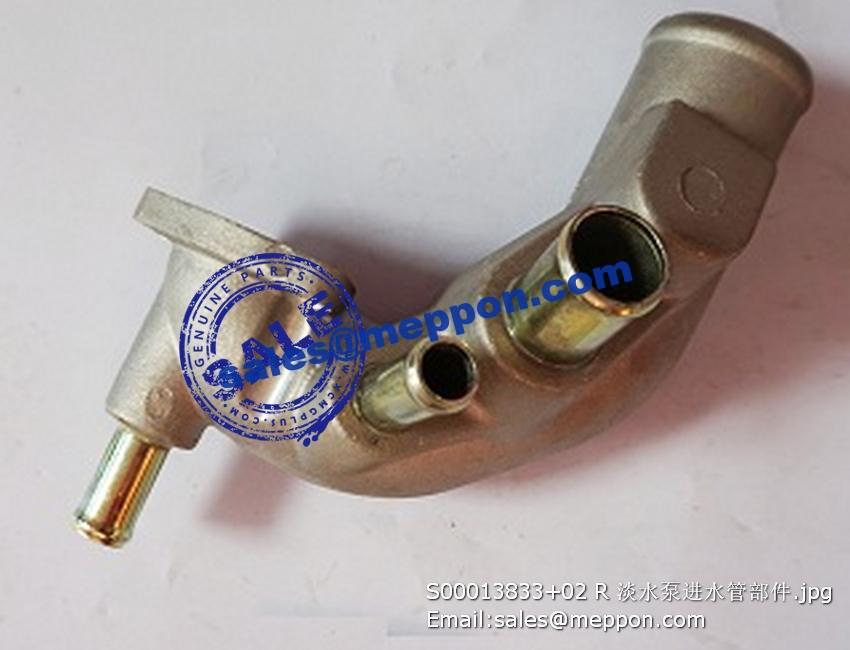

S00013833+02 R water hose
1 B00002146 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M8*40-ZN.D
2 中冷器进气接管维修组件 AIR INLET PIPE, INTERCOOLER SERVICE GROUP 1
S00009067 中冷器进气接管 AIR INLET PIPE, INTERCOOLER 1
3 S00009955 中冷器进气管垫片 GASKET, INTERCOOLER AIR INLET PIPE 1
4 S00009415 进气管盖垫片 GASKET, AIR INTAKE PIPE COVER PLATE 4
5 B00000847 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 10 GB/T6177-M8-ZN.D
6 S00009089 接管安装板立柱 SUPPORT, PIPE FIXING PLATE 4
7 B00002134 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 18 Q/SC622-M8*20
8 S00012898 夹箍 CLAMP 4
9 S00012880 中冷器出气接管安装板 FIXING FLANGE, INTERCOOLER AIR OUTLET PIPE 1
10 S00012872 夹箍 CLAMP 2
11 进气管左支架维修组件 INTAKE TUBE BRACKET(LEFT) SERVICE GROUP 2
S00012873 进气管左支架 INTAKE TUBE BRACKET(LEFT) 1
12 S00012911 右进气总管 COMPRESSOR AIR OUTLET PIPE (RIGHT) 1
13 B00001543 弹簧卡箍 SPRING CLAMP 6 Q/SC1092-90
14 S00017180 进气管橡胶连接管 AIR INTAKE HOSE 3
15 S00012905 左进气总管 COMPRESSOR AIR OUTLET PIPE (LEFT) 1
16 B00002137 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 8 Q/SC622-M8*25
17 进气接管维修组件 ADAPTER, AIR INTAKE PIPE SERVICE GROUP 1
S00009063 进气接管 ADAPTER, AIR INTAKE PIPE 1
18 B00000833 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 24 GB/T6177-M10-Y
19 B00001100 双头螺柱 STUD 24 GB/T899-GM10-M10*30-8.8-Y
20 进气管维修组件 AIR INTAKE PIPE SERVICE GROUP 2
S00008945 进气管 AIR INTAKE PIPE 1
21 761G-04-014B 进气管垫片 GASKET, AIR INTAKE PIPE 12
22 S00012881 压气机出气管支架 COMPRESSOR OUTLET PIPE BRACKET 1
23 B00002132 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M8*16
24 B00002131 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 16 Q/SC622-M8*12-ZN.D
25 S00009139 左排气管隔热罩 HEAT SHIELD, EXHAUST MANIFOLD(LEFT) 1
26 S00015381 接头 CONNECTOR 4
27 左后排气管维修组件 EXHAUST PIPE (LEFT) SERVICE GROUP 1
S00009130 左后排气管 EXHAUST PIPE (LEFT) 1
28 S00009520 排气管垫片 GASKET, EXHAUST MANIFOLD 12
29 左排气管维修组件 EXHAUST MANIFOLD, LEFT SERVICE GROUP 1
S00009108 左排气管 EXHAUST MANIFOLD, LEFT 1
30 S00009240 垫片 GASKET 1
31 增压器左支架维修组件 BRACKET (LEFT), TURBOCHARGER SERVICE GROUP 1
S00011993 增压器左支架 BRACKET (LEFT), TURBOCHARGER 1
32 761Z-13-007A 垫片 GASKET 2
33 S00009959 右排气管隔热罩 HEAT SHIELD, EXHAUST MANIFOLD(RIGHT) 1
34 右后排气管维修组件 REAR EXHAUST PIPE, RIGHT SERVICE GROUP 1
S00009122 右后排气管 REAR EXHAUST PIPE, RIGHT 1
35 右排气管维修组件 EXHAUST MANIFOLD, RIGHT SERVICE GROUP 1
S00009105 右排气管 EXHAUST MANIFOLD, RIGHT 1
36 D13-103-01 双头螺栓 STUD 36
37 D13-304-01 增压器接口螺母 NUT, FLANGE-TURBOCHARGER 56
38 S00009241 垫片 GASKET 1
39 增压器右支架维修组件 BRACKET (RIGHT), TURBOCHARGER SERVICE GROUP 1
S00012287 增压器右支架 BRACKET (RIGHT), TURBOCHARGER 1
40 C38AL-38AL001 双头螺栓 STUD 20
41 B00001693 内六角锥形螺塞 INNER HEXAGON TAPERED SCREW PLUG 4 Q/SC584.1-R1/2
