Description

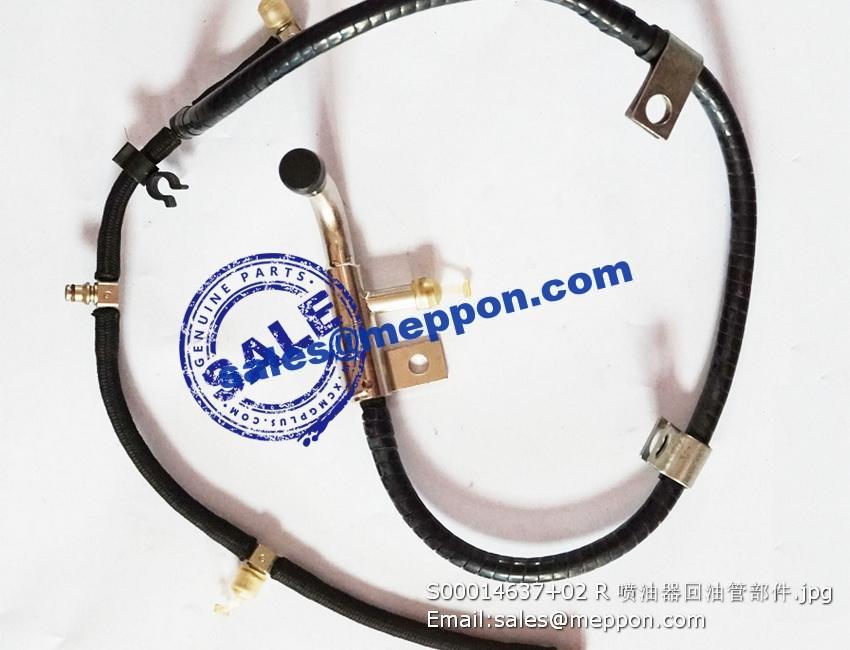

S00014637+02 R injector hose

1 B00004373 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 GB/T16674.1-M8*50
2 B00005129 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 GB/T16674.1-M8*85-10.9-HDAC
3 右水泵出水管维修组件 OUTLET PIPE, RIGHT WATER PUMP SERVICE GROUP 1
S00010048 右水泵出水管 OUTLET PIPE, RIGHT WATER PUMP 1
4 S00010058 水泵出水口垫片 GASKET 2
5 B00001579 喉箍 CLAMP 8 Q/SC1302-60~83
6 B00002439 橡胶水管 RUBBER HOSE, WATER 4 Q/SC646-64*100
7 B00004351 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 26 GB/T16674.1-M10*25
8 机油冷却器进水管(右)维修组件 WATER INLET PIPE（RIGHT）, OIL COOLER SERVICE GROUP 1
S00015255 机油冷却器进水管(右) WATER INLET PIPE（RIGHT）, OIL COOLER 1
9 S00010122 机冷器出口垫片 GASKET 4
10 D17-002-02 机油滤清器部件 OIL FILTER ASSY 2
11 机油冷却器出水管维修组件 WATER OUTLET PIPE, OIL COOLER SERVICE GROUP 2
S00014916 机油冷却器出水管 WATER OUTLET PIPE, OIL COOLER 1
12 机体右进水管维修组件 WATER INLET PIPE (RIGHT) SERVICE GROUP 1
S00014915 机体右进水管 WATER INLET PIPE (RIGHT) 1
13 S00010042 机体进水管垫片 GASKET 2
14 B00004890 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 GB/T16674.1-M10*85-10.9-F
15 B00004630 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 12 GB/T16674.1-M10*80-10.9
16 S00015438 右机油冷却器部件 OIL COOLER ASSEMBLY (RIGHT) 1
17 B00001699 内六角锥形螺塞 INNER HEXAGON TAPERED SCREW PLUG 9 Q/SC584.1-R3/4
18 G17-104-01 空心螺套 TURNBUCKLE 2
19 B00004669 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 16 GB/T16674.1-M10*105-ZN.D
20 S00010098 O型橡胶密封圈 O-RING 8
21 S00015147 机油冷却器垫片 GASKET, OIL COOLER 2
22 S00001515 定位套 DOWEL SLEEVE 4
23 S00010099 矩形橡胶密封圈 RECTANGLE RUBBER SEALING RING 2
24 S00015437 左机油冷却器部件 OIL COOLER ASSEMBLY (LEFT) 1
25 左水泵出水管维修组件 OUTLET PIPE, LEFT WATER PUMP SERVICE GROUP 1
S00016672 左水泵出水管 OUTLET PIPE, LEFT WATER PUMP 1
26 B00005115 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 3 GB/T16674.1-M8*25-10.9-HDAC
27 机油冷却器进水管(左)维修组件 WATER INLET PIPE（LEFT）, OIL COOLER SERVICE GROUP 1
S00015254 机油冷却器进水管(左) WATER INLET PIPE（LEFT）, OIL COOLER 1
28 机体左进水管维修组件 WATER INLET PIPE (LEFT) SERVICE GROUP 1
S00014914 机体左进水管 WATER INLET PIPE (LEFT) 1

1 B00000131 圆柱销 PARALLEL PINS 2 GB/T119-A8*22
2 771-15-012 垫片 GASKET 2
3 771-15-006 调整垫片 GASKET 4
4 S00009486 机油泵部件 OIL PUMP ASSY 1
5 B00002001 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M10*30
6 吸油管维修组件 OIL SUCTION PIPE SERVICE GROUP 1
S00008949 吸油管焊接部件 OIL SUCTION PIPE ASSY (WELDED) 1
7 S00008960 吸油管法兰垫片 GASKET, PIPE FLANGE-OIL SUCTION PUMP 1
8 B00004355 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 GB/T16674.1-M10*45
9 B00000843 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 1 GB/T6177-M6-Y
10 S00008951 吸油管挂架 LIFTER, OIL SUCTION 1
11 B00002114 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M6*16
12 B00002132 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M8*16
13 S00026341 油尺装配部件 OIL DIPSTICK ASSY 1
14 B00001565 喉箍 CLAMP 2 Q/SC1302-18~32
15 S00021573 油底壳焊接部件 OIL PAN ASSY (WELDED) 1
16 771-03-003 垫铁 GASKET 2
17 B00002134 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 36 Q/SC622-M8*20
18 771-03-002 垫铁 GASKET 2
19 B00001716 方头锥形螺塞 TAPPERED SCREW PLUG OF SQUARE TOES 1 Q/SC585-R1/2
20 B00001721 方头锥形螺塞 SQUARE HEAD CONE PLUG SCREW 1 Q/SC585-R1/A1
21 内六角螺塞维修组件 HEXAGONAL SOCKET HEAD PLUG SERVICE GROUP 1
B00001707 内六角螺塞 HEXAGONAL SOCKET HEAD PLUG 1 Q/SC584.2-M22*1.5
22 B00001839 铜垫圈 COPPER WASHER 1 Q/SC598-22*28
23 S00021574 橡胶管 HOSE 1
