Description

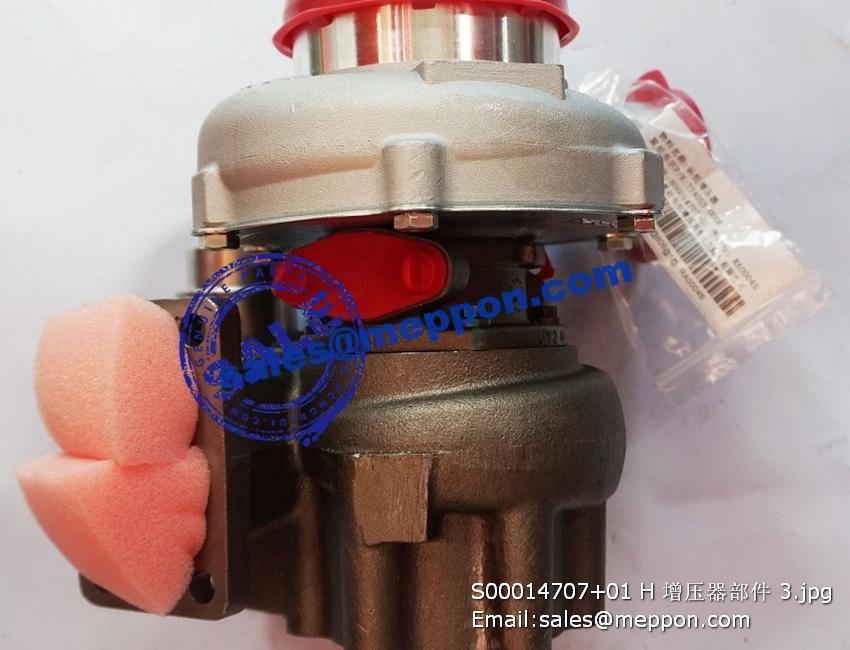

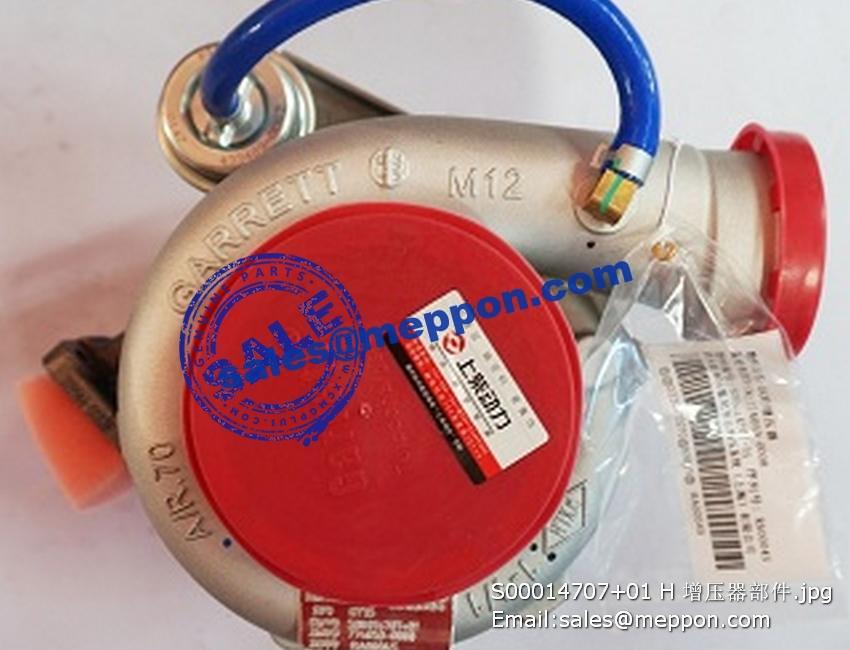

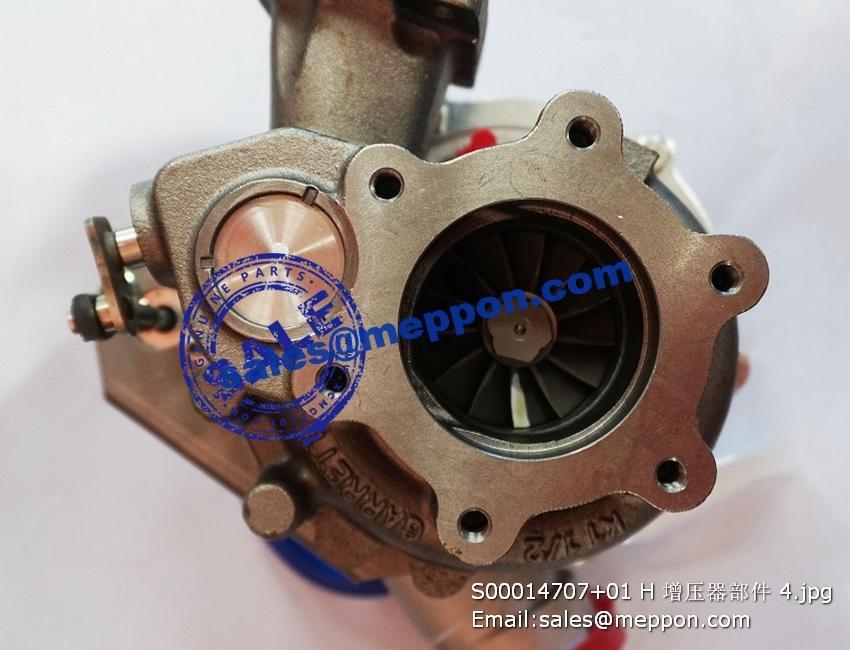

S00014707+01 H turbocharger
1 B00000773 I型六角螺母 HEXAGON NUTS, STYLE 1 16 GB/T6170-M12-ZN.D
2 B00001240 弹簧垫圈 SINGLE COIL SPRING LOCK WASHERS, NORMAL TYPE 16 GB/T93-12-Zn.D
3 B00001279 平垫圈 PLAIN WASHER 16 GB/T97.1-12-200HV-ZN.D
4 B774ZL-13-030 波形膨胀节 EXPANSION CONNECTOR 2
5 D13-108-50 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 12
6 S00003525 排气管双头螺栓 EXHAUST MANIFOLD STUD 12
7 B00000429 六角头螺栓 HEXAGON HEAD BOLT 16 GB/T5782-M12*45-ZN.D
8 排气弯管维修组件 EXHAUST ELBOW SERVICE GROUP 2
S00013640 排气弯管 EXHAUST ELBOW 1
9 S00014562 涡轮出口垫片 GASKET, OUTLET-TURBINE 2
10 S00020298 增压器部件 TURBOCHARGER ASSY 1
11 B00001997 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M10*20-10.9
12 B00002114 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M6*16
13 D19-003-01A 夹箍 CLAMP 4
14 B00000843 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 2 GB/T6177-M6-Y
15 增压器回油管维修组件 OIL RETURN PIPE , TURBOCHARGER SERVICE GROUP 1
S00012776 增压器回油管焊接部件 OIL RETURN PIPE ASSY (WELDED), TURBOCHARGER 1
16 S00001805 增压器回油管垫片 TURBOCHARGER OIL RETURN TUBE GASKET 2
17 D02A-172-900 O型橡胶密封圈 O-RING 4
18 B00002179 铰接螺栓 HINGE BOLT 2 Q/SC642.1-01-M14*1.5
19 增压器进油管维修组件 OIL INLET PIPE, TURBOCHARGER SERVICE GROUP 1
S00012778 增压器进油管焊接部件 OIL INLET PIPE ASSY (WELDED), TURBOCHARGER 1
20 B00001823 铜垫圈 COPPER WASHER 7 Q/SC598-14*18
21 771Z-17-001A 接头螺钉 JOINT SCREW 1
22 B00001583 喉箍 CLAMP 4 Q/SC1302-78~101
23 S00014893 增压器进气连接管 COMPRESSOR INLET PIPE 2
24 S00014887 增压器进气管 AIR INLET PIPE, TURBOCHARGER 2
25 B00001562 喉箍 CLAMP 4 Q/SC1302-143~165
26 S00014896 空滤器橡胶出气管 AIR FILTER OUTLET HOSE 1
27 KLB-14G-000 空滤器组件 AIR FILTER GROUP 2
28 B00001996 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M10*20
29 S00010941 固定块 FIXING BLOCK 1
30 B00002221 铰接螺栓 BANJO BOLT 1 Q/SC642.3-1-M10*1*25
31 油管维修组件 OIL PIPE SERVICE GROUP 1
B774ZL-19-002 油管 OIL PIPE 1
32 B00001814 铜垫圈 COPPER WASHER 2 Q/SC598-10*16
33 增压器回油管维修组件 OIL RETURN PIPE , TURBOCHARGER SERVICE GROUP 1
S00012775 增压器回油管焊接部件 OIL RETURN PIPE ASSY (WELDED), TURBOCHARGER 1
34 S00020297 增压器部件 TURBOCHARGER ASSY 1
35 增压器进油管维修组件 OIL INLET PIPE, TURBOCHARGER SERVICE GROUP 1
S00012777 增压器进油管焊接部件 OIL INLET PIPE ASSY (WELDED), TURBOCHARGER 1
36 S00014895 空滤器橡胶出气管 AIR FILTER OUTLET HOSE 1
37 B00002137 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 20 Q/SC622-M8*25
38 S00009119 空滤器支架连接板 CONNECTING PLATE, ARI FILTER BRACKET 1
39 S00009096 空滤器支架 AIR FILTER BRACKET SUPPORT 2
40 B00000847 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 12 GB/T6177-M8-ZN.D
41 B00002132 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 8 Q/SC622-M8*16
42 B00001891 小六角螺母 SMALL HEXAGONAL NUT 24 Q/SC610.1-M8
43 B00001253 弹簧垫圈 SINGLE COIL SPRING LOCK WASHERS, NORMAL TYPE 24 GB/T93-8
44 B00001136 双头螺柱 STUD 24 GB/T899-GM8-M8*20-8.8-Y
45 气缸盖右出水管维修组件 WATET OUTLET PIPE（RIGHT SIDE），CYLINDER HEAD SERVICE GROUP 1
S00009378 气缸盖右出水管焊接部件 WATET OUTLET PIPE WELDING （RIGHT SIDE），CYLINDER HEAD 1
46 S00009825 气缸盖出水管垫片 WATER OUTLET PIPE GASKET, CYLINDER HEAD 12
47 B00001693 内六角锥形螺塞 INNER HEXAGON TAPERED SCREW PLUG 2 Q/SC584.1-R1/2
48 S00026185 调温器部件 THERMOSTAT ASSY 2
49 B00001575 喉箍 CLAMP 4 Q/SC1302-52~76
50 S00009971 水泵进水橡胶管 INLET HOSE, WATER PUMP 2
51 S00014898 水泵进水连接管 INLET PIPE, WATER PUMP 2
52 B00001573 喉箍 CLAMP 4 Q/SC1302-40~64
53 B00002391 橡胶水管 RUBBER HOSE, WATER 2 Q/SC646-45*100
54 B00004351 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 GB/T16674.1-M10*25
55 S00014899 水泵进水接管 WATER PUMP INLET CONNECTING TUBE 2
56 S00009972 水泵进水管垫片 WATER PUMP INLET TUBE GASKET 2
57 气缸盖左出水管维修组件 WATET OUTLET PIPE（LEFT SIDE），CYLINDER HEAD SERVICE GROUP 1
S00009380 气缸盖左出水管焊接部件 WATET OUTLET PIPE WELDING （LEFT SIDE），CYLINDER HEAD 1
