Description

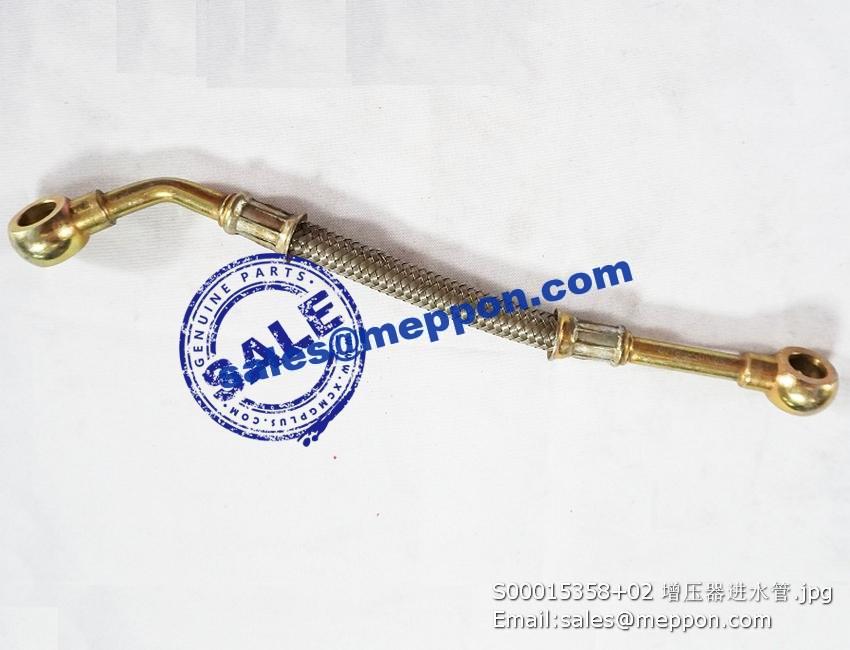

S00015358+02 turbocharger water inlet pipe
1 2 B00002098 六角法兰面螺栓 BOLT 2
2 2 B00004819 六角法兰面螺栓 BOLT 1
3 2 A774ZL-11-001+A 起动电机 STARTING MOTOR 1
4 2 B00000958 标牌铆钉 NAMEPLATE RIVET 2
5 2 771-02-032+A 转向标牌 STEERING NAMEPLATE 1
6 2 B00002132 六角法兰面螺栓 BOLT 2
7 2 A745ZA-02-001+A 指针盖板 FINGER PLATE 1
8 2 B00002111 六角法兰面螺栓 BOLT 1
9 2 771-02-033+A 指针 FINGER 1
10 F/1401 飞轮壳维修组件 FLYWHEEL HOUSING SERVICE GROUP 1
2 S00010028+04 飞轮壳 1
11 2 771-02-012+B 飞轮壳垫片 FLYWHEEL HOUSING GASKET 1
12 2 S00010089+01 曲轴后油封 CRANKSHAFT REAR SEAL 1
13 2 B00001728 六角头螺塞 HEXAGON PIPE PLUG 1
14 2 B00000953 吊环螺钉 LIFTING SCREW 1
15 2 S00011410+01 转速传感器 ENGINE SPEED SENSOR 1
16 2 B00000198 六角法兰面螺栓 BOLT 12
17 2 S00010172+02 飞轮齿圈装配部件 FLYWHEEL AND RING GEAR ASSY (ASSEMBLED) 1
18 3 771-06-003A+A 起动齿圈 RING GEAR 1
3 S00010171+02 飞轮 1
19 2 B774ZLA-06-013+A 飞轮螺栓 FLYWHEEL BOLT 8
1 F/1401 活塞维修组件 PISTON SERVICE GROUP 12
2 S00009615+05 活塞 12
2 F/1401 活塞环维修组件 PISTON RING SERVICE GROUP 12
2 S00009738+01 梯形桶面环 12
2 G05-108-03+B 内切锥面环 12
2 G05-002-03+B 油环部件 12
3 G05-109-03+A 油环体 1
3 G05-110-03+A 油环涨簧 1
3 G05-111-03+A 锁口钢丝 1
3 2 A761-05-005+A 锁簧 SPRING LOCK 24
4 2 A761-05-004+A 活塞销 PISTON PIN 12
5 2 S00010676+02 连杆机加工部件 CONNECTING ROD ASSY (MACHINED) 12
3 S00010674+02 涨断连杆 1
3 S00010680+02 连杆衬套 1
6 3 S00010783+02 连杆螺栓 CONNECTING ROD BOLT 2
7 2 B774ZLA-05-002+B 连杆轴瓦 BEARING, CONNECTING ROD 24
8 3 B774ZL-06-006+A 前轴 FRONT BEARING 1
9 2 B00000055 半圆键 WOODRUFF KEY 1
10 2 B00000041 普通平键 FLAT KEY 1
11 3 A774ZL-06-009+A 连接螺钉 BOLT 1
12 3 A774ZL-06-004+A 连接螺钉 BOLT 2
13 3 A774ZL-06-011+A 定位螺钉 BOLT 3
14 2 B00004362 六角法兰面螺栓 BOLT 6
15 2 B774ZLA-06-050+A 减震器部件 NATURAL GAS CRANKSHAFT DAMPER ASSY 1
16 2 S00009746+01 曲轴前端带轮 PULLEY, CRANKSHAFT 1
17 2 771-06-022+A 垫片 GASKET 1
18 2 771-06-021A+A 压紧螺钉 BOLT 1
19 3 S00010187+02 曲轴后端与法兰连接螺钉 BOLT 2
20 2 B00000106 圆柱销 PIN 1
21 F/1401 曲轴后端法兰维修组件 CRANKSHAFT REAR FLANGE SERVICE GROUP 1
3 S00010234+04 曲轴后端法兰 1
22 3 B774ZLA-06-011+A 密封圈 SEALING RING 2
23 3 B774ZLA-06-002+A 圆柱滚子轴承 ROLLER BEARING 1
24 3 S00010229+01 曲拐油管部件 OIL PIPE ASSY, CRANK 1
4 S00010238+01 曲拐 1
25 3 B00000102 圆柱销 PIN 1
26 4 761G-06-013A+A 油管 OIL FILLER TUBE 2
27 3 S00010186+01 曲轴后端与法兰连接螺钉 BOLT 5
28 3 S00010184+01 双头螺柱 STUD 1
29 3 B774ZL-06-003+A 螺母 NUT 32
30 3 A774ZL-06-017+A 圆柱滚子轴承 ROLLER BEARING 6
31 3 B774ZLA-06-030+A 曲拐油管装配部件 CRANK OIL TUBE ASSY (ASSEMBLED) 5
4 B774ZLA-06-003+A 曲拐 1
26 4 761G-06-013A+A 油管 OIL FILLER TUBE 2
32 3 B774ZL-06-002+A 定位螺钉 BOLT 15
33 3 B774ZL-06-001+A 连接螺钉 BOLT 6
34 3 B774ZL-06-009+A 螺母 NUT 2
35 3 B774ZL-06-008+A 连接螺栓 BOLT 1
36 3 A774ZL-06-006+A 连接螺柱 BOLT 2
2 S00010206+01 曲轴装配部件 1
