Description

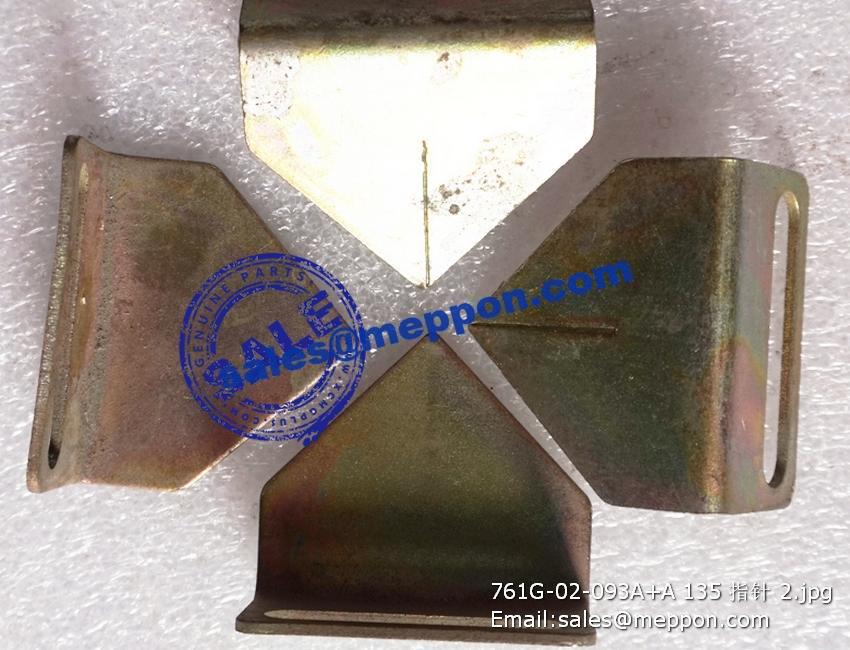

SHANGCHAI 6135K POINTER 761G-02-093A+A PS07084

S00002080 O型橡胶密封圈 O-RING 1
S00006121 圆柱销 DOWEL, PIN 3
S00002092 定位销 DOWEL PIN 2
B00004575 闷头 PLUG – Q72230 1
B00004577 闷头 PLUG – Q72240 11
S00005832 机油压力传感器 OIL PRESSURE SENSOR ASSY 1
S00003660 主轴承螺栓 BOLT, MAIN BEARING 14
B00002011 六角法兰面螺栓 SIX ANGLE BOLT FLANGE – Q/SC622-M10*45-10.9 24
S00001515 定位套 DOWEL SLEEVE 6
B00004647 内六角锥形螺塞 PLUG SCREW – Q61902 1
B00004646 内六角锥形螺塞 PLUG SCREW – Q61901 1
B00000896 内六角圆柱头螺钉 HEXAGON SOCKET HEAD CAP SCREW – GB/T70.1-M6*10 1
S00021857 活塞冷却喷嘴部件 ORIFICE ASSY, PISTON COOLING JET – GB/T308-6.35 1
S00002431 缸套封水圈 SEAL, CYLINDER LINER – GB/T308-6.35 12
B00004574 内六角锥形螺塞 PLUG SCREW – Q61910 1
B00001830 铜垫圈 COPPER WASHER – Q/SC598-18*22 1
B00001818 铜垫圈 COPPER WASHER – Q/SC598-12*16 1
S00019385 油尺及油尺管部件 OIL DIPSTICK AND TUBE ASSY 1
S00004601 缸套 CYLINDER LINER 6
B00004383 钢球 STEEL BALL – GB/T308-12 2
S00014800 油压传感器过渡接头 JOINT ADAPTER, OIL PRESSURE SENSOR 1
S00020040 转子滤孔盖板部件 OIL CENTRIFUGAL FILTRATION COVER ASSEMBLY 1
B00001545 复合式密封硬垫圈 RUBBER COATED HARD WASHER – Q/SC1294-10 1
S00022782 机体机加工部件 CYLINDER BLOCK ASSY (MACHINED) 1
B00001999 六角法兰面螺栓 HEXAGON BOLTS – Q/SC622-M10*25 4
B00001814 铜垫圈 COPPER WASHER – Q/SC598-10*16 1
B00001724 内六角螺塞 PLUG – Q/SC587.1-M10*1 1
S00004764 油尺螺纹接头 JOINT (THREADED), OIL DIPSTICK 1
S00008170 机油滤清器旁通阀部件 OIL FILTER BYPASS VALVE ASSY 1
