Description

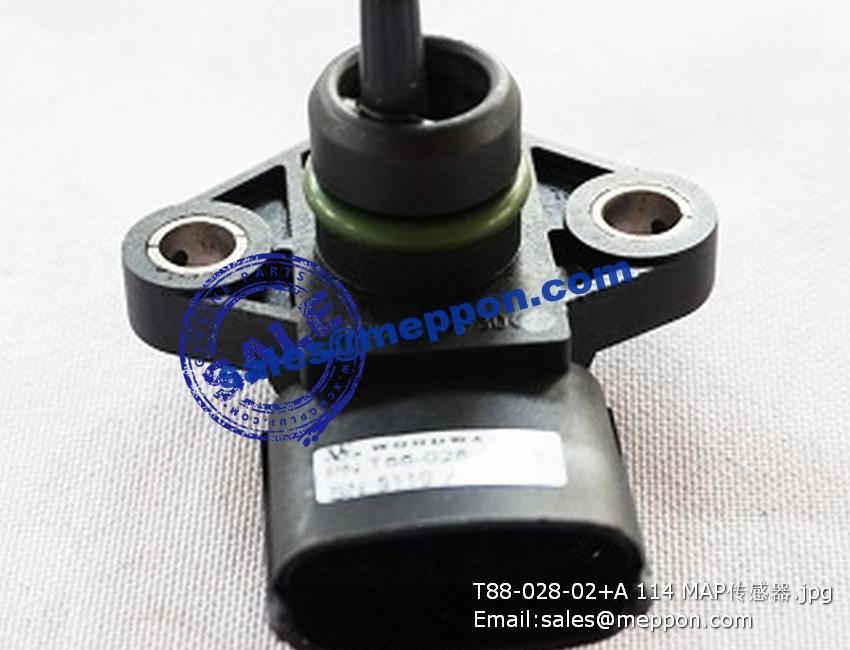

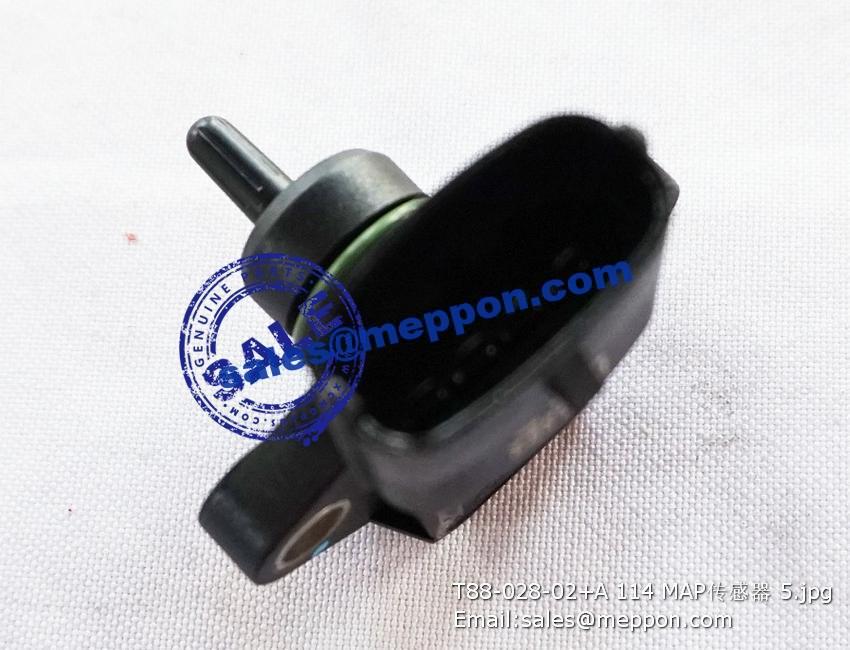

T88-028-02+A 114 MAP sensor PS13652
1 W05A-106-01 第一道活塞环 TOP RING, PISTON 6
2 S00022098 扭曲锥面环 TAPER TORSION RING 6
3 S00022099 油环部件 PISTON OIL CONTROL RING ASSY 6
4 W05A-101-01 活塞 PISTON 6
5 B00001047 孔用弹性挡圈-A型 CIRCLIPS FOR BORES TYPE-A 12 GB/T893.1-72
6 W05A-111-01 活塞销 PIN, PISTON 6
7 W05A-001-01 连杆机械加工部件 CONNECTING ROD ASSY (MACHINED) 6
8 W05A-112-01 连杆轴瓦 BEARING, CONNECTING ROD 12
9 B00000121 圆柱销 PARALLEL PINS 1 GB/T119-A6*12
10 B00004157 圆柱销 PARALLEL PINS 1 GB/T119-A16*30
11 W06A-101-01 曲轴 CRANKSHAFT 1
1 B00002000 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 12 Q/SC622-M10*25-ZN.D
2 W12A-116-06 进气管盖板 COVER, AIR INTAKE PIPE 1
3 W12A-113-06 进气接管垫片 GASKET, AIR INTAKE PIPE 1
4 W04A-121-01 进气管垫片 GASKET, AIR INTAKE PIPE 6
5 W12A-001-07 进气管焊接部件 AIR INTAKE PIPE ASSY 1
6 B00001999 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 24 Q/SC622-M10*25
7 W12A-111-06 进气接管垫片 GASKET, AIR INTAKE PIPE 2
8 B00002006 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M10*35-ZN.D
9 S00022855 进气弯管 AIR INTAKE PIPE ELBOW 1
10 B00000834 六角法兰面螺母 HEXAGON NUTS WITH FLANGE 4 GB/T6177-M10-Zn.D
11 S00023036 火焰预热辅助起动装置组件 FLAME HEATER GROUP 1
12 W04A-124-01 排气管垫片 GASKET, EXHAUST MANIFOLD 6
13 W13A-102-03 排气管 EXHAUST MANIFOLD 1
14 W04A-128-01 隔套 SPACER 24
15 D04-145-30A 排气管螺栓 BOLT EXHAUST MANIFOLD 24
16 W13A-103-03 涡轮进口垫片 GASKET, INLET-TURBINE 2
17 S00001481 双头螺栓 STUD 12
18 D13-304-01 增压器接口螺母 NUT, FLANGE-TURBOCHARGER 12
19 W13A-101-03 排气管 EXHAUST MANIFOLD 1
20 B00001994 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 18 Q/SC622-M10*16
21 W13C-104-03 排气管隔热罩 HEAT SHIELD, EXHAUST MANIFOLD 1
22 S00023624 排气管隔热罩 HEAT SHIELD, EXHAUST MANIFOLD 1
23 S00023622 排气管隔热罩 HEAT SHIELD, EXHAUST MANIFOLD 1
24 W13C-103-03 排气管隔热罩 HEAT SHIELD, EXHAUST MANIFOLD 1
1 S00021245 排气尾管部件 EXHAUST TAILPIPE ASSY 1
2 S00021429 活塞环 PISTON RING 8
3 S00021304 排气接管 EXHAUST PIPE 2
4 S00021668 夹箍 CLAMP 2
5 S00020938 增压器部件 TURBOCHARGER ASSY 1
6 B00002181 铰接螺栓 HINGE BOLT 2 Q/SC642.1-01-M18*1.5
7 B00002050 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 6 Q/SC622-M12*30
8 S00021808 夹箍 CLAMP 2
9 S00025259 增压器进油管 OIL INLET PIPE, TURBOCHARGER 1
10 B00001824 铜垫圈 COPPER WASHER 4 Q/SC598-14*20
11 B00002179 铰接螺栓 HINGE BOLT 2 Q/SC642.1-01-M14*1.5
12 W19B-102-01 增压器回油垫片 OIL RETURN PIPE GASKET, TURBOCHARGER 2
13 B00001996 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 8 Q/SC622-M10*20
14 B00002114 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M6*16
15 D19-003-01A 夹箍 CLAMP 4
16 B00000843 六角法兰面螺母 HEXAGON NUTS WITH FLANGE 2 GB/T6177-M6-Y
17 S00025260 增压器回油管 OIL RETURN PIPE, TURBOCHARGER 1
18 B00001833 铜垫圈 COPPER WASHER 4 Q/SC598-18*28
19 S00023269 垫片 GASKET 2
22 S00022346 垫块 SPACER 4
23 B00002021 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M10*65-10.9
24 S00021622 排气尾管隔热罩部件 EXHAUST TAILPIPE HEAT-SHIELD ASSEMBLY 1
25 B00001994 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M10*16
26 B00002028 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M10*75-10.9
27 S00022345 垫块 SPACER 2
28 B00001246 弹簧垫圈 SINGLE COIL SPRING LOCK WASHERS, NORMAL TYPE 16 GB/T93-20
29 B00000781 I型六角螺母 HEXAGON NUTS, STYLE 1 16 GB/T6170-M20-ZN.D
30 S00021657 排气尾管支架焊接部件 EXHAUST TAIL PIPE BRACKET 1
31 B00002057 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M12*40
32 S00021658 排气尾管支架焊接部件 EXHAUST TAIL PIPE BRACKET 1
33 B00000836 六角法兰面螺母 HEXAGON NUTS WITH FLANGE 4 GB/T6177-M12-Y
34 S00020937 增压器部件 TURBOCHARGER ASSY 1
37 S00025257 增压器进油管 OIL INLET PIPE, TURBOCHARGER 1
38 S00025258 增压器回油管 OIL RETURN PIPE, TURBOCHARGER 1
39 W00A-156-01 波形膨胀节 EXPANSION CONNECTOR 1
40 B00001287 平垫圈 PLAIN WASHER 16 GB/T97.1-20-200HV-ZN.D
41 B00000466 六角头螺栓 HEXAGON HEAD BOLTS 16 GB/T5782-M20*70
42 S00026157 消声器焊接部件 MUFFLER ASSY (WELDED) 1
