Description

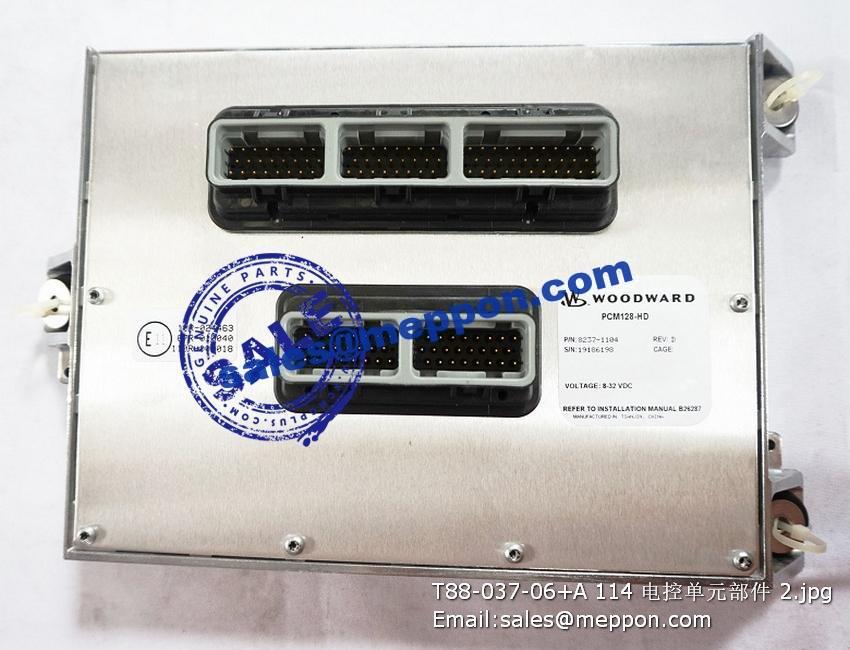

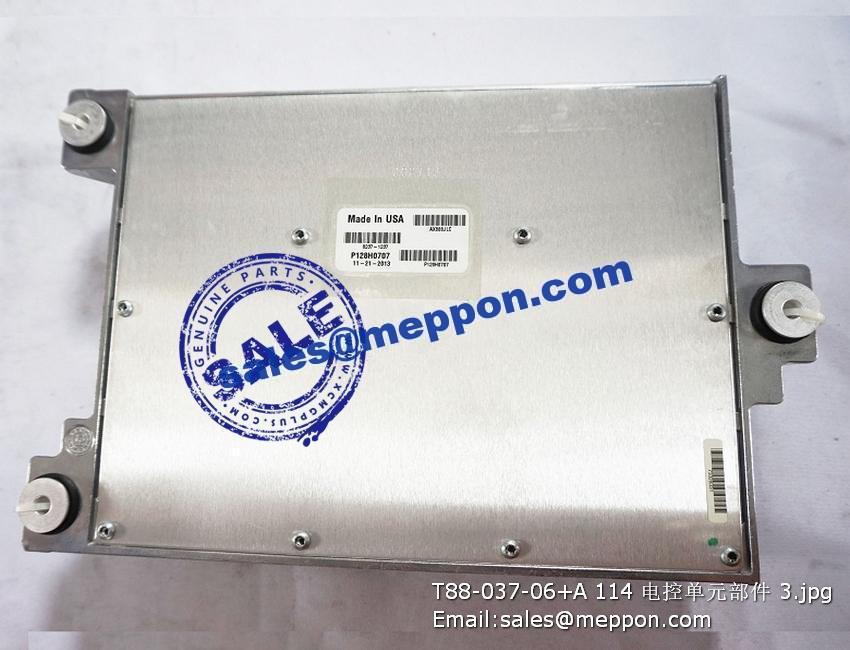

T88-037-06+A 114 ECU PS13665

1 B00004172 六角头螺栓 HEXAGON HEAD BOLTS 4 GB/T5783-M20*45-10.9
2 B00001246 弹簧垫圈 SINGLE COIL SPRING LOCK WASHERS, NORMAL TYPE 4 GB/T93-20
3 W04D-001-01 吊板焊接部件 EYE PLATE ASSY (WELDED) 1
4 B00000098 圆柱销 PARALLEL PINS 2 GB/T119-A10*20
5 B00004157 圆柱销 PARALLEL PINS 4 GB/T119-A16*30
6 W33A-101-01 发动机前支架 ENGINE SUPPORT 2
7 B00001284 平垫圈 PLAIN WASHER 8 GB/T97.1-16-200HV-Y
8 B00001243 弹簧垫圈 SINGLE COIL SPRING LOCK WASHERS, NORMAL TYPE 8 GB/T93-16
9 B00004171 六角头螺栓 HEXAGON HEAD BOLTS 8 GB/T5783-M16*50-10.9
10 W02A-134-01 机体底板 BEDPLATE, CYLINDER BLOCK 1
11 B00002050 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M12*30
12 W02A-141-01 喷油嘴垫片 GASKET, NOZZLE-INJECTOR 6
13 W02A-003-01 活塞冷却喷嘴部件 ORIFICE ASSY, PISTON COOLING JET 6
14 W02A-148-01 前盖板垫片 GASKET, FRONT COVER 1
15 B00000100 圆柱销 PARALLEL PINS 2 GB/T119-A10*30
16 W02A-137-01 前盖板 FRONT COVER 1
17 B00002069 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M12*60
18 B00002054 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 12 Q/SC622-M12*35
19 W02A-132-01 曲轴前油封 CRANKSHAFT SEAL, FRONT 1
20 W04D-105-01 螺塞 PIPE PLUG 2
21 W04D-104-01 前起吊板 EYE PLATE, FRONT 1

1 B00004189 小六角头头部带孔螺栓 SMALL HEX HEAD BOLT WITH WIRE HOLE ON HEAD 2 Q/SC611.3-M8*28
2 B00001253 弹簧垫圈 SINGLE COIL SPRING LOCK WASHERS, NORMAL TYPE 4 GB/T93-8
3 B00001881 六角头头部带孔螺栓 HEX HEAD BOLT WITH WIRE HOLE ON HEAD 2 Q/SC602-M8*16
4 W02E-119-01 挡油板 OIL BAFFLE 1
5 W02E-115-01 隔套 SPACER 2
6 W02E-101-01 凸轮轴室盖板垫片 GASKET, CAMSHAFT HOUSING COVER 1
7 W02F-119-01 出气口门板 COVER, AIR OUTLET PORT 1
8 W02A-140-01 垫圈 WASHER 1
9 B00002056 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M12*35-ZN.D
10 W02E-006-01 出气管焊接部件 OUTLET PIPE ASSY (WELDED) 1
11 S00021507 油气分离器支架 BRACKET, CRANKCASE VENT FILTER 1
12 B00000847 六角法兰面螺母 HEXAGON NUTS WITH FLANGE 2 GB/T6177-M8-ZN.D
13 B00002050 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 18 Q/SC622-M12*30
14 B00001571 喉箍 CLAMP 2 Q/SC1302-27~51
15 B00002388 橡胶水管 RUBBER HOSE, WATER 1 Q/SC646-38*80
16 S00014981 油气分离器部件 CRANKCASE VENT FILTER ASSY 1
17 B00002136 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M8*20-ZN.D
18 B00001565 喉箍 CLAMP 4 Q/SC1302-18~32
19 D42-115-30 橡胶直管(φ19) HOSE PIPE 2
20 S00021508 油气分离器回油管 OIL RETURN PIPE, CRANKCASE VENT FILTER 1
21 B00002097 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M16*35
22 W02F-109-01 凸轮轴室盖板垫片 GASKET, CAMSHAFT HOUSING COVER 5
23 W02F-118-01 出气口门板 COVER, AIR OUTLET PORT 2
24 W02F-106-01 凸轮轴室盖板 COVER, CAMSHAFT HOUSING 3
25 B00001278 平垫圈 PLAIN WASHER 7 GB/T97.1-12-200HV-Y
26 B00004162 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 7 GB/T16674.1-M12*40
27 B00002049 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 16 Q/SC622-M12*25-ZN.D
28 B00002054 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 3 Q/SC622-M12*35
29 W02F-111-01 机体侧盖板垫片 GASKET, CYLINDER BLOCK SIDE COVER 6
30 S00013190 加油口法兰 OIL FILLER FLANGE 1
31 B00002000 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 48 Q/SC622-M10*25-ZN.D
32 D12-314-01 O型橡胶密封圈 O-RING 1
33 S00014680 加油弯管 PIPE ELBOW, OIL FILLER 1
34 S00018399 加油盖部件 COVER ASSY, OIL FILLER 1
35 B00002134 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M8*20
36 W02F-108-01 机体侧盖板 SIDE COVER PLATE, CYLINDER BLOCK 5
