Description

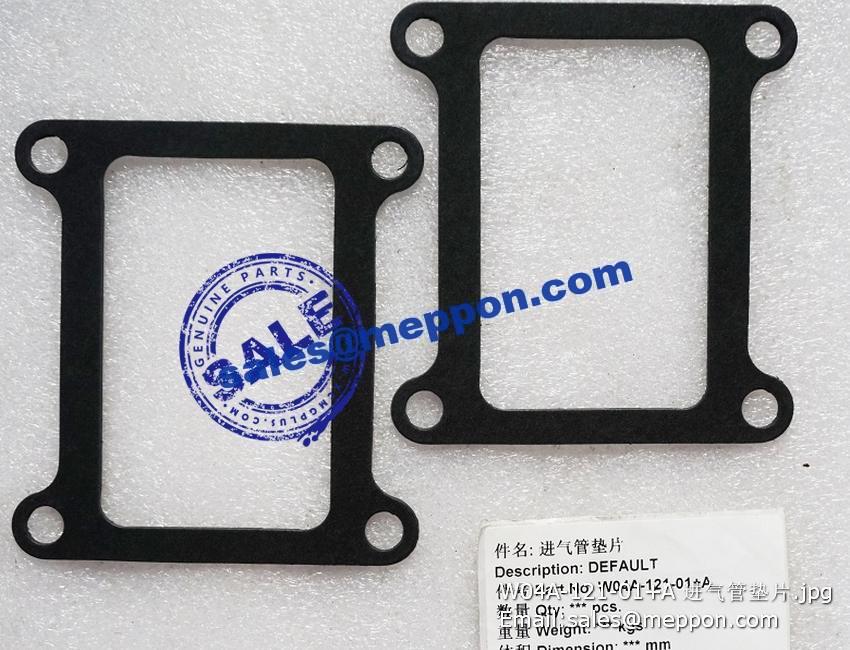

W04A-121-01+A GASKET

1 D33-104-09 后支撑 SUPPORT, BACK 2
2 B00002051 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 8 Q/SC622-M12*30-10.9
3 D33-011-32 前支承焊接加工部件 LEFT FRONT ENGINE SUPPORT ASSY 1
4 B00002070 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 4 Q/SC622-M12*60-10.9

1 D35-000-30A 热交换器(海水冷却淡水)组件 RAW/FLESH WATER HEAT EXCHANGE 1

1 D38-000-111 增压器组件 TURBOCHARGER GROUP 1

1 D39-001-30 膨胀水箱部件 EXPANSION TANK ASSY 1
2 D39-103-30 垫块 SPACER 2
3 B00002137 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 4 Q/SC622-M8*25
4 D39-101-30 支架 BRACKET 1
5 B00002054 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M12*35
6 B00002139 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*30

1 S00011812 油气分离器进气管 MIST INLET PIPE, CRANKCASE VENT FILTER 1
2 B00002137 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*25
3 D42-112-30 油气分离器支架 BRACKET, CRANKCASE VENT FILTER 1
4 B00000833 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 2 GB/T6177-M10-Y
5 B00002001 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M10*30
6 D42-001-30A 油分离器部件 CRANKCASE FILTER ASSY 1
7 D42-114-30A 油气分离器出气管 AIR OUTLET PIPE, CRANKCASE VENT FILTER 1
8 B00001569 喉箍 CLAMP 6 Q/SC1302-21~44
9 D42-118-30 橡胶弯管 HOSE 2
10 D42-123-01 标牌 NAMEPLATE 1
11 D42-123-02 警示标牌 CAUTION PLATE 1
