Description

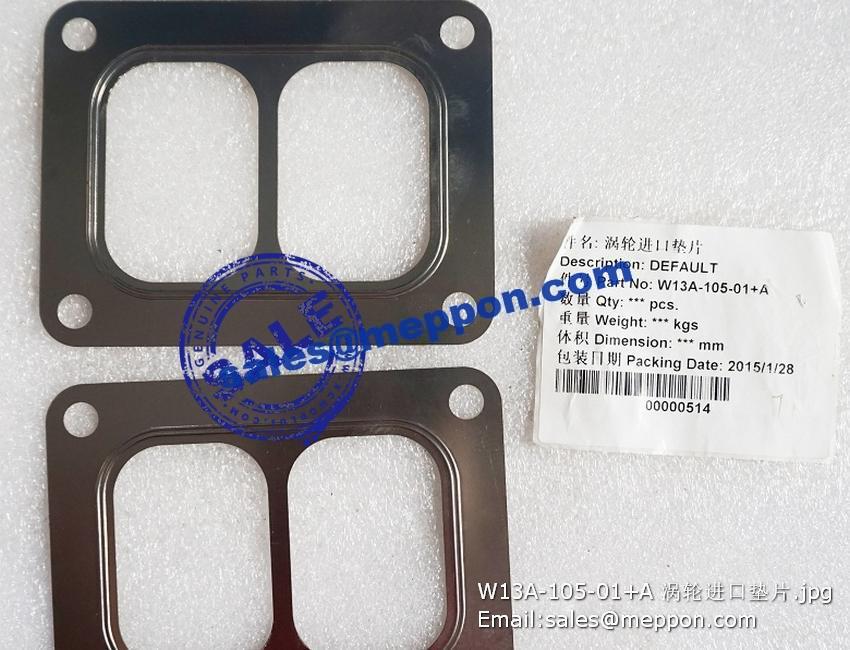

W13A-105-01+A TURBOCHARGER GASKET

1 S00010481 连杆机加工部件 MACHINING PARTS FOR CONNECTING-ROD 6
2 D05-113-32 连杆轴瓦 CONNECTING-ROD BEARING SHELL 12
3 B00001039 孔用弹性挡圈A型 A-TYPE ELASTIC RETAINING RING FOR HOLE APPLICATION 12 GB/T893.1-45
4 D05-112-01 活塞销 PISTON PIN 6
5 D05-101-35 活塞 PISTON 6
6 D05-002-31A 油环部件 OIL RING FITTINGS 6
D05-002-31Y 油环部件 OIL RING FITTINGS 6
7 D05-108-31Y 内切锥面环 INSCRIBE CONE-FACE RING 6
D05-108-31A 内切锥面环 INSCRIBE CONE-FACE RING 6
8 D05-107-31Y 梯形桶面环 TRAPEZOID DRUM-FACE RING 6
D05-107-31A 梯形桶面环 TRAPEZOID DRUM-FACE RING 6

1 D100X-104-03 前端带轮(三槽) PULLEY, FRONT 1
2 D06A-002-32 扭振减振器 VIBRATION DAMPER 1
3 D06A-111-30 多楔带轮 MICRO-V BELT 1
4 D06A-109-31 减振器螺栓 BOLT, DAMPER 4
5 D06A-110-01 圆柱销 ELASTIC PIN 1
6 S00003796 曲轴部件 CRANKSHAFT 1

1 D06B-001-36 飞轮与起动齿圈装配部件 FLYWHEEL AND RING GEAR ASSY 1
1.1 D06B-103-01 起动齿圈 RING GEAR, ENGINE START 1
2 D06B-108-30 飞轮螺栓 FLYWHEEL BOLT 8
