Description

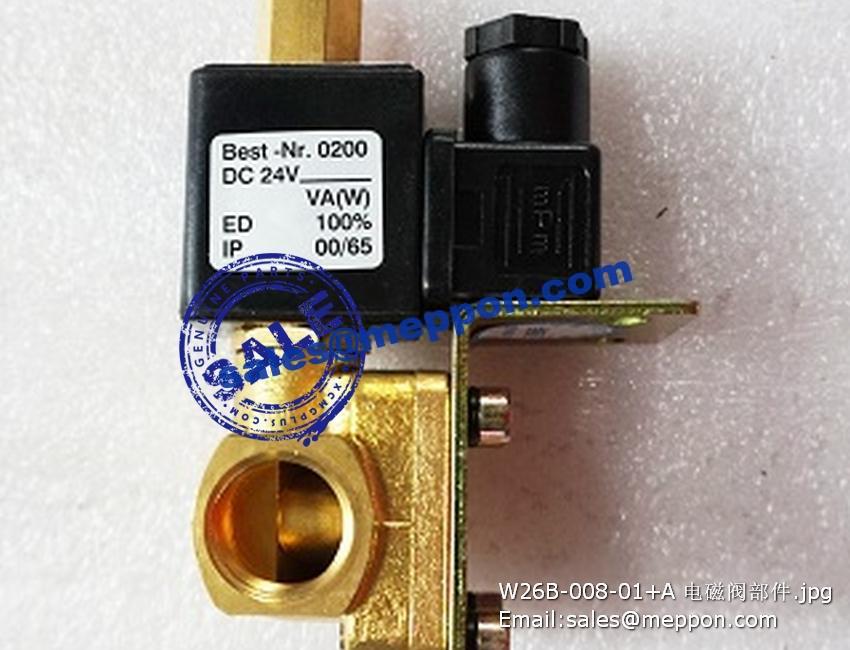

W26B-008-01+A SOLENOID ASSY

1 D19-119-01 增压器进油法兰 FLANGE, OIL INLET-TURBOCHARGER 1
2 D19-120-01 增压器进油法兰垫片 GASKET, OIL INLET FLANGE-TURBOCHARGER 1
3 B00002137 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 4 Q/SC622-M8*25
4 B00002193 垫圈 WASHER 2 Q/SC642.1-03-12
5 B00002178 铰接螺栓 BANJO BOLT 1 Q/SC642.1-01-M12*1.25
6 D19-113-01A 垫片 GASKET 1
7 S00007040 增压器回油管焊接部件 TURBOCHARGER OIL RETURN TUBE ASSY (WELDED) 1
8 D19-110-31 增压器进油管 OIL INLET PIPE, TURBOCHARGER 1
9 D19-118-01 接头 JOINT 1
10 B00002111 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M6*12
11 D19-105-01 吸油管支架 BRACE, OIL SUCTION PIPE-OIL SUCTION PUMP 1
12 B00001297 平垫圈 PLAIN WASHER 1 GB/T97.1-6-200HV-Y
13 B00002118 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 1 Q/SC622-M6*20
14 B00000843 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 1 GB/T6177-M6-Y
15 B00001252 弹簧垫圈 SPRING WASHER 1 GB/T93-6
16 D19-114-01A 吸油管法兰垫片 GASKET, PIPE FLANGE-OIL SUCTION PUMP 1
17 B00003351 内六角圆柱头螺钉 HEXAGON SOCKET HEAD CAP SCREW 2 GB/T70.1-M6*20
18 D19-001-41 吸油管焊接部件 OIL SUCTION PIPE ASSY (WELDED), OIL SUCTION PUMP 1
19 D02A-171-80 O型圈 O-RING 2

1 D20-000-32 水泵组件 WATER PUMP GROUP 1

1 D02B-106-30 PTO接口垫片 DEFAULT -1
2 S00007089 海水泵 RAW WATER PUMP 1
3 D21-101-30 海水泵托架 SUPPORT, RAW WATER PUMP 1
4 B00005556 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 GB/T16674.1-M8*16-DAC
5 B00005530 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 GB/T16674.1-M12*25-DAC

1 B00000121 圆柱销 DOWEL,PIN 2 GB/T119-A6*12
2 D02A-164-01 内六角螺塞(Z1/2) HEXAGON COUNTERSUNK PIPE PLUG 1
3 D22-101-30C 调温器体 THERMOSTAT HOUSING 1
4 D22-102-05 调温器部件 THERMOSTAT ASSY 1
5 D22-102-06 调温器部件 THERMOSTAT ASSY 1
6 D22-103-30A 垫片 GASKET 1
7 D22-105-01 套筒销 ELASTIC PIN 2
