Description

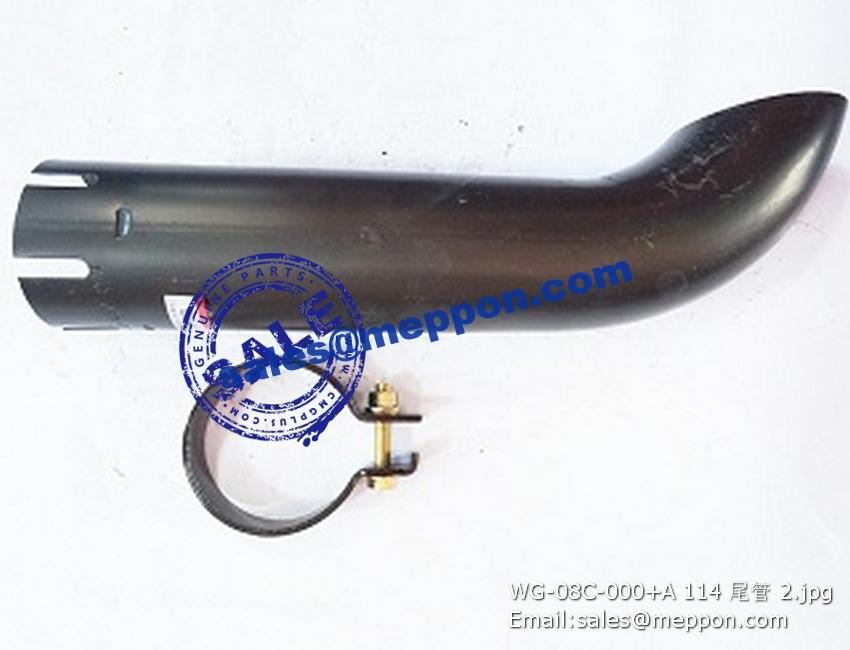

WG-08C-000+A 114 HOSE PS14036 4110001002111

1 S00000412 增压器组件 TURBOCHARGER GROUP 1

1 D39-001-30 膨胀水箱部件 EXPANSION TANK ASSY 1
2 D39-103-30 垫块 SPACER 2
3 B00002137 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 4 Q/SC622-M8*25
4 D39-101-30 支架 BRACKET 1
5 B00002054 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M12*35
6 B00002139 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*30

1 D42-118-30 橡胶弯管 HOSE 2
2 B00001569 喉箍 CLAMP 6 Q/SC1302-21~44
3 D42-114-40 油气分离器出气管 AIR OUTLET PIPE, CRANKCASE VENT FILTER 1
4 D42-001-31A 油分离器部件 CRANKCASE FILTER ASSY 1
5 B00005511 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 GB/T16674.1-M10*30-DAC
6 B00005628 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 2 GB/T6177-M10-DAC
7 D42-112-30 油气分离器支架 BRACKET, CRANKCASE VENT FILTER 1
8 B00005559 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 GB/T16674.1-M8*25-DAC
9 S00011812 油气分离器进气橡胶管 HOSE TO CRANKCASE VENTILATION FILTER 1
10 D42-123-01 标牌 NAMEPLATE 1
11 D42-123-02 警示标牌 CAUTION PLATE 1

1 B00005019 内六角圆柱头螺钉 HEXAGON SOCKET HEAD CAP SCREWS 1 GB/T70-M6*40-ZN.D
2 D59-112-03 停机手柄 FUEL SHUTOFF LEVER 1
3 B00005345 六角头螺栓 HEXAGON HEAD BOLTS 6 GB/T5783-M6*25-ZN.D
4 B00005018 弹簧垫圈 SPRING WASHER 7 GB/T93-6-ZN.D
5 B00000791 I型六角螺母 HEXAGON NUT 2 GB/T6170-M6-ZN.D
6 B00001298 平垫圈 PLAIN WASHER 2 GB/T97.1-6-200HV-ZN.D
7 D59-105-12 停机电磁铁 FUEL SHUTOFF SOLENOID 1
8 D59-101-14 电磁铁支架 BRACKET, FUEL SHUTOFF SOLENOID 1

1 D638-000-05A 燃油滤清器组件 FUEL FILTER GROUP 1
2 D638-002-04A 燃油滤清器部件 FUEL FILTER 1
