Description

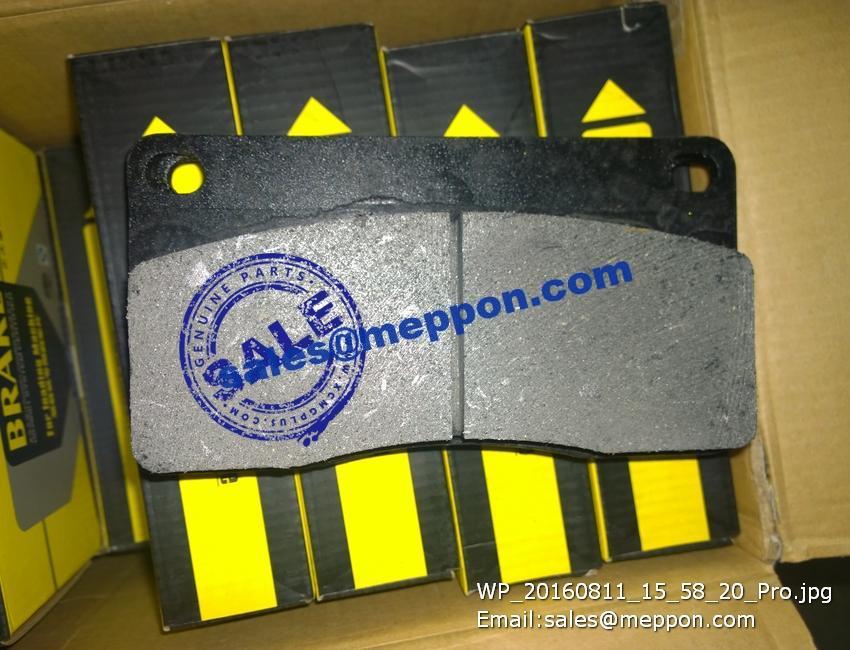

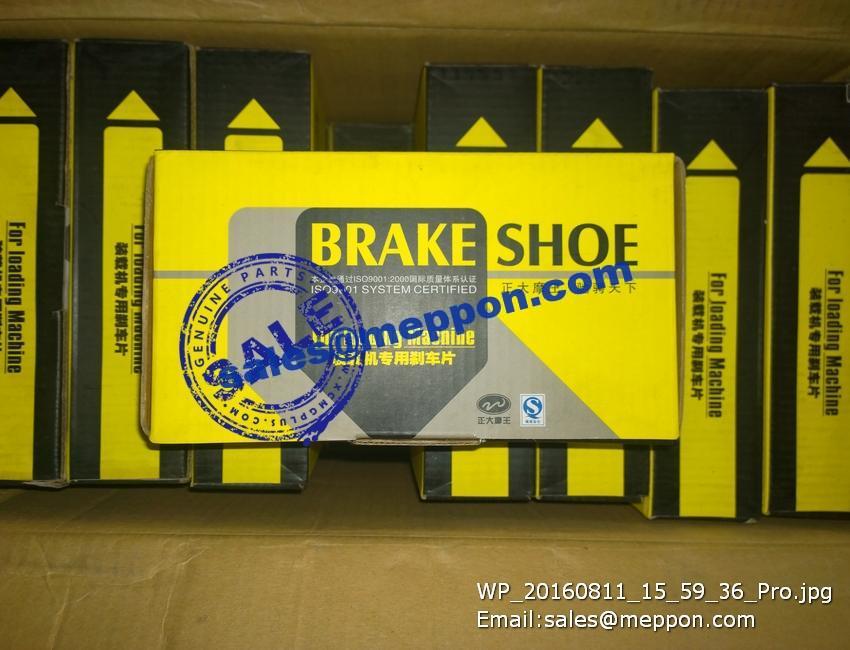

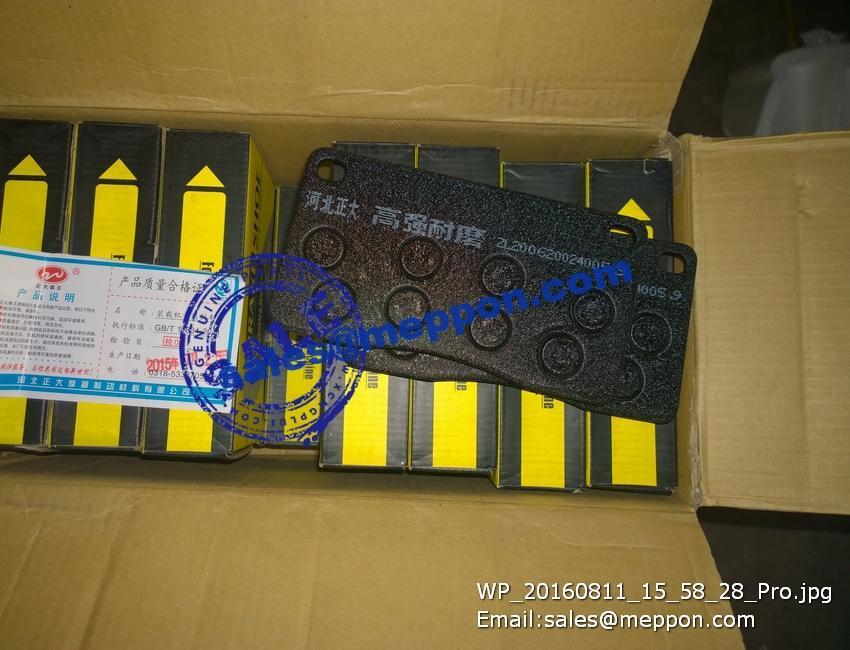

Z30.6.3.2 CHANGLIN WHEEL LOADER BRAKE PAD

1 Z30.6.3-8A 副钳桥 Auxiliary pincers 4
2 Z30.6.3-1A 密封圈 Seal ring 16
3 GB1235-1976 O 形圈 16×2.4 O-ring 16
4 Z30.6.3-2A 活塞 Piston 16
7 Z30.6.3-4 防尘罩 Bust hood 16
8 Z30.6.3.2 衬块总成 Filler block ass’y 8
9 GB/T818-1985 螺钉 M6×8 Screw 16
10 Z30.6.3-6 盖板 Cover 4
11 Z30.6.3-5A 主钳桥 Main pincers 4
12 Z30.6.3.1-2 阀杆 Valve stem 8
13 Z30.6.3.1-1 阀座 Valve seat 8
14 Z30.6.3-9 销轴 Pin 8
15 GB/T91-1986 销 2×16 Cotter pin 8
18 GB/T119-1986 销 1.5×12 Pin 8
19 Z30.6.3-7 螺栓 Bolt 16
