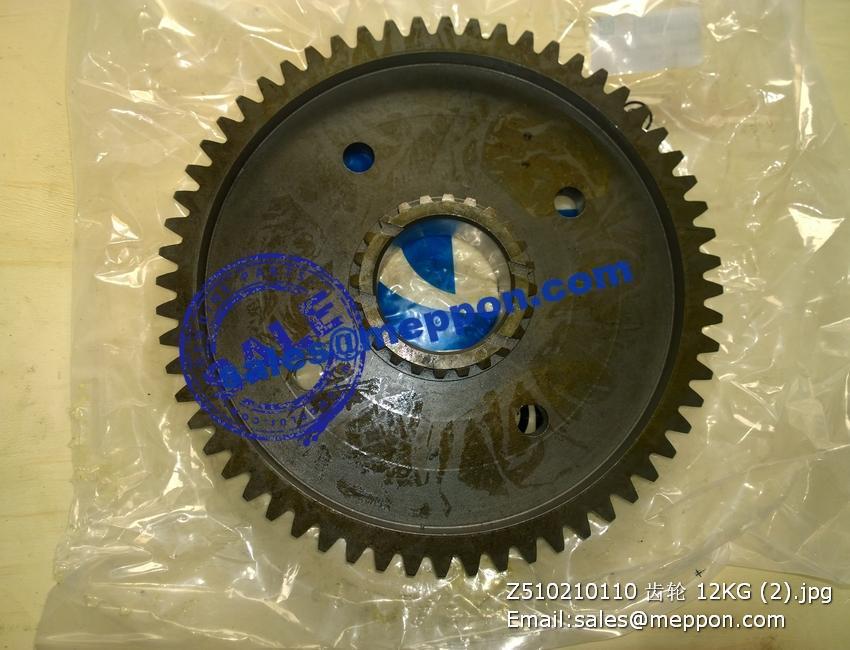

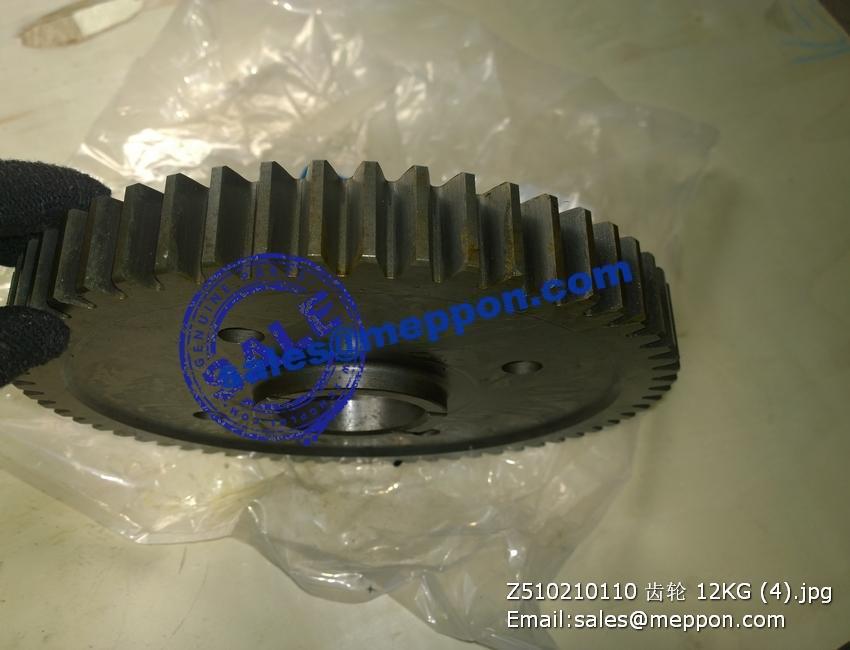

Z510210110 ZL50D.21-11 SEM GEARBOX GEAR

1
螺钉 M10X30 10.9
级 氧化
screw B010431030 GB/T70.1-2000 16
2 螺栓 M12×60 Bolt B040811260 GB/T5782-2000 3
3 螺栓 M8×20 Bolt B040910820 GB/T5783-2000 18
4 螺栓 M10×16 Bolt B040911016 GB/T5783-2000 28
5 螺栓 M10×25 Bolt B040911025 GB/T5783-2000 15
6 螺栓 M12×25 Bolt B040911225 GB/T5783-2000 3
7 螺栓 M12×30 Bolt B040911230 GB/T5783-2000 6
8 螺栓 M20×50 Bolt B040912050 GB/T5783-2000 8
9 螺母 M16 nut B050331614 GB/T6170-2000 1
10 垫圈 8
washer
B060110802 GB/93-1987 2
11 垫圈 10
washer
B060111003 GB/93-1987 28
12 垫圈 12
washer
B060111203 GB/93-1987 1
13 垫圈 20
washer
B060112005 GB/93-1987 8
15 孔用挡圈 130 Sprag for hole B070150011 GB/T893.1-1986 1
17 孔用挡圈 190 Sprag for hole B070150001 GB/T893.1-1986 4
18 轴用挡圈 40 retainer B070214002 GB/T894.1-1986 5

19 轴用挡圈 110 retainer B070250001 GB/T894.1-1986 1
20 轴用挡圈 50 retainer B070255002 GB/T894.1-1986 4
21 圆柱销 B16×30 pin B080121630 GB/T119.1-2000 2
22 开口销 6.3×55 cotter pin B080210027 GB/T91-2000 1
23 开口销 6.3×70 cotter pin B080210030 GB/T91-2000 1
24 开口销 5×45 cotter pin B080210545 GB/T91-2000 1
26 双头螺柱 M16×30 stud B100111630 GB/T869-1986 1
27 螺塞 ZG1/4″ PLUG B110200104 JB/ZQ4446-1997 4
28 螺塞 BZG1/2″ plugB B110500102 JB/ZQ4446-1997 1
29 螺塞 Z1/8″ PLUG B110400108 JB/ZQ4447-1997 4
30 轴承 208 bearing B120124018 GB/T276-1994 8
31 轴承 409 bearing B120144529 GB/T276-1994 1
32 轴承 NJ308E tapered roller bearing B120330002 GB/T283-1994 4
32 轴承 NJ308E bearing B120344027 GB/T283-1994 3
33 轴承 92312E bearing B120330001 GB/T283-1994 1
35 止动环 90/96.5 lock ring B120639000 GB/T305-1998 5

36 轴承 50308 bearing B121134023 GB/T276-1994 1
37 O 形圈 14×2.65 O ring B160120140 GB/T3452.1-2005 4
38 O 形圈 25×2.65 O ring B160120250 GB/T3452.1-2005 1
39 O 形圈 32.5×3.55 O ring B160130325 GB/T3452.1-2005 1
41 O 形圈 97.5×3.55 O ring B160130975 GB/T3452.1-2005 1
42 O 形圈 175×5.3 O ring B160141750 GB/T3452.1-2005 1
43 油封 SG65×90×12 oil seal B160240001 HG4-692-67 1
44 油封 SG70×95×12 oil seal B160240003 HG4-692-67 1
45 呼吸器
breather SFH-323S combined
parts
JB326305000 9G5127 1
47 齿轮 gear Z510210180 ZL50D.21-18 1
48 前输出连接法兰
front output connecting
flange
Z510210200 ZL50D.21-21 1
49 油标 GCY-100 oil indication W110001540 1
50 螺母 nut Z200020480 ZL25-2-50 1
51 箱体 box Z5B316002 1
52 离合器轴 clutch shaft Z510210020 ZL50D.21-2 3

53 盖 conver Z510210030 ZL50D.21-3 3
54 输入联接盘 input link tray Z510210040 ZL50D.21-4 1
55 输入轴 input shaft Z510210050 ZL50D.21-5 1
56 压板 pressing plate Z510210060 ZL50D.21-6 1
57 O 型圈 38×5.7 O ring Z510210070 ZL50D.21-7 1
58 输入齿轮 input gear Z510210080 ZL50D.21-8 1
59 齿轮 gear Z510210090 ZL50D.21-9 1
61 齿轮 gear Z510210110 ZL50D.21-11 1
62 输出轴 output shaft Z510210130 ZL50D.21-13 1
63 压板 pressing plate Z510210140 ZL50D.21-14 1
64 O 型圈 41×8.6 O ring Z510210150 ZL50D.21-15 1
65 挡板 retainer Z510210160 ZL50D.21-16 2
66 接合套 connection bush Z510210170 ZL50D.21-17 1
67 弹簧 spring Z200020860 ZL25-2-92 1
68 轴承座 bearing seat Z510210190 ZL50D.21-20 1
69 钢球φ10 round steel B120711000 GB/T308-2002 1

70 套 sleeve Z510210210 ZL50D.21-22 1
72 进油盖 inlet oil cover(reverse) Z510210232 2
73 密封环 seal ring Z510210240 ZL50D.21-27 8
74 垫片 spacer Z510210250 ZL50D.21-28 5
75 封油板 oil sealing board Z510210260 ZL50D.21-29 1
76 套 sleeve Z510210270 ZL50D.21-30 4
77 进油盖 inlet oil cover(forward) Z510210282 1
78 输入轴盖 input shaft cover Z510210290 ZL50D.21-33 1
79 进油盖 inlet oil cover(reverse) Z510210302 1
80 密封环 seal ring Z510210310 ZL50D.21-36 4
81 拨叉 yoke Z510210330 ZL50D.21-45 1
82 拉杆 pull rod Z510210340 ZL50D.21-46 1
83 螺钉 screw Z510210350 ZL50D.21-47 1
84 螺塞 screw plug Z510210360 ZL50D.21-49 1
85 垫片 spacer Z510210370 ZL50D.21-50 2
86 小法兰 flange Z5B316003 1

87 压板 pressing plate Z510210390 ZL50D.21-53 1
88 螺母 M36×1.5 nut Z510210400 ZL50D.21-54 1
89 高低速齿轮轴套
H/L speed control mechanism
(cable ) used for 50F、61F
installation iron
Z510210411 ZL50D.21-55 2
90 变速箱标牌 transmission nameplate Z510210420 ZL50D.21-56 1
91 离合器(F.R)组 clutch assembly NZ51021043000 2
92 离合器(Ⅰ.Ⅲ)组 clutch assembly NZ51021058000 1
93 离合器（Ⅱ Ⅳ） clutch assembly NZ51021060010 1
94 蓄能器总成 accumulator AS Z510210640 ZL50D.21.4 1
95 滤油器左法兰盘 left flange of oil filter Z510210870 ZL50D.21.8-2 1
95 滤油器右法兰盘 right flange of oil filter Z510210880 ZL50D.21.8-3 1
96 变速箱操纵阀组件 transmission control valve NZ51021090000 ZL50D.21.9G1 1
97 挡油板 oil retainer Z510211040 ZL50D.21.10-2 1
98 过渡盘 transition plate Z510211130 ZL50D.21-57 1
99 进油盖轴套 sleeve of inlet oil cover Z510211230 4
100 呼吸器接头 breather joint Z51021167 1

101 过油板 oil-through board Z51021168 1
102 后输出连接法兰 rear output connecting flange Z520100010 ZL50F.10-1 1
103 放油螺塞 oil drain screw Z640060320 1
104 滤网总成 50D filter screen assembly Z510210890 ZL50D.21.8.1 1
105 O 形圈 71×5.3 O ring B160140710 GB/T3452.1-2005 2
106 圆柱销 B10×40 pin B080121040 GB/T119.1-2000 1
201 过渡接头 transition adapter Z5201708401 1
202 接头 connection joint Z320170040 ZL30F.17-6 1
203 温度传感器 Temprature sensor W46000295 1
212 支座 bracket Z520510060 1
213 销轴 pin Z420090080 ZL40F.9-8 1
214 锁紧螺母 M12 nut B050211210 GB/T889.1-2000 1
215 弯臂 bending arm Z420090060 ZL40F.9-6 1
216 连扳 connection plate Z420090070 ZL40F.9-7 2
217 销轴 8×26 pin B080310826 GB/T882-1986 1
218 销轴 12×30 pin B080311230 GB/T882-1986 1

219 开口销 3.2×16 cotter pin B080210007 GB/T91-2000 1
220 开口销 4×22 cotter pin B080210422 GB/T91-2000 1
221 变矩器回油接头
torque converter oil return
adapter
Z5A01703900 1
222 变速箱出回油接口 transmission outlet-inlet
tube
Z510260080 ZL50D.26.1 1
223 变速箱支架(右) transmission mount (right) Z520030640 ZL50F.3.4 1
223 变速箱支架(左) transmission mount ((left) Z520030890 ZL50F.3.11 1
224 倒车灯压力开关 Reverse lamp SW W46000301 1
225 支架组件 BRACKET AS Z5B755006 1
226 驻车制动气室接头 parking brake chamber
adapterZL30F.22-5 45
Z320220020 ZL30F.22-5 1
孔用挡圈 80 Sprag for hole B070158003 GB/T893.1-1986 8
开口销 3.2×20 cotter pin B080210012 GB/T91-1986 2
开口销 2×20 cotter pin B080210220 GB/T91-2000 2
销轴 6×30 pin B080310630 GB/T882-1986 2
钢球φ5 round steel B120710500 GB/T308-2002 4
杆端关节轴承 SI8E joint bearing B120910808 GB/T9161-2001 2

O 形圈 20×2.65 O ring B160120200 GB/T3452.1-2005 2
轴承 6308N/C4 bearing W032001290 GB/T276-1994 4
测压接头 TC-D10 adapter W152200000 1
紧急与驻车制动器
ZL50F
parking brake air cavity
W44083000 1
轴承螺栓 bearing bolt ZL30F.7-4 45 Z320070040 ZL30F.7-4 2
垫 spacer Z320070050 ZL30F.7-5 2
叉头 yoke Z420070030 ZL40F.7-3 2
联接叉 connection fork Z510080100 ZL50D.8-11 2
离合器轴 clutch shaft Z510210100 ZL50D.21-10 1
活塞 piston Z510210440 ZL50D.21.1-1 4
活塞外封环 piston outer seal ring Z510210450 ZL50D.21.1-2 4
离合器被动片 clutch driven disc Z510210460 ZL50D.21.1-3 20
压板 pressing plate Z510210470 ZL50D.21.1-4 4
挡环 spacer Z510210500 ZL50D.21.1-7 4
单向阀座 check valve seat Z510210520 ZL50D.21.1-9 4

离合器主动片 clutch driving disc Z510210560 ZL50D.21.1.2 24
支承柱 support pole Z510211030 ZL50D.21.10-1 2
齿轮套 gear sleeve Z51021156 3
弹簧 spring Z51021158 4
弹簧座 spring seat Z51021159 4
齿轮 gear Z51021160 2
齿轮 gear Z51021161 1
齿轮 gear Z51021162 1
齿轮套 gear sleeve Z51021163 1
箱盖 box Z51021173 1
双管卡支架Ⅰ double hose clip bracket I Z5A01702200 1
回油接头 oil return joint Z5A01703602 1
四通接头组件 4-WAY CONNECTER AS. Z5B257001 1
连杆 linkage Z5B755001 2
销轴 pin Z5B755002 2
