Description

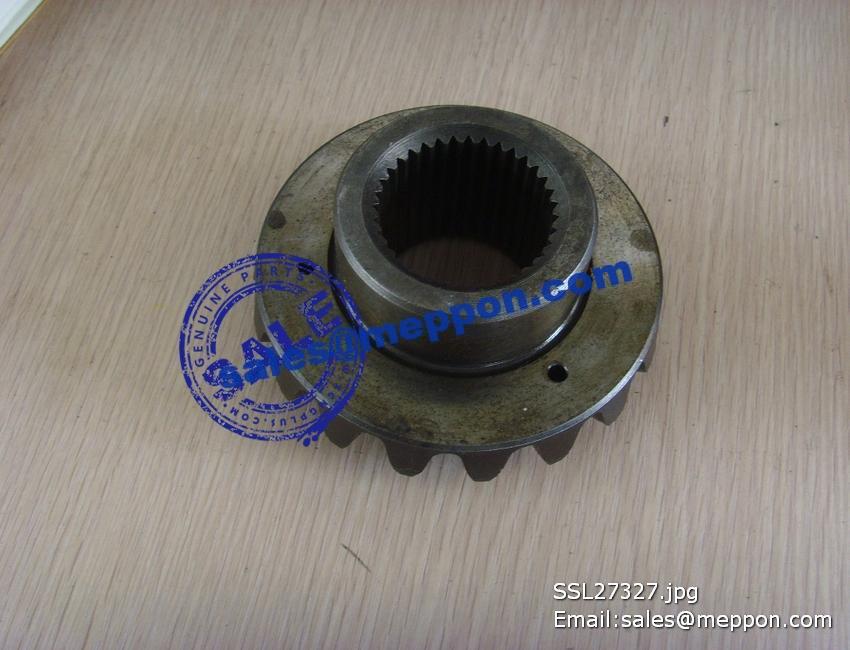

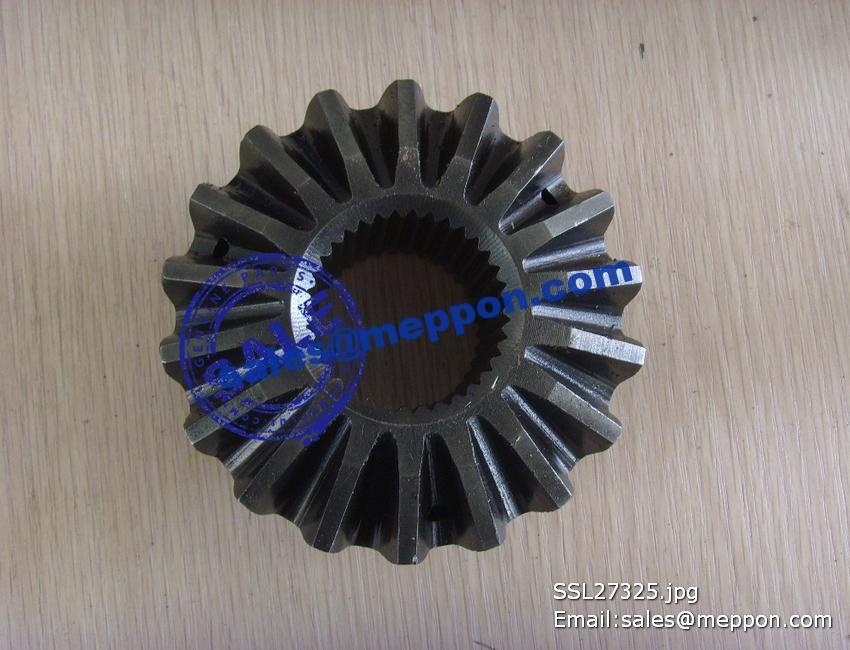

ZL40.2.1-15A 300F-030503 SIDE GEAR LW300F LW300FN SPARE PARTS

1 顶套 TIP SLEEVE G13-106-02+B 6
2 O型密封圈 O-RING U641A-8M5253+A 12
3 垫片 GASKET G13-108-01+A 6
4 闷头 PLUG 761G-04-052D+A 13
5 方头锥形螺塞 SQUARE HEAD CONE PIPE PLUG B00001719(Q/SC585-R1/4/B2) 1
6 垫片 GASKET 761Z-13-007A+A 1
7 双头螺柱 STUD B00001148(GB/T899-M10*30-8.8-Y) 4
8 I型六角螺母 NUT B00000768(GB/T6170-M10-Y) 4
9 弹簧垫圈 SPRING WASHER B00001253(GB/T93-8) 24
10 夹箍 CLAMP S00003033+02 2
11 盖板支架 COVER PLATE SUPPORT S00003032+02 2
12 衬垫 GASKET G13-104-01+A 2
13 六角法兰面螺栓 BOLT B00001993(GB/T5787-M10*20) 4
14 六角头螺栓 BOLT B00000634(GB/T5783-M8*25) 18
15 水冷排气管 WATER COOLED EXHAUST MANIFOLD G13-101-03+A 1
16 垫片 GASKET G13-102-01+A 1
17 盖板 COVER PLATE G13-109-01+A 1
18 六角法兰面螺栓 BOLT B00002084(Q/SC622-14*35) 4
19 六角头螺栓 BOLT B00000694(GB/T5786-M8*1*20) 6
1 单节机油泵组件 LUBE OIL PUMP GROUP G15-000-01+A 1
1 机油滤清器部件 OIL FILTER ASSY D17-002-02+B 2
2 机油滤清器装配部件 OIL FILTER ASSY G17-003-01+A 1
2.1 空心螺套 SHEATH G17-104-01+A 2
2.2 机油滤器座 BASE, OIL FILTER G17-103-01A+A 1
3 接头 JOINT G17-102-01+A 1
1 机油冷却器盖 COVER, OIL COOLER G18-101-01A+A 1
2 主油道调压阀体 BODY, PRESSURE REGULATING VALVE-OIL GALLEY G18-102-01+A 1
3 主油道调压弹簧 SPRING, PRESSURE REGULATING VALVE-OIL GALLEY G18-103-01+A 1
4 主油道调压螺帽 NUT, PRESSURE REGULATING VALVE-OIL GALLEY G18-104-01+A 1
5 垫片 GASKET G18-105-01+A 1
6 垫片 GASKET G18-106-01A+A 4
7 垫片 GASKET G18-107-01+A 1
8 旁通阀盖 COVER, BYPASS VALVE-OIL FILTER G18-108-01+A 1
9 阀座 VALVE SEAT G18-109-01+A 1
10 弹簧 SPRING G18-110-01+A 1
11 弹簧座 SPRING SEAT G18-111-01+A 1
12 旁通阀阀芯 CORE G18-112-01+A 1
13 六角头螺栓 BOLT B00000505(GB/T5783-M10*25) 1
14 六角头螺栓 BOLT B00000528(GB/T5783-M10*70) 1
15 六角头螺栓 BOLT B00000634(GB/T5783-M8*25) 4
16 I型六角螺母 NUT B00000793(GB/T6170-M8-Y) 1
18 双头螺柱 STUD B00001138(GB/T899-GM8-M8*30-8.8-Y) 1
19 盖形螺母 NUT B00001236(GB/T923-M8) 8
20 弹簧垫圈 SPRING WASHER B00001237(GB/T93-10) 2
21 弹簧垫圈 SPRING WASHER B00001253(GB/T93-8) 13
22 平垫圈 WASHER B00001299(GB/T97.1-8-200HV-Y) 13
23 内六角头螺塞 HEXAGON COUNTERSUNK PIPE PLUG B00001708(Q/SC584.2-M24*1.5) 2
24 内六角头螺塞 HEXAGON COUNTERSUNK PIPE PLUG B00001709(Q/SC584.2-M27*1.5) 2
25 调整铜垫圈 COPPER WASHER, OIL COOLER G18-113-01+A 1
26 复合式密封硬垫圈 RUBBER COATED HARD WASHER B00001552(Q/SC1294-24) 2
27 复合式密封硬垫圈 RUBBER COATED HARD WASHER B00001553(Q/SC1294-27) 2
29 机油冷却器芯子部件 OIL COOLER CORE ASSY G18-001-01B+B 2
1 回油管焊接部件 FUEL RETURN PIPE ASSY (WELDED) G19-002-08+B 1
2 垫片 GASKET G19-125-03+A 1
3 六角头螺栓 BOLT B00000505(GB/T5783-M10*25) 2
4 平垫圈 WASHER B00001299(GB/T97.1-8-200HV-Y) 6
5 弹簧垫圈 SPRING WASHER B00001253(GB/T93-8) 6
6 油管 FUEL PIPE 771Z-19-003A+A 1
7 铜垫圈 COPPER WASHER B00001824(Q/SC598-14*20) 2
8 铰接螺栓 Hinge bolt B00002179(Q/SC642.1-01-M14*1.5) 1
9 垫片 GASKET G19-125-01+A 1
10 小六角头螺栓 BOLT B00001963(Q/SC611.1-M8*20) 2
11 机油泵吸油管焊接部件 PIPE ASSY (WELDED), OIL SUCTION PUMP G19-007-01+B 1
12 垫片 GASKET G19-102-01+A 1
13 小六角头螺栓 BOLT B00001966(Q/SC611.1-M8*25) 2
14 油管 FUEL PIPE G19-104-03+B 1
15 铰接螺栓 BOLT B00002185(Q/SC642.1-01-M8*1) 1
16 铜垫圈 COPPER WASHER B00001855(Q/SC598-8*14) 2
17 夹箍 CLAMP G19-122-01+A 1
18 六角头螺栓 BOLT B00001899(Q/SC611.1-M10*12) 1
19 弹簧垫圈 SPRING WASHER B00001237(GB/T93-10) 1
20 回油管焊接部件 FUEL RETURN PIPE ASSY (WELDED) A771Z-19-010+B 1
21 O形橡胶密封圈 O-RING B00002471(Q/SC648-13.8*2.4) 2
1 冷却水泵部件 WATER PUMP ASSY G20-001-05+C 1
2 水泵齿轮 WATER PUMP GEAR G20-103-01+B 1
3 放水阀 WATER DRAIN COCK 741G-02-004+A 1
1 海水泵组件 RAW WATER PUMP GROUP G21-000-01+B 1
