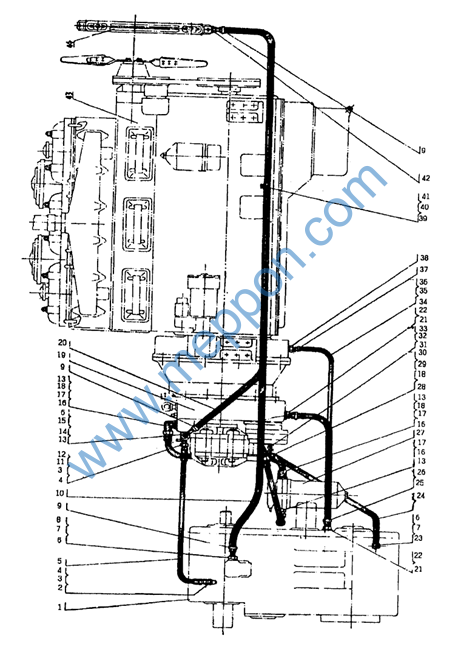

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q’ty

31

32

33

34

35

36

37

38

39

40

41

42

43

44

B-G000700-00008

B-G000930-00001

B-G000700-00004

Z50B.2.9-1

B-J010020-00006

Z50B.2.9-2

B-J088700-00014

Z50B.2.9-3

Z50B.2-1

B-G057820-00037

B-G000930-00003

Z30.2M.2.1

W-02-00023

W-08-00094

螺钉 M10×40         Screw

垫圈 10             Washer

螺钉 M10×25         Screw

接头                 Pipe joint

垫圈 20             Washer

回油管
φ16×1300     Oil return tube

喉箍 d32             Clamp

接头                 Joint

固定夹                 Clip

螺栓 M12×45         Bolt

垫圈 12             Washer

接头                 Joint

G128Gle 柴油机     G128Gle diesel engine

机油散热器      Oil radiator

4

8

4

1

1

1

2

1

1

1

1

2

1

1

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q’ty

1

2

3

4

5

6

Z50E.2F.1（1）

Z50E.2F.1（2）

Z50E.2F.1（3）

Z50E.2F.1（4）

Z50E.2F.1（5）

Z50E.2F.1（6）

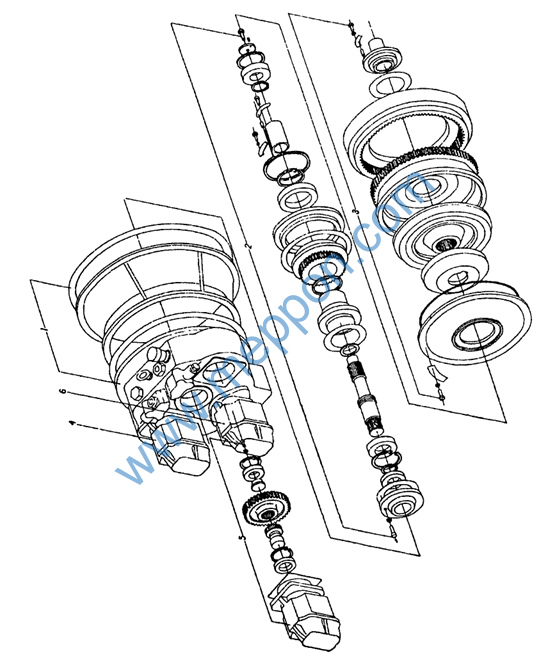

液力变矩器（一）Case & outlet oil valve

液力变矩器（二）Turbine shaft

液力变矩器（三）Torque converter

液力变矩器（四）T/c-steering pump connection

液力变矩器（五）T/c-working pump connection

液力变矩器（六）T/c-compensating pump connection

1

1

1

1

1

1

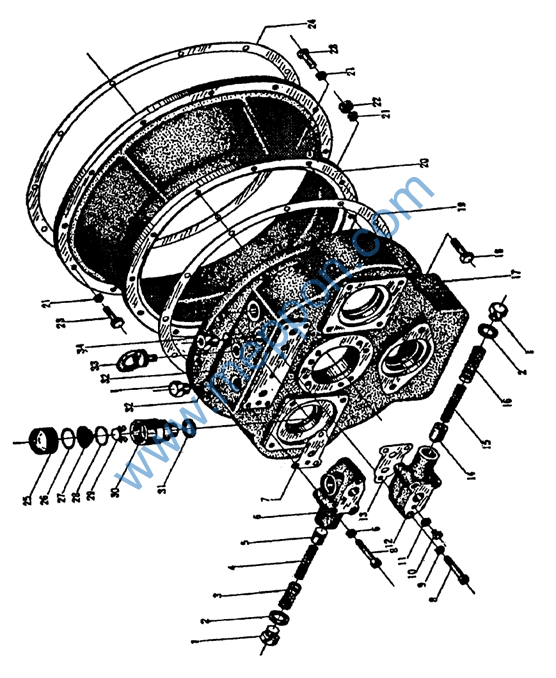

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q’ty

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

Z30.2.3-30

B-J010020-00008

Z30.2.3.2-3

Z30.2.3.2-2

Z30.2.3.2-4

Z30.2.3.2-1

Z30.2.3-31

B-G000700-00010

B-G000930-00001

B-J010000-00013

B-J010020-00013

Z30.2.3.1-2

Z30.2.3-29

Z30.2.3.1-1

Z30.2.3.1-4

Z30.2.3.1-3

Z50E.2.1-1

B-G057830-00045

Z50B.2.1-38

Z50B.2.1-22

B-G000930-00003

B-G061700-00007

B-G057830-00037

Z50B.2.1-34

Z30.4.16-3

B-G00895A-00001

Z30.4.16.1

B-Q020710-00064

Z30.4.16-2

Z30.4.16-1

B-J010020-00010

B-Q020710-00047

B-G008250-00004

螺塞                Plug

垫圈 24            Washer

大弹簧                Big spring

小弹簧                Small spring

阀芯                Valve core

阀体                Valve body

密封垫                Seal washer

螺钉 M10×65        Screw

垫圈 10            Spring washer

螺塞 M8×1            Plug

垫圈 8                Washer

阀体                Valve body

密封垫                Seal washer

阀芯                Valve core

小弹簧                Small spring

大弹簧             Big spring

箱体                Case

螺栓 M12×50        Bolt

纸垫                Paper pad

壳体                Case

垫圈 12            Spring washer

螺母 M12 ZnD        Nut

螺栓 M12×35        Bolt

垫                    Washer

外套                Outer sleeve

挡圈 40            Snap ring

过滤盘                Filter disk

O形密封圈 40×3.5    O-ring

杯盘                Disc

通气杯                Aerated cup

垫圈 30            Washer

O形密封圈 30×3.1    O-ring

螺钉 M12    ZnD        Screw

4

2

1

1

1

1

1

6

6

1

1

1

1

1

1

1

1

6

1

1

24

6

6

1

1

1

1

1

1

1

1

2

1
