SINOMACH CHANGLIN ZL50E-5 wheel loader parts catalog 17
Z50E.34G 工作装置液压系统（配抓具） Hydraulic System
Z50E.34G 工作装置液压系统（配抓具） Hydraulic System
|
序号 No. |
零 Part No. |
名 Part Name |
数量 Q’ty |
|
29 30 31 32 33 34 35 |
Z50B.14A.5 Z50B.14A.6 Z50B.14A-7 B-G057820-00023 B-Q020560-00001 B-G057830-00006 Z50B.14A-4 |
油管 Tube 油管 Tube 座 Seat 螺栓 M10×70 Bolt 软管总成 19-1000 Hose ass’y 螺栓 M10×25 Bolt 板 Plate |
1 1 4 4 2 4 2
1
1 2 4 2 2 |

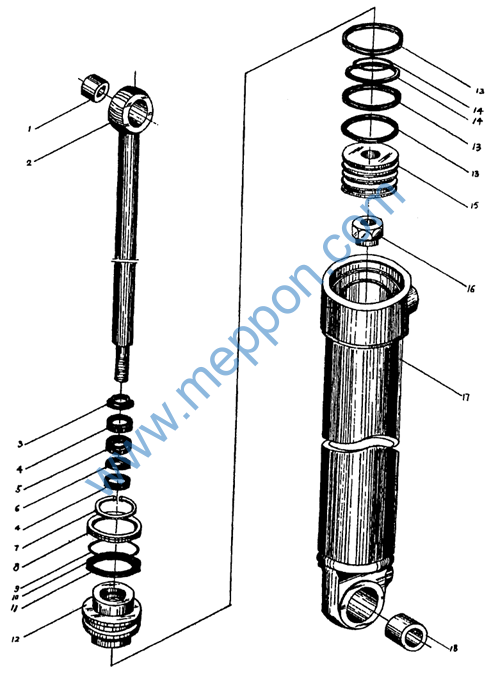

Z50B.14A.4 夹爪油缸 Gripping Jaw Cylinder
Z50B.14A.4 夹爪油缸 Gripping Jaw Cylinder
|
序号 No. |
零 Part No. |
名 Part Name |
数量 Q’ty |
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 |
Z50B.14A.4-1 Z50B.14A.4.1 B-G10708C-00010 Z50B.14A.4-2 B-G10708A-00007 W-15-00079 B-G00894A-00022 Z50B.14A.4-3 Z50B.14A.4-4 B-Q020711-00001 B-Q020710-00004 Z50B.14A.4-5 Z50B.14A.4-6 W-15-00072 Z50B.14A.4-7 Z50B.14A.4.3 Z50B.14A.4.2 Z50B.14A.4-8 |
轴套 Busing 活塞杆 Piston rod 防尘圈FC50×58×5 Dust seal 支承环 Back-up ring 密封圈 Y50×65×12.5 Seal ring 斯特封 0500/S-55013 Seal 挡圈 80 Snap ring 挡环 Back-up ring 钢丝挡圈 Wire snap ring 挡圈 A105×95 Snap ring O形圈 105×5.7 O-ring 导向圈 Guide sleeve 支承环 Support ring 格莱圈 1000/S-55044 Ring 活塞 Piston 螺母 Nut 缸体 Cylinder 轴套 Bushing |
1 1 1 2 1 1 1 1 1 1 1 1 3 1 1 1 1 1 |

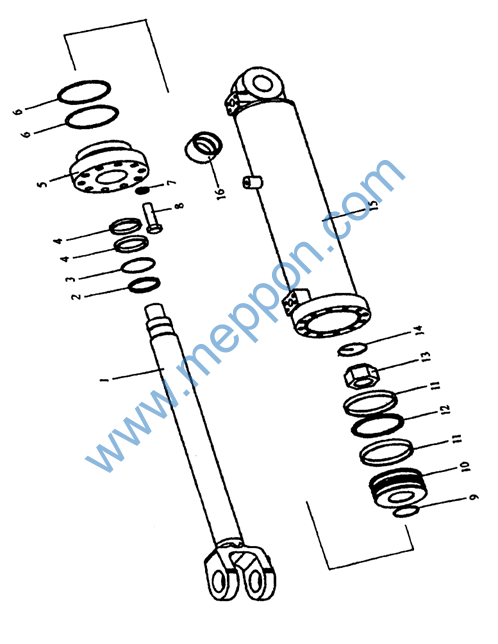

Z50E.34F.1 动臂油缸 Lift Arm Cylinder
Z50E.34F.1 动臂油缸 Lift Arm Cylinder
|
序号 No. |
零 Part No. |
名 Part Name |
数量 Q’ty |
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 |
Z50E.34F.1.1 B-G10708C-00014 B-G010710-00002 B-G10708A-00010 Z50B.14.10B-1 B-Q020710-00108 B-G000930-00006 B-G057850-00021 B-Q020710-00085 Z50B.14.10B-2 Z50B.14.10B-4 W-15-00076 Z50B.14.10B-3 Z50B.14.10-6 Z50B.14.10B.2 Z50B.14.10-7 |
活塞杆 Piston rod 防尘圈 FC90×110×6 Dust ring O形圈 100×5.7 O-ring 密封圈 Y90×105×12.5 Seal ring 缸头 Cylinder head O形圈 160×5.7 O-ring 垫圈 16 Washer 螺栓 M16×1.5×55ZnD Bolt O形圈 65×3.1 O-ring 活塞 Piston 支承环 Back-up ring 格莱圈 1600/S-55044 O-ring 螺母 Nut 止动钢丝圈 Stop-wire ring 缸体 Cylinder body 轴套 Bushing
和957所有编号一样 |
1 1 1 2 1 6 12 12 1 1 2 1 1 1 1 1 |
