SINOMACH CHANGLIN 936 wheel loader parts catalog 01
目 录 Contents
936.2 液力变矩器系统 Torque Converter System 8
936.2.2 液力变矩器(一) Torque Converter(1) 10
936.2.2 液力变矩器(二) Torque Converter(2) 12
936.2.2 液力变矩器(三) Torque Converter(3) 14
936.2.2 液力变矩器(四) Torque Converter(4) 16
936.2.2 液力变矩器(五) Torque Converter(5) 18
Z30E.3 主传动轴 Main Drive Shaft 20
936.4A 变速箱体及附件 Transmission and Accessories 22
Z30E.4A.1 前进/倒退档轴总成 Forward and Reverse Gear Ass’y 24
Z30E.4.2 倒档轴总成 Reverse Shaft Ass’y 26
Z30E.4.3 中间轴总成 Medium Shaft Ass’y 28
Z30E.4.4 二、三档轴总成 2nd and 3rd Shaft Ass’y 30
Z30E.4.5 一档总成 1st Speed Ass’y 32
936.4.8 输出轴总成 Output Shaft Ass’y 34
Z30.4.12A 分配阀总成 Distributing Valve Ass’y 36
Z30E.4.13 档位阀总成 Clutch Valve Ass’y 38
Z30.4.13 档位阀 Transmission control Valve 40
Z30E.5 前传动轴(一) Front Drive Shaft(1) 44
Z30E.5 前传动轴(二) Front Drive Shaft(2) 46
Z30H.6B.1A 轮辋总成 Wheel Ass’y 52
Z30E.6.2 前桥主传动 Front Axle Main Drive 54
Z30E.6.2 前桥主传动 Front Axle Main Drive 56
Z30E.7 后传动轴 Rear Drive Shaft 60
Z30.8E.1 后桥主传动 Rear Axle Main Drive 68
Z30.8E.1 后桥主传动 Rear Axle Main Drive 70
936.9/936.9A 制动系统 Brake System 72
936.9/936.9A 制动系统 Brake System 74
936.10 转向系统(一) Steering System (1) 76
936.10 转向系统(二) Steering System (2) 78
936.10.2 右转向油缸 Right Steering Cylinder 80
936.10.1 左转向油缸 Left Steering Cylinder 80
936.11 紧急制动系统 Emergency Brake System 82
936.13(31.G0) 工作装置 Working Equipment 92
* 936.13A 加长臂工作装置 Lengthen Arm Working Equipment 92
936.14 工作液压系统(两联)(一) Hydraulic System (1) 96
936.14 工作液压系统(两联)(一) Hydraulic System (1) 98
936.14 工作液压系统(两联)(二) Hydraulic System (2) 100
* 936.14B 工作液压系统(高卸) Hydraulic System 100
936.14 工作液压系统(两联)(三) Hydraulic System (3) 102
Z30E.14M.7 举升油缸 Boom Cylinder 104
936.14.17 转斗油缸 Bucket Cylinder 106
* 936.14B.1 转斗油缸(加长臂) Bucket Cylinder 106
936.14.1 油箱 Hydraulic Tank 108
* 936.14A 工作液压系统(三路) Hydraulic system 110
* Z30E.34T 工作液压系统(配爪) Hydraulic system 112
** Z30E.34U工作液压系统(加长臂配爪) Hydraulic system 112
* Z30E.34T.1 夹爪油缸 Right Steering Cylinder 114
936.17 车身及附件 Vehicle Body and Accessory 122
936.17 车身及附件 Vehicle Body and Accessory 124
936.18 电气系统 Electrical System 126
936.18A 电气系统 Electrical System 128
* 936.21 空调系统 Air Condition System 130
注:* 表示有选配性

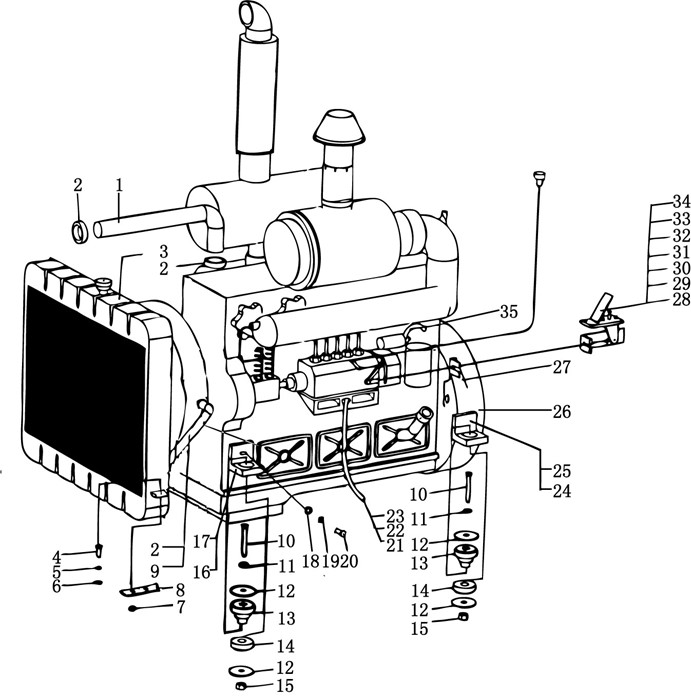

936.1发动机系统 Engine System
936.1 发动机系统 Engine System
序号 No. |
零 Part No. |
版本 Ver. |
名 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
1 |
1 |
柴油机出水管 (柴油机附件) |
Hose |
1 |
9360005- |
||
2 |
1 |
喉箍(柴油机附件) |
Clamp |
4 |
9360005- |
||
3 |
W-08-00158 |
1 |
水箱散热器总成|CL936 |
Water tank |
1 |
9360005- |
|
4 |
B-G057830-00062 |
1 |
螺栓 M14×45 ZnD |
Bolt |
4 |
9360005- |
|
5 |
B-G000930-00005 |
1 |
垫圈14 |
Washer |
4 |
9360005- |
|
6 |
B-G00097B-00006 |
1 |
垫圈 14 ZnD |
Washer |
4 |
9360005- |
|
7 |
B-G061700-00010 |
1 |
螺母 M14 ZnD |
Nut |
2 |
9360005- |
|
8 |
936.1-1 |
1 |
水箱机油散热器弹性垫 |
Cushion |
2 |
9360005- |
|
9 |
936.1-2A |
1 |
柴油机进水管 |
Hose |
1 |
9360005- |
|
10 |
B-G057850-00035 |
1 |
螺栓 M22×1.5×130-10.9 ZnD |
Bolt |
4 |
9360005- |
|
11 |
B-G000930-00009 |
1 |
垫圈 22 |
Washer |
8 |
9360005- |
|
12 |
Z30.1-10 |
1 |
垫圈 |
Washer |
4 |
9360005- |
|
13 |
Z30.1.2.1 |
1 |
缓冲座 |
Cushion |
4 |
9360005- |
|
14 |
Z30.1.2-1 |
1 |
缓冲橡胶 |
Cushion |
4 |
9360005- |
|
15 |
B-G061710-00018 |
1 |
螺母M22×1.5 ZnD |
Nut |
4 |
9360005- |
|
16 |
936.1.3 |
1 |
前右支座 |
Front right supporter |
1 |
9360005- |
|
17 |
936.1.2 |
1 |
前左支座 |
Front left supporter |
1 |
9360005- |
|
18 |
B-G000930-00007 |
1 |
垫圈18 |
Washer |
6 |
9360005- |
|
19 |
B-G00097B-00024 |
1 |
垫圈18ZnD |
Washer |
6 |
9360005- |
|
20 |
B-G057830-00088 |
1 |
螺栓M18×40ZnD |
Bolt |
6 |
9360005- |
|
21 |
1 |
柴油机进油管(柴油机附件) |
Hose |
1 |
9360005- |
||
22 |
B-J009990-00001 |
1 |
螺栓M14×1.5×32 |
Bolt |
2 |
9360005- |
|
23 |
B-J010020-00003 |
1 |
垫圈14 |
Washer |
4 |
9360005- |
|
24 |
936.1.1 |
1 |
后左支座 |
Back left supporter |
1 |
9360005- |
|
25 |
936.1.4 |
1 |
后右支座 |
Front left supporter |
1 |
9360005- |
|
26 |
W-02-00245 |
1 |
柴油机TD226B-6IG15 |
Diesel engine |
1 |
9360005- |
|
27 |
1 |
油门软轴支架(柴油机附件) |
Flexible shaft support |
1 |
9360005- |
||
28 |
B-G000930-00015 |
1 |
垫圈6 |
Washer |
5 |
9360005- |
|
29 |
B-G00097B-00021 |
1 |
垫圈6 ZnD |
Washer |
7 |
9360005- |
|
30 |
B-G061700-00034 |
1 |
螺母M6 ZnD |
Nut |
5 |
9360005- |
|
31 |
936.1.5 |
1 |
油门软轴 |
Flexible shaft |
1 |
9360005- |
|
32 |
Z30.1A.1 |
1 |
球铰接头 |
Spherical connector |
2 |
9360005- |
|
33 |
B-G057830-00132 |
1 |
螺栓M6×25 ZnD |
Bolt |
3 |
9360005- |
|
34 |
W-02-00068 |
1 |
油门踏板YT-75 |
Accelerator pedal |
1 |
9360005- |
|
35 |
1 |
柴油机回油管(柴油机附件) |
Hose |
1 |
9360005- |
||

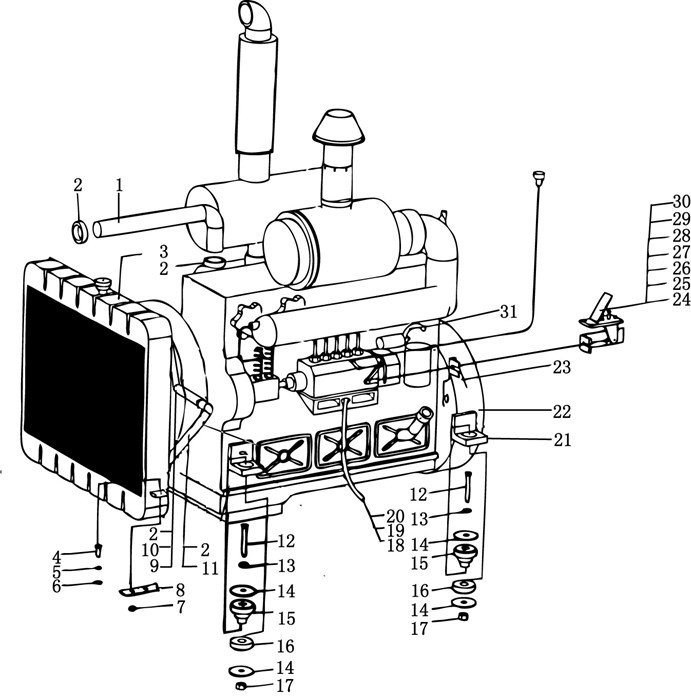

936.1A 发动机系统 Engine System
