十一、工作装置 Working Equipment

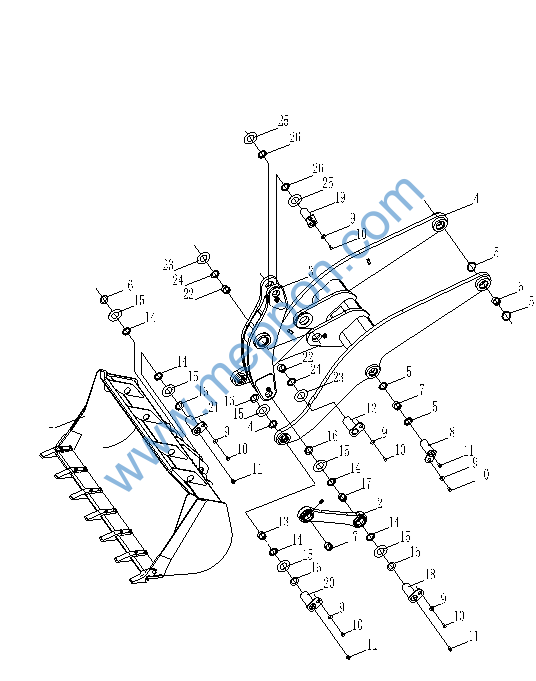

工作装置 Working Equipment

工作装置
Working Equipment

序号

No.

零件代号

Part No.

版本

Ver.

名称

Part Name

数量

Q’ty

适用车号

Suit Num.

选装

Cho

1

955N.31.G0.1

1

通用铲斗

Universal bucket

1

955N0005-



2

Z50E.13P.2.1

1

焊接连杆

Linkage

1(*)

955N0005-




Z50E.13R.2.1

1

焊接连杆

Linkage

1(#$)

955N0005-



3

Z50E.13P.3H.1

1

焊接摇臂

Lift arm

1

955N0005-



4

Z50E.13P.1.1

1

焊接动臂

Lift arm

1(*)

955N0005-




Z50E.13R.1.1

1

焊接动臂

Lift arm

1(#)

955N0005-




Z50E.13S.1.1

1

焊接动臂

Lift arm

1($)

955N0005-



5

Z50B.13.13

1

内防尘圈110

Inner dust ring

8

955N0005-



6

Z50B.13.7-1A

1

动臂后轴套

Tail bushing

2

955N0005-



7

Z50B.13.7-3A

1

动臂中轴套

Mid bushing

2

955N0005-



8

Z50B.13.5A

1

销轴组件

Shaft assembly

2

955N0005-



9

B-Q01201E-00003

1

垫圈16

Washer

8

955N0005-



10

B-G057830-00066

1

螺栓 M16×25 ZnD

Bolt

8

955N0005-



11

B-J07940A-00001

1

油杯M10×1

Grease cup

8

955N0005-



12

Z50B.13.4

1

销轴组件

Shaft assembly

1

955N0005-



13

Z50E.13P.1-1

1

动臂前轴套

Frontal bushing

2

955N0005-



14

Z50B.13.1

1

内防尘圈100

Inner dust ring

8

955N0005-



15

Z50B.13-2

1

垫片

Pad

3

955N0005-




Z50B.13-3

1

垫片

Pad

3

955N0005-



16

Z50B.13-1

1

外防尘圈115

Outer dust ring

8

955N0005-



17

Z50B.13.8-2A

1

轴套

Bushing

2

955N0005-



18

B-Q01201F-00031

1

销轴组件85x240B

Shaft assembly

2

955N0005-



19

Z50E.13N.6

1

销轴组件

Shaft assembly

1

955N0005-



20

Z50E.13N.3

1

销轴组件

Shaft assembly

2

955N0005-



21

Z50E.13N.4

1

销轴组件

Shaft assembly

1

955N0005-



22

Z50B.13.9-1A

1

轴套

Bushing

2

955N0005-



23

Z50B.13-15

1

垫片

Pad

2

955N0005-



24

Z50B.13.11

1

内防尘圈 135

Inner dust ring

2

955N0005-



25

B-Q01201C-00009

1

垫片

Pad

2

955N0005-



26

Z50B.13.12

1

内防尘圈 115

Inner dust ring

2

955N0005-





注:
标注（*）符号件为通用工作装置Z50E.13P专用；

标注（#）符号件为卸高3.35M加长臂工作装置Z50E.13R专用；

标注（$）符号件为卸高3.60M加长臂工作装置Z50E.13S专用；未注件为通用件。

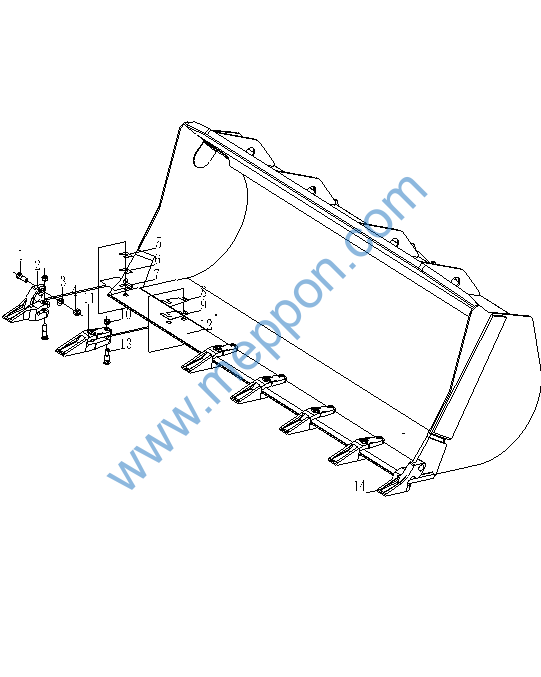

带齿铲斗 Bucket


带齿铲斗
Bucket

序号

No.

零件代号

Part No.

版本

Ver.

名称

Part Name

数量

Q’ty

适用车号

Suit Num.

选装

Cho

1

Z50B.13-6

1

螺栓

Bolt

2

955N0005-



2

Z50B.13-11A

1

右边齿

Right tooth

1

955N0005-



3

B-G051750-00001

1

螺母 M24ZnD

Nut

2

955N0005-



4

B-Q020490-00015

1

垫圈 24

Washer

2

955N0005-



5

Z50B.13-16

1

垫片

Pad

4

955N0005-



6

Z50B.13-14

1

垫片

Pad

2

955N0005-



7

Z50B.13-13

1

垫片

Pad

2

955N0005-



8

Z50B.13-9

1

垫片

Pad

5

955N0005-



9

Z50B.13-8

1

垫片

Pad

5

955N0005-



10

Z50B.13-5

1

螺母

Nut

12

955N0005-



11

Z50B.13-10A

1

中间齿

Bucket tooth

5

955N0005-



12

955N.31.G0.1

1

通用铲斗

Universal bucket

1

955N0005-



13

Z50B.13-4

1

螺栓

Bolt

12

955N0005-



14

Z50B.13-12A

1

左边齿

Left tooth

1

955N0005-

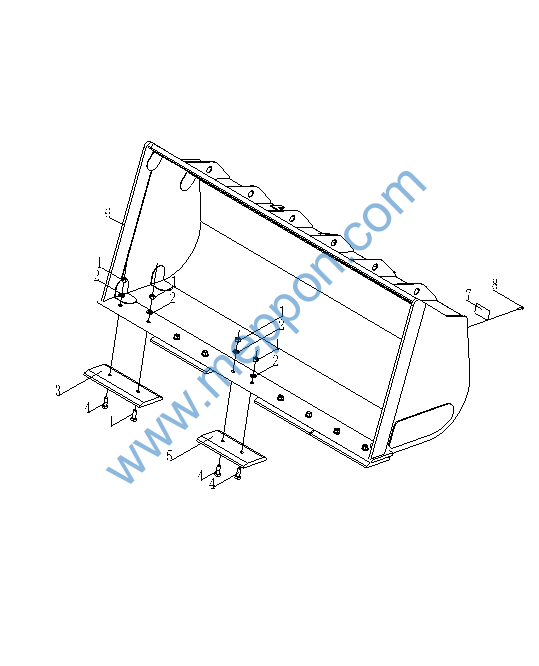

煤斗 Coal Scuttle
