序号

No.

零 件 代 号

Part No.

版本

Ver.

名 称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

1

Z30.2.3.1-5

1

螺塞

Plug

2

9570001-

2

Z30.2.3.1-6

1

垫圈 24

Washer

4

9570001-

3

Z30.2.3.2-3

1

大弹簧

Big spring

1

9570001-

4

Z30.2.3.2-2

1

小弹簧

Small spring

1

9570001-

5

Z30.2.3.2-4

1

阀芯

Valve core

1

9570001-

6

Z30.2.3.2-1

1

阀体

Valve body

1

9570001-

7

Z30.2.3-31

1

密封垫

Seal washer

1

9570001-

8

B-G000700-00010

1

螺钉M10×65

Screw

6

9570001-

9

B-G000930-00001

1

垫圈 10

Spring washer

6

9570001-

10

B-J010000-00013

1

螺塞M8×1

Plug

1

9570001-

11

B-J010020-00013

1

垫圈 8

Washer

1

9570001-

12

Z30.2.3.1-2

1

阀体

Valve body

1

9570001-

13

Z30.2.3-29

1

密封垫

Seal washer

1

9570001-

14

Z30.2.3.1-1

1

阀芯

Valve core

1

9570001-

15

Z30.2.3.1-4

1

小弹簧

Small spring

1

9570001-

16

Z30.2.3.1-3

1

大弹簧

Big spring

1

9570001-

17

Z50E.2.1-1

1

箱体

Case

1

9570001-

18

B-G057830-00045

1

螺栓 M12×50ZnD

Bolt

6

9570001-

19

Z50B.2.1-38

1

纸垫

Paper pad

1

9570001-

20

Z50E.2B.1-1

1

壳体

Case

1

9570001-

21

B-G000930-00003

1

垫圈 12

Spring washer

32

9570001-

22

B-G061700-00007

1

螺母 M12ZnD

Nut

6

9570001-

23

B-G000700-00015

1

螺钉M12×35

Bolt

12

9570001-

24

Z50B.2.1-34

1

垫

Washer

1

9570001-

25

Z30.4.16-3

1

外套

Outer sleeve

1

9570001-

26

B-G00895A-00001

1

挡圈 40

Snap ring

1

9570001-

27

Z30.4.16.1

1

过滤盘

Filter disk

1

9570001-

28

B-Q020710-00064

1

O 形密封圈 40×3.5 O-ring

1

9570001-

29

Z30.4.16-2

1

杯盘

Disc

1

9570001-

30

Z30.4.16-1

1

通气杯

Aerated cup

1

9570001-

31

B-J010020-00010

1

垫圈 30

Washer

1

9570001-

32

B-J010020-00008

1

垫圈 24

Washer

2

9570001-

33

B-G008250-00001

1

螺钉 M16

Screw

1

9570001-

34

Z30.2.3-30

1

螺塞

Plug

2

9570001-

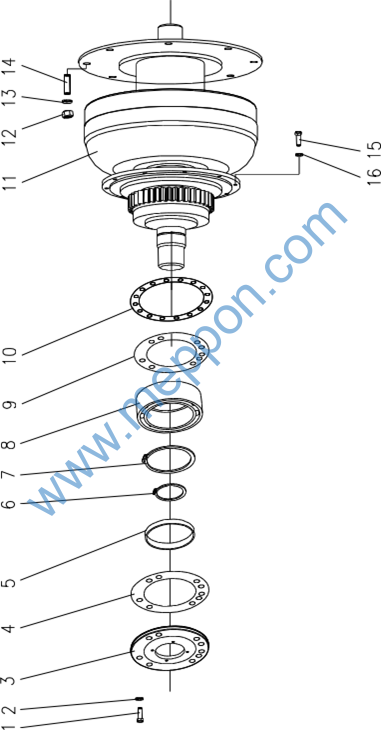

序号

No.

零 件 代 号

Part No.

版本

Ver.

名 称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

1

B-G000700-00017

1

螺栓 M12×70

Bolt

8

9570001-

– –

12 Washer

8

–

. –

Bearing cover

1

–

. –

Gasker

1

–

– –

AE 3062 E1 Oil seal

1

–

– –

55 Snap ring

3

–

– –

100 Snap ring

1

–

– –

6211 Bearing

1

–

. –

Pad

1

–

. –

Pad

1

–

11

W-03-00100(Z50H.2C)

1

1

变矩器组件 YJH340-7 变矩器组件 YJH340-4

Torque converter

Torque converter

1

1

–

9570001-

– –

Nut

8

13

B-G000930-00001

1

垫圈

Washer

8

9570001-

14

Z50E.2B.1-2

1

螺柱

Double screw bolt

8

9570001-

15

B-G000700-00030

1

螺钉

Screw

10

9570001-

16

B-G000930-00015

1

垫圈 6ZnD

Washer

10

9570001-

序号

No.

零 件 代 号

Part No.

版本

Ver.

名 称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

1

B-G057860-00004

1

螺钉 M10×1×32 Screw

1

9570001-

2

B-G000930-00001

1

垫圈 10

Spring washer

1

9570001-

3

B-G00893A-00016

1

挡圈 80

Snap ring

1

9570001-

4

B-G002760-00016

1

轴承 6208

Bearing

1

9570001-

5

Z50B.2.1-28

1

芯轴

Shaft

1

9570001-

6

Z50B.2.1-27

1

齿轮

Gear

1

9570001-

7

Z50B.2.1-30

1

联接套 (工作泵) Connect sleeve

1

9570001-

8

B-G00893A-00015

1

挡圈 78

Snap ring

1

9570001-

9

B-G09877A-00027

1

油封 FB55×85×12 Oil seal

1

9570001-

10

Z50B.2.1-31

1

垫 Pad

1

9570001-

11

Z50B.2.1-33

1

油泵垫板

Pump pad

1

9570001-

12

Z50B.2.1-26

1

垫 Pad

1

9570001-

13

W-01-00021

1

油泵 (工作)

Pump

1

9570001-

14

B-G061700-00007

1

螺母 M12ZnD

Nut

4

9570001-

15

B-G000930-00003

1

垫圈 12

Spring washer

4

9570001-

16

B-G009010-00004

1

螺柱M12×95

Stud bolt

4

9570001-
