SINOMACH CHANGLIN PY190H motor grader parts catalog 43

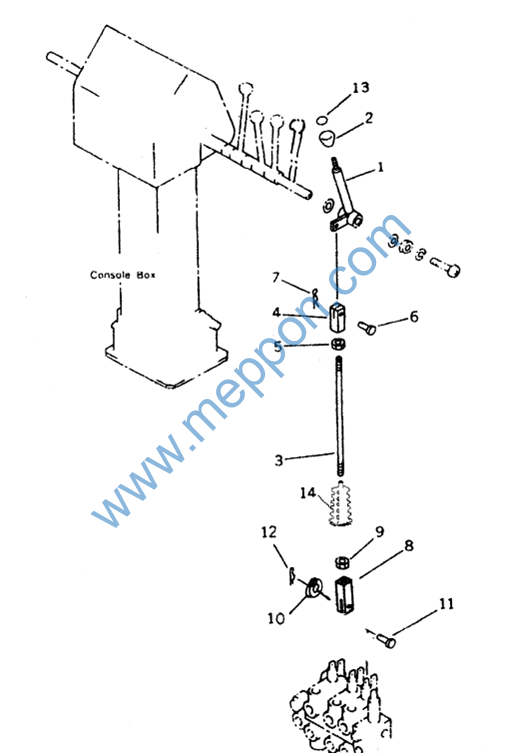

FIG.9801 后松土器操纵杆 RIPPER CONTROL LEVER
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 |
称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
722.15.2 |
1 |
操纵杆 |
LEVER |
1 |
19030729- |
Y |
|
|
190C.15A.5 |
KNOB |
– |
||||||
|
190C.15A-17 |
PIN, SNAP |
– |
||||||
|
190C.15A-8 |
YOKE,L.H.THREAD |
– |
||||||
|
B-G008480-00040 |
PIN |
– |
||||||
|
B-G061720-00018 |
-L-ZnD |
NUT,L.H.THREAD |
– |
|||||
|
722.15-3 |
ROD |
– |
||||||
|
722.15-4 |
YOKE |
– |
||||||
|
B-G061700-00036 |
NUT |
– |
||||||
|
B-G008480-00010 |
SPACER |
– |
||||||
|
190C.15-2 |
PIN |
– |
||||||
|
190C.15A-17 |
PIN, SNAP |
– |
||||||
|
. – |
PLATE, OPERATING |
– |
||||||
|
14 |
722.15-1 |
橡皮套 |
LEATHER CASE |
1 |
19030729- |
Y |

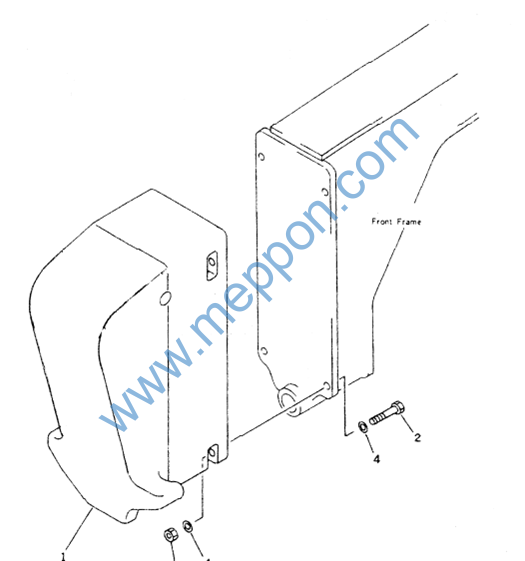

FIG.9901 前配重 PUSH PLATE
90-34
FIG.9901 前配重 PUSH PLATE
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
190C.12H-1 |
1 |
配重 |
Weight |
1 |
19030729- |
Y |
|
2 |
B-Q020490-00015 |
1 |
垫圈 24 |
Washer |
8 |
19030729- |
Y |
|
3 |
B-G061700-00023 |
1 |
螺母 M24 ZnD |
Nut |
4 |
19030729- |
Y |
|
4 |
B-G057820-00135 |
1 |
螺栓 M24×150-10.9 ZnD Bolt |
4 |
19030729- |
Y |
|

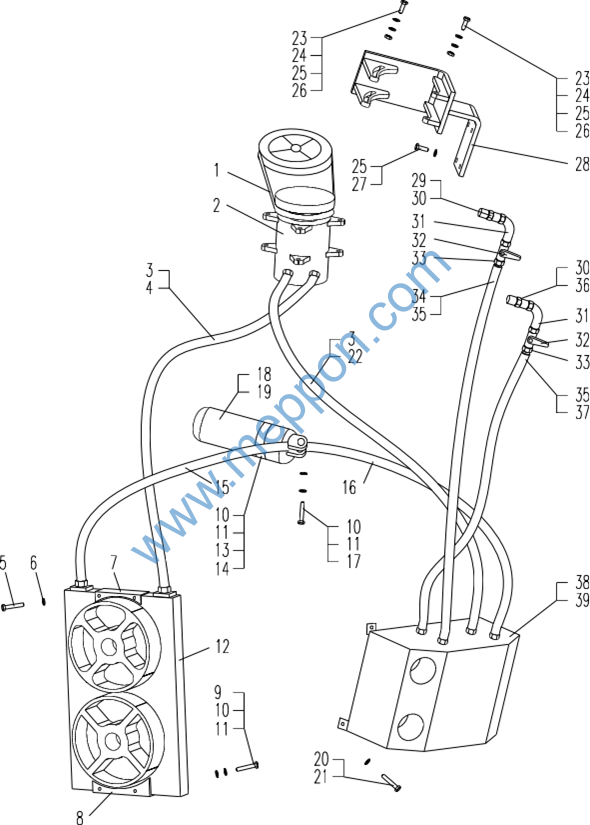

FIG NO.9910 空调系统 AIR-CONDITION SYSTEM
