SINOMACH CHANGLIN ZLM40E wheel loader parts catalog 02
Z40E.4
液力变速箱系统 Hydraulic
Torque
Converter
System
|
序号 |
零件代号 |
零 件 名 称 |
数量 |
|
|
No. |
Part |
Part |
Q’ty |
|
|
35 |
GB/T6170-1986 |
螺母 M20ZnD |
Nut |
2 |
|
36 |
GB97.2-1985 |
垫圈 20ZnD |
Washer |
2 |
|
37 |
Z40E.4-3 |
垫 Pad |
2 |
|
|
38 |
GB/T5782-1986 |
螺栓 M20×150ZnD Bolt |
2 |
|
|
39 |
Z40E.4.6-1 |
接头 |
Joint |
1 |
|
40 |
GB1235-1976 |
O 形圈 11 × 1.9 O-ring |
1 |
|
|
41 |
JB/T2099-1977 Z50B.4.12-1 |
接管 10 铜管Ф6×1 ×2700 |
Joint pipe Copper pipe |
1 1 |
|
42 |
JB/T981-1977 |
螺母 M16×1.5 Nut |
1 |
|
|
43 |
GB/T898-1988 |
螺柱 AM12×35ZnD Bolt |
4 |
|
|
44 |
GB1235-1976 |
O 形圈 24×2.4 O-ring |
4 |
|
|
45 |
Z40E.4.3.1 |
弯管接头 |
Joint |
1 |
|
46 |
403065 |
密封垫 |
Gasket |
1 |
|
47 |
403064 |
压板 |
Clanying plate |
1 |
|
48 |
GB/T5783-1986 |
螺栓 M10×30ZnD Blot |
4 |
|
|
49 |
Z40E.4.7.2 |
加油管 B |
Oil filler pipe |
1 |
|
50 |
JB/T8870-1999 |
喉箍 d60 |
Clamp |
2 |
|
51 |
耐油橡胶低压管Ф42×600 Hose |
1 |
||
|
52 |
Z40E.4.7-1 |
加油管 |
Oil filler pipe |
1 |
|
53 |
Z30.4.14-5 |
拧紧螺杆 |
Screw |
1 |
|
54 |
GB/T119-1986 |
销 D5×40 |
Pin |
1 |
|
55 |
Z30.4.14-4 |
盖 |
Cover |
1 |
|
56 |
Z30.4.14-3 |
油封 |
Oil seel |
1 |
|
57 |
Z40E.4.7.1 |
油尺 |
Oil gauge |
1 |

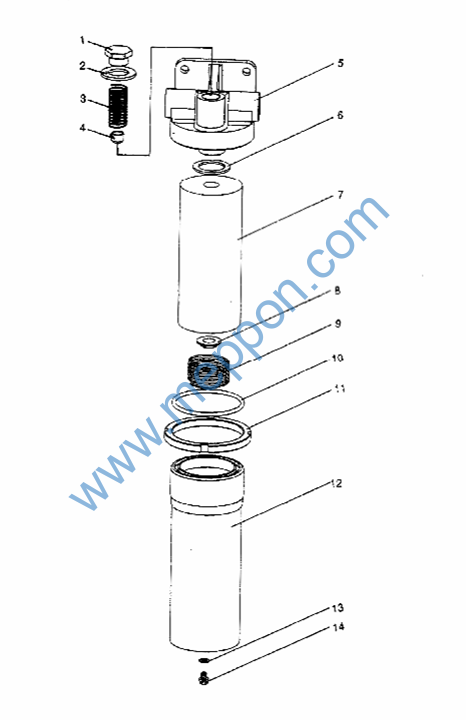

Z30.2.8
精滤油器 Fine
Filter
|
|
Z30.2.8
精滤油器 Fine
Filter
|
序号 No. |
零件代号 Part |
零 |
件 名 称 Part |
数量 Q’ty |
|
1 |
Z30.2.8-7 |
阀盖 |
Valve cover |
1 |
|
2 |
JB/T1002-1977 |
垫圈 30 |
Washer |
1 |
|
3 |
Z30.2.8-6 |
弹簧 |
Spring |
1 |
|
4 |
Z30.2.8-5 |
阀芯 |
Valve core |
1 |
|
5 |
Z30.2.8-8 |
精滤油器上盖 |
Upper cover |
1 |
|
6 |
Z30.2.8-3 |
胶垫 |
Rubber pad |
1 |
|
7 |
XU-B80×100 |
线隙式滤油器 |
Filter |
1 |
|
8 |
Z30.2.8-2 |
座 |
Seat |
1 |
|
9 |
Z30.2.8-1 |
弹簧 |
Spring |
1 |
|
10 |
GB1235-1976 |
O 形圈 105×5.7 |
O-ring |
1 |
|
11 |
Z30.2.8-4 |
螺母 |
Nut |
1 |
|
12 |
Z30.2.8.1 |
精滤器体 |
Filter body |
1 |
|
13 |
JB/T1002-1977 |
垫圈 8 |
Washer |
1 |
|
14 |
JB/T1000-1977 |
螺塞 M8×1 |
plug |
1 |

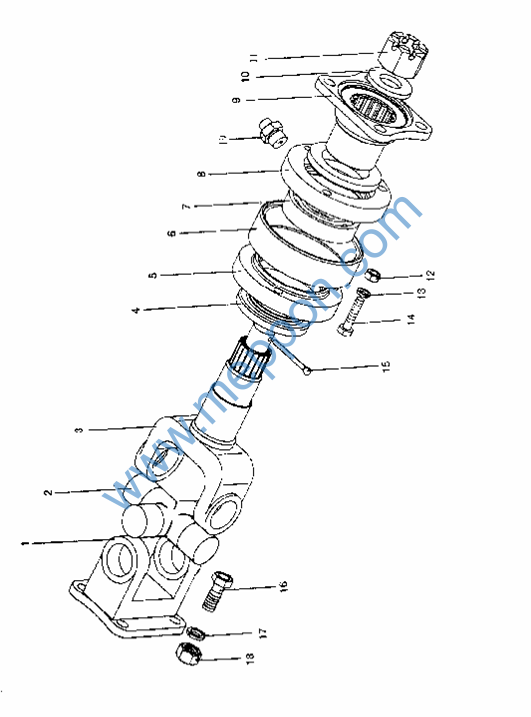

Z40E.5
前传动轴(一)
Front
Drive
Shaft(1)
|
|
Z40E.5
前传动轴(一)
Front
Drive
Shaft(1)
|
序号 |
零件代号 |
零 件 名 称 |
数量 |
|
|
No. |
Part |
Part |
Q’ty |
|
|
1 |
Z30.3B-2 |
突缘叉 |
Flange fork |
1 |
|
2 |
EQ140 |
十字轴总成 |
Cross shaft ass’y |
1 |
|
3 |
Z40E.5.2 |
前传动轴 |
Front drive shaft |
1 |
|
4 |
CA10B-120-2202023 |
支架轴承油封总成 |
Oil seal ass’y |
2 |
|
5 |
CA10B-120-2202090 |
前盖 |
Front cover |
1 |
|
6 |
CA10B-120-2202085 |
垫环 |
Ring |
1 |
|
7 |
GB/T276-1994 |
轴承 6210 |
Bearing |
1 |
|
8 |
CA10B-120-2202092 |
后盖 |
Rear cover |
1 |
|
9 |
Z30.5A.1-2 |
突缘 |
Flange |
1 |
|
10 |
Z30.5A.1-1 |
垫圈 |
Washer |
1 |
|
11 |
|
螺母 M27×1.5ZnD |
Nut |
1 |
|
12 |
GB/T6171-1986 |
螺母 M10×1ZnD |
Nut |
3 |
|
13 |
GB/T93-1987 |
垫圈 10 |
Washer |
3 |
|
14 |
Z30.5.2-2 |
螺栓 M10×1 ×82 |
Bolt |
3 |
|
15 |
GB/T91-1986 |
销 5×50 |
Pin |
1 |
|
16 |
GB/T5785-1986 |
螺栓 M14×1.5×45 |
Bolt |
4 |
|
17 |
GB/T97.2-1985 |
垫圈 14ZnD |
Washer |
4 |
|
18 |
GB/T889-1986 |
螺母 M14×1.5ZnD |
Nut |
4 |
|
19 |
GB/T1153-1989 |
油杯 45° M10×1 |
Grease bitting |
1 |

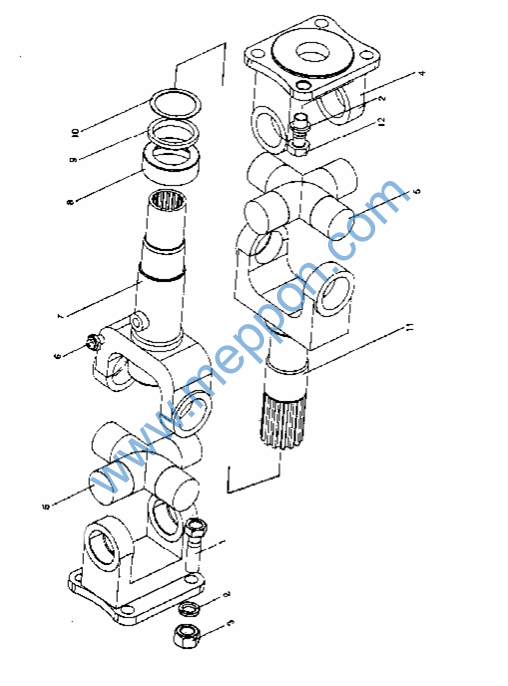

Z40E.5
前传动轴(二)
Front
Drive
Shaft(2)
|
|
