SINOMACH CHANGLIN 936X wheel loader parts catalog 02
工作液压系统(两联)(IV) Hydraulic System(For 2-Spool)(IV)………150
举升油缸 Boom Cylinder……………………………………………………………152
转斗油缸 Bucket Cylinder…………………………………………………………154
油箱 Hydraulic Tank ……………………………………………………………156
*工作液压系统(三联) Hydraulic System(For 3-Spool)(I)
……………158
*工作液压系统(配爪)(I) Hydraulic System(For Fork)(I) ……………160
*工作液压系统(配爪)(II) Hydraulic System(For Fork)(II) …………162
*夹爪油缸 Gripping Jaw Cylinder…………………………………………………164
十五、变速箱操纵系统Transmission Control System ………………………………167
变速操纵系统(Ⅰ) Transmission ControlSystem(Ⅰ) …………………………168
变速操纵系统(Ⅱ) Transmission Control System(Ⅱ) ………………………170
十六、驾驶室Cab …………………………………………………………………………173
驾驶室总成(底板架及安装) Cab Ass’y(Floorboard & Fixing) ……………174
驾驶室总成(室内布置) Cab Ass’y(Indoor Disposal)…………………… 176
驾驶室总成(内饰I) Cab Ass’y(Ornament I) ……………………………178
驾驶室总成(内饰II) Cab Ass’y(Ornament II)
…………………………180
驾驶室总成(罩壳) Cab Ass’y(Cover) ……………………………………182
十七、车身及附件 Automobile Body & Accessories ………………………………185
车身及附件(I)Automobile Body & Accessories(I)………………………………186
车身及附件(II)Automobile Body & Accessories(II)……………………………188
车身及附件(III)Automobile Body & Accessories(III)…………………………190
车身及附件(IV)Automobile Body & Accessories(IV)……………………………192
十八、电气系统Electrical System ………………………………………………195
驾驶室线束总成(道依茨)Cab.Cricutry(deutz)………………………………… 196
驾驶室线束总成(玉柴)Cab.Cricutry(yuchai) ………………………………… 198
仪表面板总成 Instrument Panel Assembly ………………………………… 200
后车架线路总成(道依茨)Rear Vehicle Frame Circuitry(deutz) ……………202
后车架线路总成(玉柴)Rear Vehicle Frame Circuitry(yuchai) ……………204
蓄电池线路总成 Battery Circuitry ……………………………………………206
前车架线路总成 Front Vehicle Frame Circuitry………………………………208
后护罩线路总成 After The Shield Assembly Line ………………………………210
*十九、空调系统Air Condition System……………………………………………………213
空调系统(道依茨)Air Condition System(deutz) ……………………………214
空调系统(玉柴)Air Condition System(yuchai)………………………………216
*二十、暖风系统(加强型) Warm Air Blower(fortified) ……………………………219
暖风系统(加强型)(道依茨)Warm Air Blower(fortified)(deutz)…………220
暖风系统(加强型)(玉柴)Warm Air Blower(fortified)(yuchai)
…………222
注:”*“表示该部件为选装件
一、发动机系统
Engine System

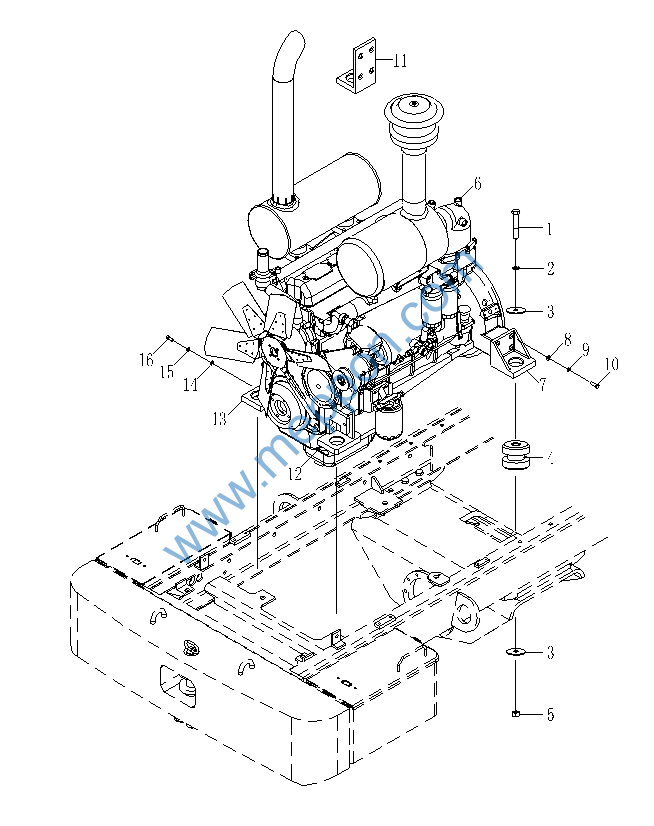

发动机系统(Ⅰ) Engine System(Ⅰ)
发动机系统(Ⅰ) Engine System(Ⅰ)
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
1 |
B-G057850-00035 |
1 |
螺M22x1.5×130-10.9ZnD |
Bolt |
4 |
00005- |
|
2 |
B-G000930-00009 |
1 |
垫圈22 |
Washer |
4 |
00005- |
|
3 |
Z30.1-10 |
1 |
垫圈 |
Washer |
8 |
00005- |
|
4 |
Z30.1.2 |
1 |
缓冲橡胶垫 |
Cushion |
4 |
00005- |
|
5 |
B-G061710-00018 |
1 |
螺母M22x1.5ZnD |
Nut |
4 |
00005- |
|
6 |
W-02-00121 |
1 |
柴油机|YC6B125-T20 |
Diesel engine(yuchai) |
1 |
00005- |
|
W-02-00379 |
1 |
柴油机|WP6G125E22 |
Diesel engine(daoyici) |
1 |
00005- |
||
7 |
发动机支座(玉柴自带) |
00005- |
|||||
936.1.4A |
1 |
后右支座(道依茨) |
Support |
1 |
00005- |
||
8 |
1 |
||||||
B-G00097B-00004 |
1 |
垫圈12 ZnD(道依茨) |
Washer |
6 |
00005- |
||
9 |
|||||||
B-G000930-00003 |
1 |
垫圈12(道依茨) |
Washer |
6 |
00005- |
||
10 |
|||||||
B-G057830-00034 |
1 |
螺栓M12×30ZnD(道依茨) |
Washer |
6 |
00005- |
||
11 |
936.1.1A |
1 |
后左支座(道依茨) |
Support |
1 |
00005- |
|
12 |
936.1.3C |
1 |
前右支座(道依茨) |
Support |
1 |
00005- |
|
13 |
936.1.2 |
前左支座(道依茨) |
Support |
1 |
00005- |
||
14 |
B-G00097B-00024 |
1 |
垫圈18ZnD(道依茨) |
Washer |
6 |
00005- |
|
15 |
B-G000930-00007 |
1 |
垫圈18(道依茨) |
Washer |
6 |
00005- |
|
16 |
B-G057830-00222 |
1 |
螺栓M18x50ZnD(道依茨) |
Bolt |
8 |
00005- |
|

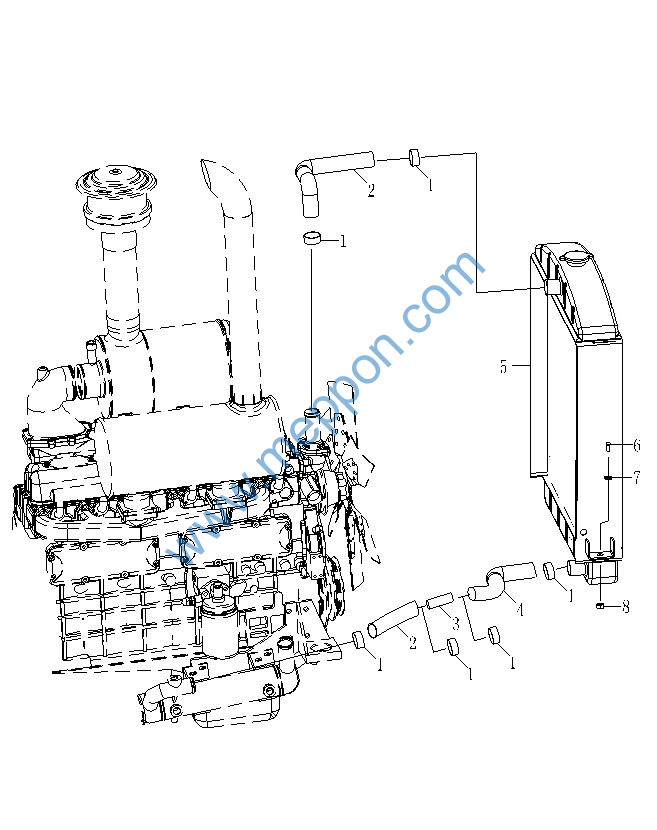

发动机系统(Ⅱ) Engine System(Ⅱ)
