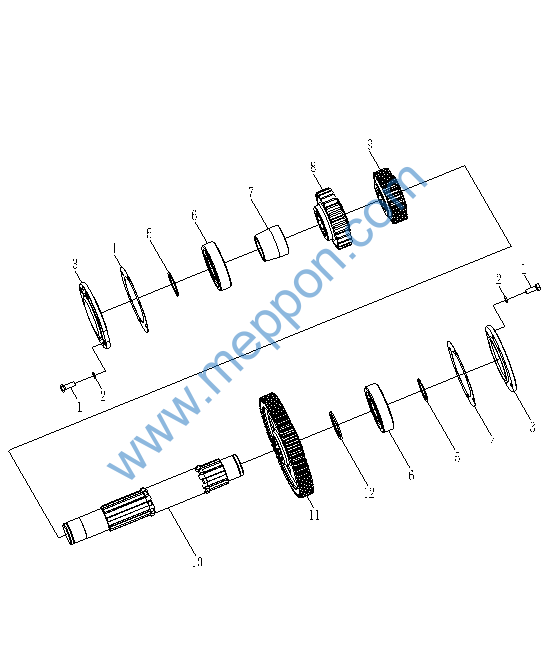

序号

No.

零
件
代
号

Part No.

版本

Ver.

名
称

Part Name

数量

Q’ty

适用车号

Suit Num.

选装

Cho

Z50E.4.1

1

输出轴总成

Output Shaft Ass’y

1

0007-

1

B-G000910-00049

1

销 5×45ZnD

Pin

2

0007-

2

Z50B.4.1-6

1

垫圈

Washer

2

0007-

3

Z50B.4.1A-1

1

前法兰

Front flange

1

0007-

4

B-G057830-00010

1

螺栓 M10×30ZnD

Bolt

12

0007-

5

B-Q020710-00088

1

O形密封圈 65×5.7

O-ring

2

0007-

6

B-G000930-00001

1

垫圈 10

Spring washer

12

0007-

7

Z50B.4.1-2

1

轴承盖

Bearing cover

2

0007-

8

Z50B.4.1-3A

1

纸垫

Paper pad

4

0007-

Z50B.4.1-3B

1

纸垫

Paper pad

4

0007-

Z50B.4.1-3C

1

纸垫

Paper pad

4

0007-

9

W-15-00115

1

油封AE3618A0(NOK)

Oil seal

2

0007-

10

B-G002970-00019

1

滚动轴承32212

Bearing

2

0007-

11

Z50E.4.1-1AL

1

齿轮

Gear

1

0007-

12

B-G00894A-00023

1

挡圈 82

Retainer

1

0007-

13

Z50B.4.1A-2

1

输出轴

Output shaft

1

0007-

14

Z50E.4E.1-5

1

后法兰

Rear flange

1

0007-

15

B-G094590-00003

1

螺母 M24×1.5ZnD

Nut

2

0007-

序号

No.

零
件
代
号

Part No.

版本

Ver.

名
称

Part Name

数量

Q’ty

适用车号

Suit Num.

选装

Cho

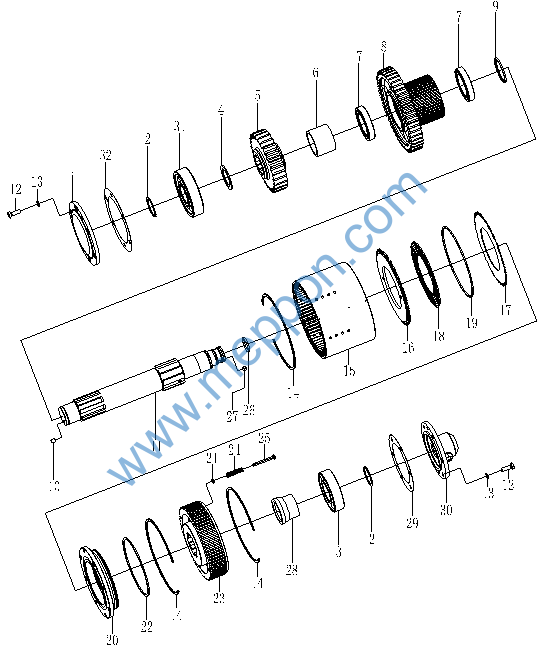

956.4A.1

1

二、三档总成

2nd and 3rd Clutch Ass’y

1

0007-

1

Z50B.4.4A-5

1

轴承盖

Bearing cover

1

0007-

2

Z50B.4.2-19A

1

纸垫

Paper pad

4

0007-

Z50B.4.2-19B

1

纸垫

Paper pad

4

0007-

Z50B.4.2-19C

1

纸垫

Paper pad

4

0007-

3

B-G00894A-00019

1

挡圈 55

Snap ring

2

0007-

4

B-G002760-00032

1

轴承 6311

Bearing

2

0007-

5

Z50B.4.2-2

1

垫环

Spacer ring

1

0007-

6

Z50E.4.2-1AL

1

输出齿轮

Output gear

1

0007-

7

Z50B.4.2-25

1

轴套

Bushing

1

0007-

8

B-G002760-00010

1

轴承 6013

Bearing

2

0007-

9

956.4A.1-1L

1

二档离合器齿轮

Gear

1

0007-

10

Z50B.4.2-14

1

垫环

Spacer ring

1

0007-

11

Z50B.4.2-11

1

卡环

Snap ring

4

0007-

12

Z50B.4.3-4

1

一挡压盖

1st cover

1

0007-

13

Z50B.4.2-7

1

主动摩擦片

Drive disc

20

0007-

14

Z50B.4.2-8

1

从动摩擦片

Driven disc

18

0007-

15

Z50B.4.2-15

1

波形弹簧

Wave spring

36

0007-

16

Z50B.4.2-12

1

活塞

Piston

2

0007-

17

Z50B.4.2-23

1

挡圈

Snap ring

8

0007-

18

Z50B.4.2-24

1

矩形密封圈

Searing

2

0007-

19

Z50B.4.2-13

1

缸体

Cylinder body

1

0007-

20

Z50B.4.2-5

1

齿圈

Gear ring

1

0007-

21

Z50B.4.2-10

1

活塞回位弹簧

Retraction spring

8

0007-

22

Z50B.4.2-9

1

活塞回位拉杆

Retraction drag rod

8

0007-

23

B-G057830-00010

1

螺栓 M10×30ZnD

Bolt

12

0007-

24

B-G000930-00001

1

垫圈 10

Spring washer

12

0007-

25

Z50B.4.2-22

1

压盖

Cover

1

0007-

26

Z50B.4.2-21

1

轴

Shaft

1

0007-

27

Z30.4.1-19

1

油封环

Oil seal ring

4

0007-

28

B-G000780-00006

1

螺钉 M12×12

Screw

2

0007-

29

Z50B.4.2-16

1

轴承垫

Bearing washer

1

0007-

30

B-G002760-00009

1

轴承 6012

Bearing

1

0007-

31

Z50E.4.2-3L

1

三挡离合器齿轮

Gear

1

0007-

32

B-G002760-00008

1

轴承 6011

Bearing

1

0007-

33

Z50B.4.2-18

1

轴套

Bushing

1

0007-

34

Z50B.4.2-20

1

轴承盖

Bearing cover

1

0007-

序号

No.

零
件
代
号

Part No.

版本

Ver.

名
称

Part Name

数量

Q’ty

适用车号

Suit Num.

选装

Cho

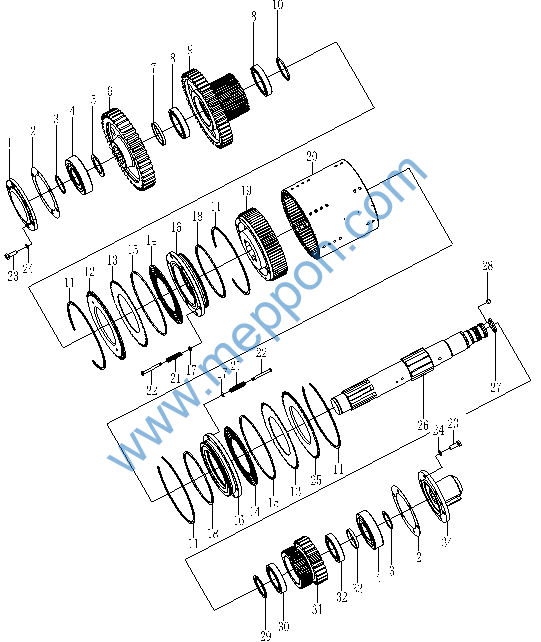

Z50E.4.3

1

一档总成

1st Clutch Ass’y

1

0007-

1

Z50B.4.3A-1

1

轴承盖

Bearing cover

1

0007-

2

B-G00894A-00019

1

挡圈 55

Snap ring

2

0007-

3

B-G002760-00032

1

滚动轴承 6311

Bearing

1

0007-

4

Z50B.4.2-2

1

垫环

Spacer ring

1

0007-

5

Z50B.4.3A-2L

1

输出齿轮

Output gear

1

0007-

6

Z50B.4.3-2

1

轴套

Bushing

1

0007-

7

B-G002760-00010

1

滚动轴承 6013

Bearing

2

0007-

8

Z50E.4.3-2L

1

齿轮

Gear

1

0007-

9

Z50B.4.2-14

1

垫环

Spacer ring

1

0007-

10

Z30.4.4A-11

1

螺堵

Plug

1

0007-

11

Z50E.4.3-5A

1

轴

Shaft

1

0007-

12

B-G057830-00010

1

螺栓 M10×30ZnD

Bolt

12

0007-

13

B-G000930-00001

1

垫圈 10

Washer

12

0007-

14

Z50B.4.2-11

1

卡环

Snap ring

3

0007-

15

Z50B.4.3-5

1

齿圈

Gear ring

1

0007-

16

Z50B.4.3-4

1

一挡压盖

1st cover

1

0007-

17

Z50B.4.2-7

1

主动摩擦片

Drive disc

14

0007-

18

Z50B.4.2-8

1

从动摩擦片

Driven disc

13

0007-

19

Z50B.4.2-15

1

波形弹簧

Wave spring

26

0007-

20

Z50B.4.2-12

1

活塞

Piston

1

0007-

21

Z50B.4.2-23

1

挡圈

Retainer

4

0007-

22

Z50B.4.2-24

1

矩形密封圈

Seal ring

1

0007-

23

Z50E.4.3-3

1

缸体

Cylinder body

1

0007-

24

Z50B.4.2-10

1

活塞回位弹簧

Retraction spring

4

0007-

25

Z50B.4.2-9

1

活塞回位拉杆

Retraction drag rod

4

0007-

26

Z30.4.1-19

1

油封环

Oil seal ring

2

0007-

27

B-G000780-00006

1

螺钉 M12×12

Screw

1

0007-

28

Z50E.4.3-4

1

隔套

Collar

1

0007-

29

Z50B.4.2-19A

1

纸垫

Paper pad

2

0007-

Z50B.4.2-19B

1

纸垫

Paper pad

2

0007-

Z50B.4.2-19C

1

纸垫

Paper pad

2

0007-

30

Z50B.4.3-7

1

轴承盖

Bearing cover

1

0007-

31

W-03-00102

1

滚动轴承 6411(TWB)

Bearing

1

0007-

32

Z50B.4.3A-4A

1

纸垫

Paper pad

2

0007-

Z50B.4.3A-4B

1

纸垫

Paper pad

2

0007-

Z50B.4.3A-4C

1

纸垫

Paper pad

2
