SINOMACH CHANGLIN WZC20 backhoe loader parts catalog 07
WZ30.8D 后桥安装 Rear Axle-Mounting
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
W-03-00009 |
1 |
后桥28.28M |
Rear axle |
1 |
||
|
2 |
B-G061710-00017 |
1 |
螺母M22×1.5ZnD |
Nut |
20 |
||
|
3 |
B-G020490-00013 |
1 |
垫圈22 |
Washer |
20 |
||
|
4 |
B-G057850-00026 |
1 |
螺栓M20×235-10.9ZnD |
Bolt |
8 |
||
|
5 |
B-G020490-00011 |
1 |
垫圈20 |
Washer |
16 |
||
|
6 |
WZ30.8-1 |
1 |
板 |
Plate |
2 |
||
|
7 |
B-G061710-00013 |
1 |
螺母M20×1.5-10ZnD |
Nut |
8 |
||
|
8 |
B-G061730-00010 |
1 |
螺母M20×1.5-10ZnD |
Nut |
8 |
||

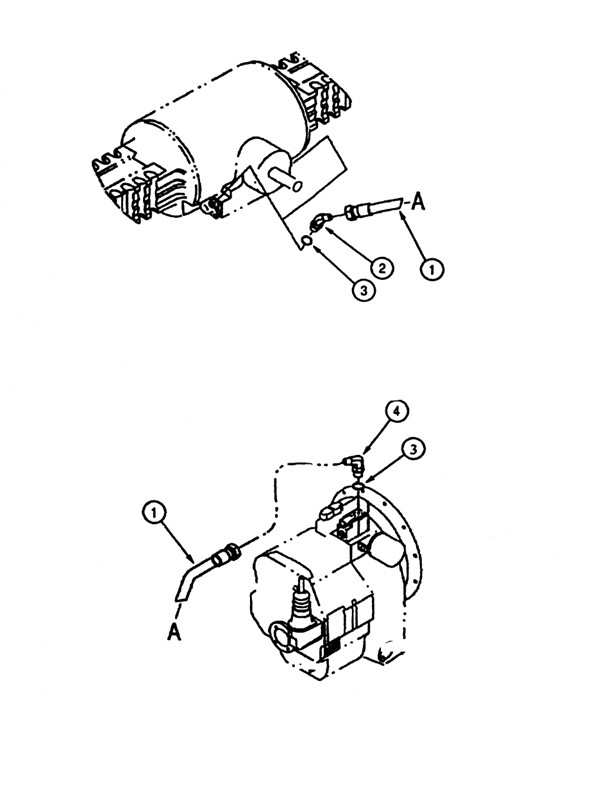

WZ30.8D 后桥差速锁管路 Rear Axle-Differential Lock
WZ30.8D 后桥差速锁管路 Rear Axle-Differential Lock
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
W-16-00376 |
1 |
软管总成 |
Hose Ass’y |
1 |
||
|
2 |
WZ30.8D.2 |
1 |
45°角接头 |
Elbow,45 |
1 |
||
|
3 |
WZ30.8-2 |
1 |
O形圈11.89×1.98 |
O-Ring |
2 |
||
|
4 |
WZ30.8D.1 |
1 |
直角接头 |
Elbow,90° |
1 |
||

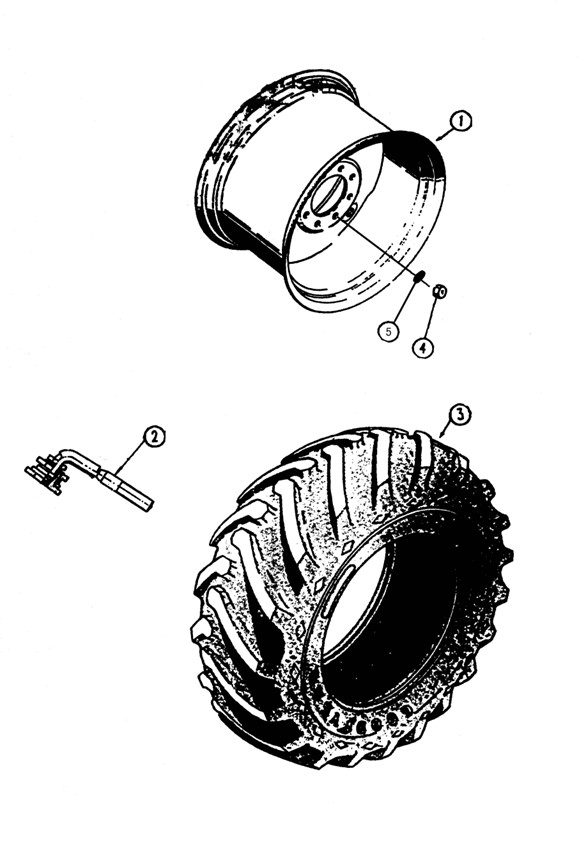

WZ30.8D 后轮胎轮辋总成 Rear Wheel Ass’y
WZ30.8D 后轮胎轮辋总成 Rear Wheel Ass’y
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
WZ30.8.1 |
1 |
轮毂 |
Rim-Spoke Ass’y |
2 |
||
|
2 |
B-G039000-00001 |
1 |
气门嘴Z4-01-1 |
Valve Stem |
2 |
||
|
3 |
W-14-00009 |
1 |
轮胎 |
Tire |
2 |
||
|
4 |
B-G061700-00017 |
1 |
螺母M22×1.5-10ZnD |
Nut |
20 |
||
|
5 |
B-Q020490-00013 |
1 |
垫圈22 |
Washer |
20 |
||

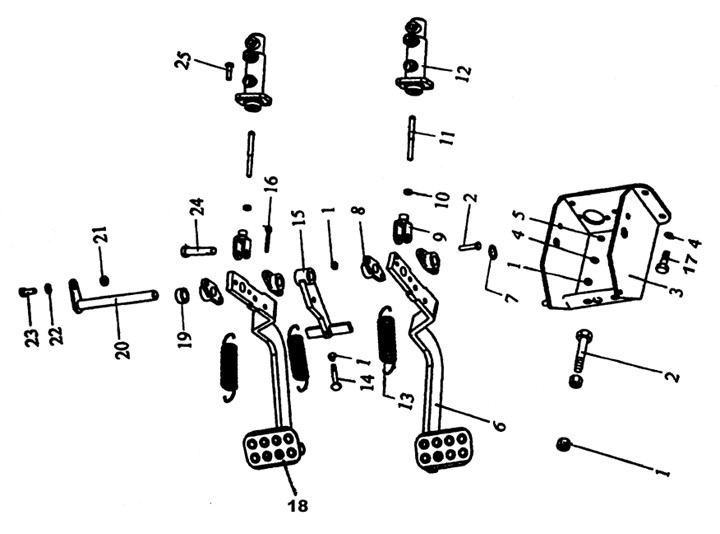

WZC20.9 制动系统（一） Brake System（1）
