SINOMACH CHANGLIN WZC20 backhoe loader parts catalog 18

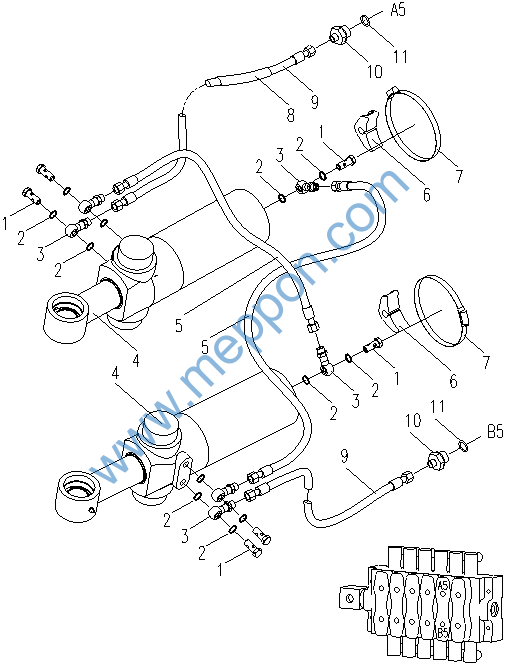

WZC20.23 液压系统（挖掘支腿）
Hydraulic System（Backhoe Stabilizer）
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
WZC20.23.2A |
1 |
挖掘支腿油缸 |
Stabilizer cylinder |
2 |
||
|
2 |
B-J010020-00003 |
1 |
垫圈14 |
Washer |
4 |
||
|
3 |
WZC20.14-2 |
1 |
接头体 |
Joint body |
4 |
||
|
4 |
B-J088700-00005 |
1 |
喉箍d140 |
Clamp |
2 |
||
|
5 |
W-16-00685 |
1 |
软管总成 |
Hose ass’y |
2 |
||
|
6 |
W-16-00524 |
1 |
软管总成 |
Hose ass’y |
2 |
||
|
7 |
WZC20.23-3 |
1 |
接头体 |
Joint body |
8 |
||
|
8 |
B-J010020-00007 |
1 |
垫圈22 |
Washer |
8 |
||
|
9 |
W-15-00322 |
1 |
双向液压锁|VBPDL/T12 |
Hydraulic lock |
2 |
||
|
10 |
B-G000930-00017 |
1 |
垫圈8 |
Washer |
4 |
||
|
11 |
B-G057830-00149 |
1 |
螺栓M8×45ZnD |
Bolt |
4 |
||
|
12 |
W-16-00686 |
1 |
软管总成 |
Hose ass’y |
4 |
||
|
13 |
WZC20.23-11 |
1 |
接头体 |
Joint body |
4 |
||
|
14 |
WZ30.14-12 |
1 |
O形圈 |
O ring |
4 |
||
|
15 |
B-G057830-00015 |
1 |
螺栓M10×40ZnD |
Bolt |
4 |
||
|
16 |
B-G000930-00001 |
1 |
垫圈10 |
Washer |
4 |
||
|
17 |
WZC20.23.10-1 |
1 |
压板 |
Plate |
2 |
||
|
18 |
WZC20.23.10-2 |
1 |
橡胶夹 |
Rubber plate |
2 |
||

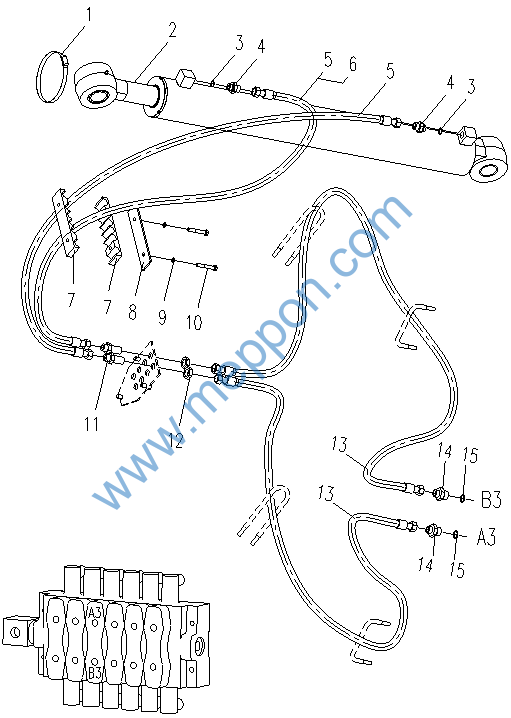

WZC20.23 液压系统（挖掘摆动）
Hydraulic System（Backhoe Swing）
WZC20.23 液压系统（挖掘摆动）
Hydraulic System（Backhoe Swing）
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
B-J009990-00003 |
1 |
螺栓M14×1.5×35 |
Bolt |
6 |
||
|
2 |
B-J010020-00003 |
1 |
垫圈14 |
Washer |
12 |
||
|
3 |
WZC20.23.5A |
1 |
接头体 |
Joint body |
6 |
||
|
4 |
WZC20.23.4A |
1 |
摆动油缸 |
Swing cylinder |
2 |
||
|
5 |
W-16-00381 |
1 |
软管总成 |
Hose ass’y |
2 |
||
|
6 |
WZ30.23-3 |
1 |
橡胶夹 |
Rubber plate |
2 |
||
|
7 |
B-J088700-00008 |
1 |
喉箍d160 |
Clamp |
2 |
||
|
8 |
W-12-00136 |
1 |
保护套JGHT-18×10 |
Protective hose |
1 |
||
|
9 |
W-16-01102 |
1 |
软管总成 |
Hose ass’y |
2 |
||
|
10 |
WZ30.23D-6 |
1 |
接头体 |
Joint body |
2 |
||
|
11 |
WZ30.14-12 |
1 |
O形圈 |
O ring |
2 |
||

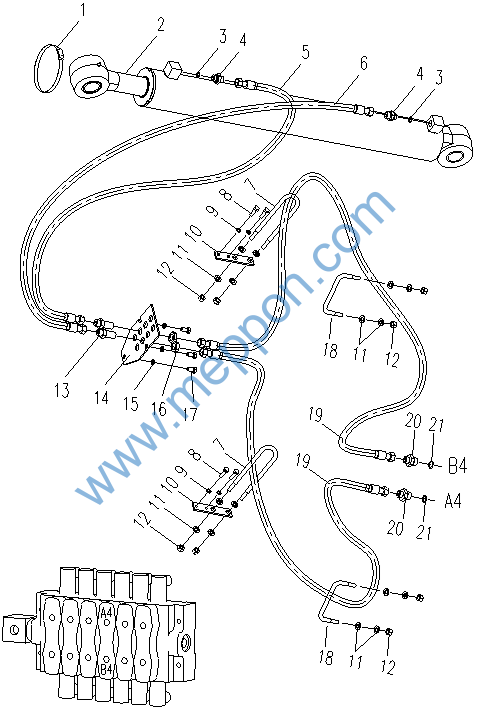

WZC20.23 液压系统（挖掘动臂）
Hydraulic System（Backhoe Boom）
WZC20.23 液压系统（挖掘动臂）
Hydraulic System（Backhoe Boom）
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
B-J088700-00005 |
1 |
喉箍d140 |
Clamp |
1 |
||
|
2 |
WZC20.23.6A |
1 |
挖掘动臂油缸 |
Boom cylinder |
1 |
||
|
3 |
WZ30.23-13 |
1 |
O形圈 |
O ring |
2 |
||
|
4 |
WZC20.23-12 |
1 |
接头体 |
Joint body |
2 |
||
|
5 |
W-16-00533 |
1 |
软管总成4SP/13×21513 -08-22/21513-08-22×1600 |
Hose ass’y |
1 |
||
|
6 |
W-16-00532 |
1 |
软管总成4SP/13×21513 -08-22/21513-08-22×1100 |
Hose ass’y |
1 |
||
|
7 |
WZC20.23-13 |
2 |
U型螺栓 |
U- Bolt |
2 |
||
|
8 |
B-G057830-00137 |
1 |
螺栓M8×16ZnD |
Bolt |
4 |
||
|
9 |
B-G000930-00017 |
1 |
垫圈8 |
Washer |
4 |
||
|
10 |
WZC20.23-10 |
1 |
板 |
Plate |
2 |
||
|
11 |
B-G00097B-00002 |
1 |
垫圈10 |
Washer |
16 |
||
|
12 |
B-G061700-00003 |
1 |
螺母M10ZnD |
Nut |
8 |
||
|
13 |
WZC20.23-5 |
1 |
接头体 |
Joint body |
2 |
||
|
14 |
WZC20.23-4 |
1 |
板 |
Plate |
1 |
||
|
15 |
B-G000930-00003 |
1 |
垫圈12 |
Washer |
3 |
||
|
16 |
B-J009940-00004 |
1 |
螺母M22×1.5ZnD |
Nut |
2 |
||
|
17 |
B-G057830-00030 |
1 |
螺栓M12×25ZnD |
Bolt |
3 |
||
|
18 |
WZC20.23-14 |
2 |
U型螺栓 |
U- Bolt |
2 |
||
|
19 |
W-16-00681 |
1 |
软管总成4SP/13×21513 -08-22/21513-08-22×1800 |
Hose ass’y |
2 |
||
|
20 |
WZ30.23D-5 |
1 |
接头体 |
Joint body |
2 |
||
|
21 |
WZ30.14-12 |
1 |
O形圈 |
O ring |
2 |
||
WZC20.23 液压系统（挖掘斗杆）
Hydraulic System（Backhoe Dipper Handle）
