识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

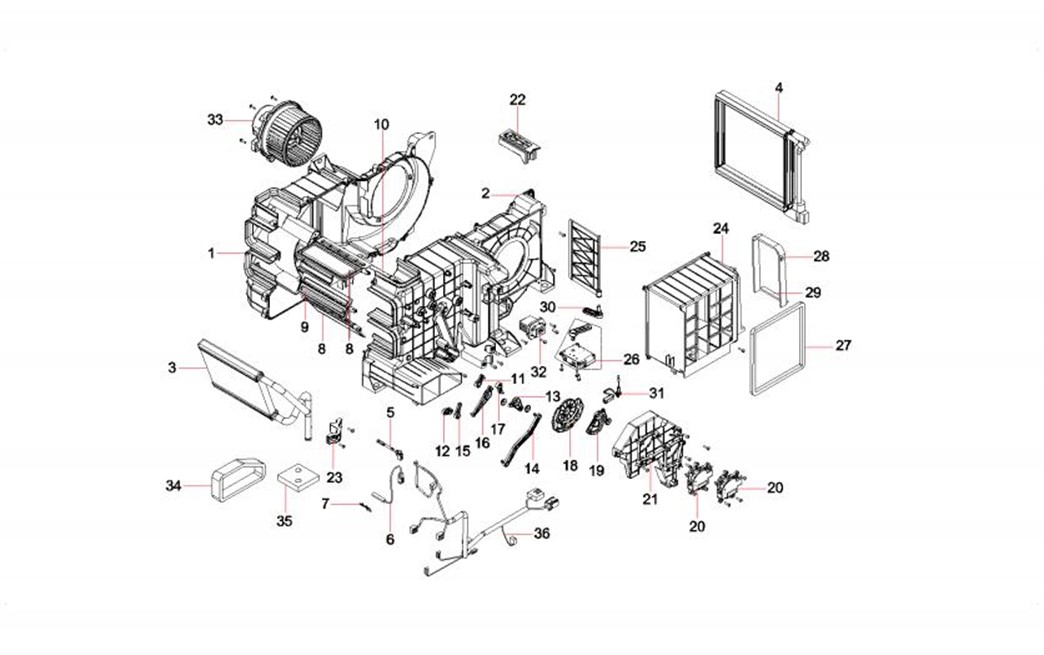

8-21-1

1

60208676

1

后壳体

Housing, rear

8-21-2

2

60208677

1

前壳体

Housing, front

8-21-3

3

60208678

1

暖风芯体

Core, heater

8-21-4

4

60208679

1

蒸发芯体

Core, evaporator

8-21-5

5

60208680

1

除霜传感器

Sensor, defrost

8-21-6

6

60208681

1

水温传感器

Sensor, water temperature

8-21-7

7

60208682

1

水温传感器支架

Bracket, sensor, water temperature

8-21-8

8

60208683

2

出风风门

Door, vent

8-21-9

9

60208684

1

模式风门

Door, air, mode

8-21-10

10

60208685

1

调温风门

Door, regulation, temperature

8-21-11

11

60208686

1

出风风门连杆

Lever, door, vent

8-21-12

12

60208687

1

吹脚风门连杆

Lever, louver for feet

8-21-13

13

60208688

1

连杆

Rod, connecting

8-21-14

14

60208689

1

连杆

Rod, connecting

8-21-15

15

60208690

1

模式风门连杆

Lever, door, air

8-21-16

16

60208691

1

连杆

Rod, connecting

8-21-17

17

60208692

1

调温风门连杆

Lever, temperature, air door

8-21-18

18

60208693

1

模式凸轮

Cam, mode

8-21-19

19

60208694

1

调温凸轮

Cam, temperature-adjusting

8-21-20

20

60208695

2

风门电机

Door, air

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

8-23-21

21

60208696

1

风门电机固定座

Door, air

8-23-22

22

60208697

1

冷媒管固定座

Seat, fixing, refrigerant pipe

8-23-23

23

60208698

1

水管固定座

Bracket, pipe

8-23-24

24

60208699

1

进气壳体

Housing, air inlet

8-23-25

25

60208700

1

进气风门

Door, intake, air

8-23-26

26

60208701

1

进气风门电机

Motor, door, intake

8-23-27

27

60208702

1

回风口密封海绵

Foam, sealing

8-23-28

28

60208703

1

新风口密封海绵

Foam, seal, fresh air

8-23-29

29

60208704

1

新风口密封海绵

Foam, seal, fresh air

8-23-30

30

60208705

1

进气风门连杆

Lever, door, intake

8-23-31

31

60208706

1

室温传感器

Sensor, temperature, indoor

8-23-32

32

60208707

1

调速电阻

Resistor, speed adjusting

8-23-33

33

60208708

1

风机马达总成

Motor AS, fan

8-23-34

34

60208709

1

吹脚风口密封海绵

Sponge, sealing, floor air outlet

8-23-35

35

60208710

1

水管密封海绵

Foam, seal, pipe

8-23-36

36

60208711

1

蒸发器线束总成

Harness AS, evaporator

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

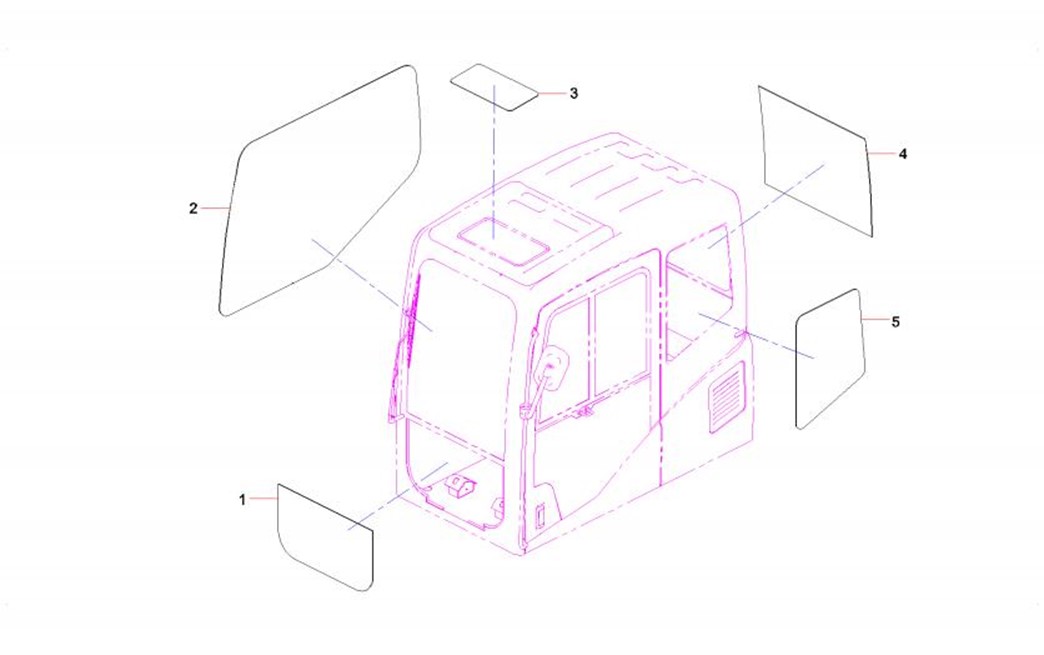

8-25-1

1

A230300000101

1

前围下固定窗玻璃

Glass, windshield, lower

8-25-2

2

A230300000107

1

右侧固定玻璃

Glass, fixing, right

8-25-3

3

A230300000108

1

顶天窗玻璃

Glass, roof window

8-25-4

4

A230300000103

1

驾驶窗后玻璃

Glass, rear, cab window

8-25-5

5

A230300000105

1

左侧后固定玻璃

Glass, fixed, rear left

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

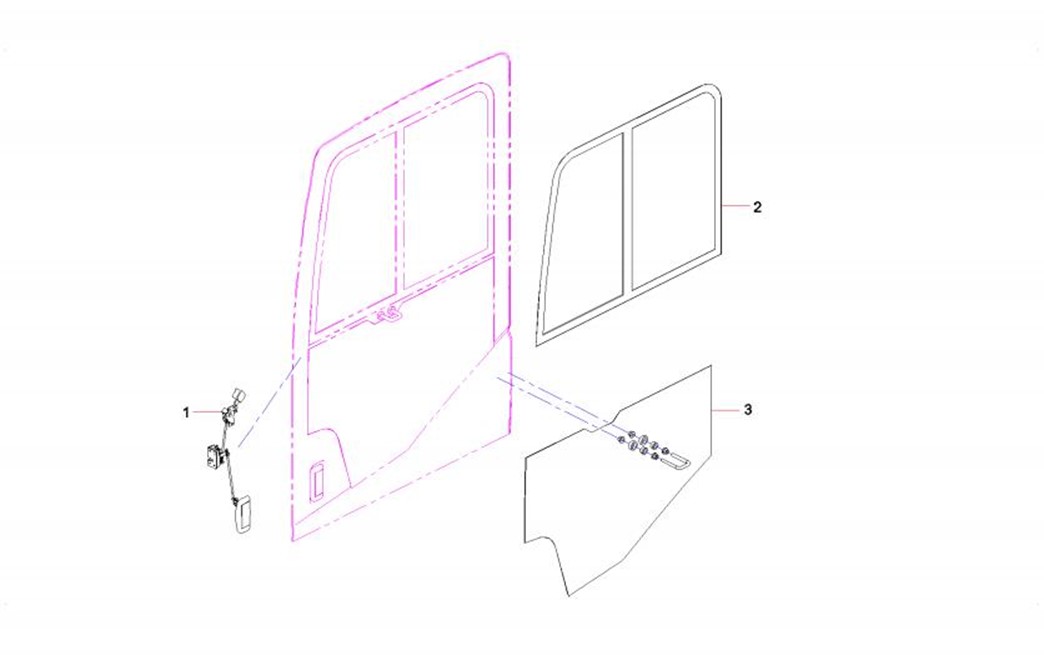

8-27-1

1

A229900003762

1

门锁总成

Coverplate AS

8-27-2

2

A230300000100

1

前围上移玻璃

Glass, windshield, upper

8-27-3

3

A230300000104

1

左侧下固定玻璃

Glass, fixed, left lower

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

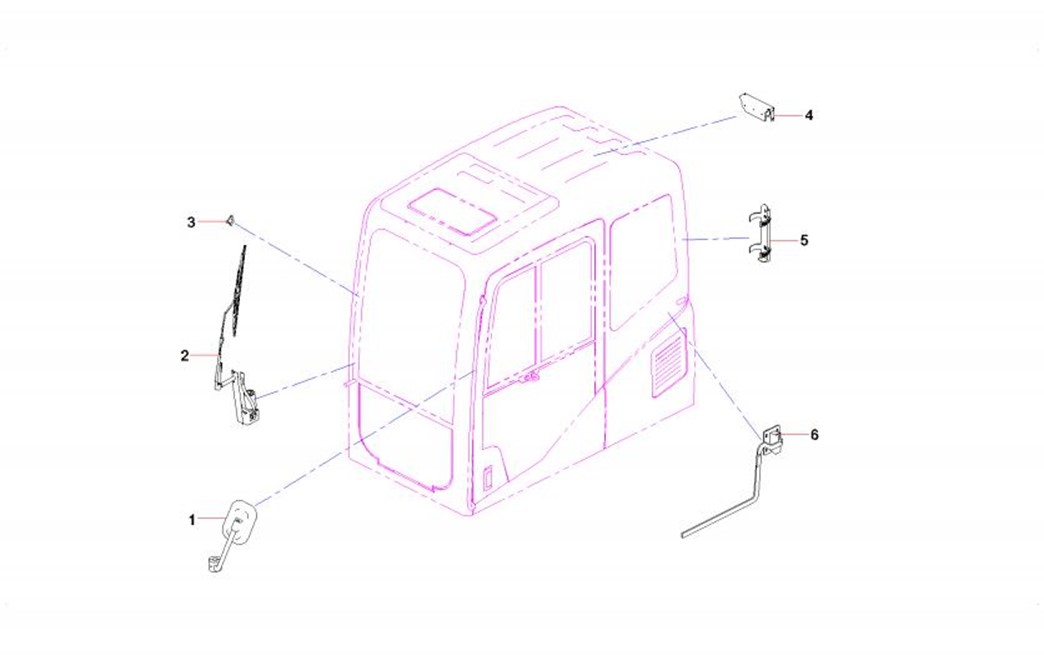

8-29-1

1

A229900001398

1

后视镜总成

Bracket, rear view mirror

8-29-2

2

A229900008240

1

刮水器总成

Wiper AS

8-29-3

3

A229900004761

1

雨刮器喷嘴

Nozzle, washer

8-29-4

4

A229900003883

1

平衡器

Balancer

8-29-5

5

60001289

1

简易式ABC干粉灭火器

Fire extinguisher, powder

8-29-6

6

A222200000094

1

门反扣锁总成

Lock AS, cab door

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

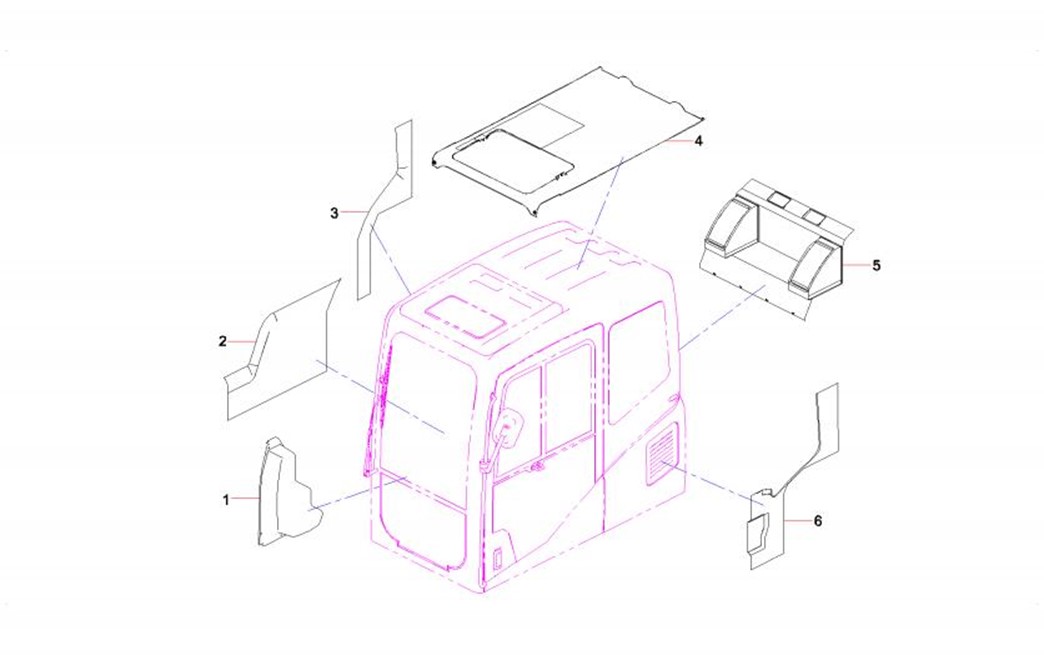

8-31-1

1

60067381

1

右侧内装饰件(前)

Decoration, interior, right

8-31-2

2

60067382

1

右侧内装饰件(中)

Decoration, interior, right

8-31-3

3

60067380

1

右侧内装饰件(后)

Decoration, interior, right

8-31-4

4

60067994

1

顶内装饰件

Trim, top

8-31-5

5

60067995

1

后内装饰件

Decoration, rear, inner

8-31-6

6

60067996

1

左侧装饰件

Trimming, left

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

8-32-1

1

60151839

1

柴油滤清器滤芯

Diesel cleaner filter core

8-32-2

2

B210780000418

10

管接头

Connector, pipe

8-32-3

3

13114729

1

0.7方铲斗

bucket assemblySY140C1I2K.3.4

8-32-4

4

12424692

1

斗杆

ARMSY125C6C2K.3.3A

8-32-5

5

A229900003881

1

顶防护装置

Top Protective Equipment

8-32-6

6

A229900003882

1

前防护装置

Front Protective Equipment

8-32-7

7

13121557

1

车身线束

Vehicle Body

8-32-8

8

13120921

1

驾驶室线束

Cab HarnessSY140C1I2K.5.1

8-32-9

9

12985107

1

动臂左侧贴花

Movable Arm Left Side

8-32-10

10

12985112

1

动臂右侧贴花

Movable Arm Right Side

8-32-11

11

13114385

1

机身左贴花

Machine left Marking SY140C1I2K

8-32-12

12

13114392

1

机身右贴花

Machine right Marking

8-32-13

13

60210572

1

节能高效英文版贴花

dacal

8-32-14

14

12896881

1

配重贴花

Counterweight

8-32-15

15

12727593

1

配重反光膜

Film, reflective, counterweight

8-32-16

16

12727594

1

配重反光膜

Film, reflective, counterweight

8-32-17

17

11826337

1

三一挖掘机保养及保修手册(英)

Manual, operation and

8-32-18

18

12535566

1

三一液压挖掘机操作与保养光碟(

CD, excavator maintenance

8-32-19

19

13000849

1

SY115C/ 履带式液压挖掘机操作保

Crawler Hydraulic Excavator SOM

8-32-20

20

12971165

1

三一显示屏

Sany Encourage Control Display
