SANY SY215C SY215C9M2KS EXCAVATOR parts catalog 20
|

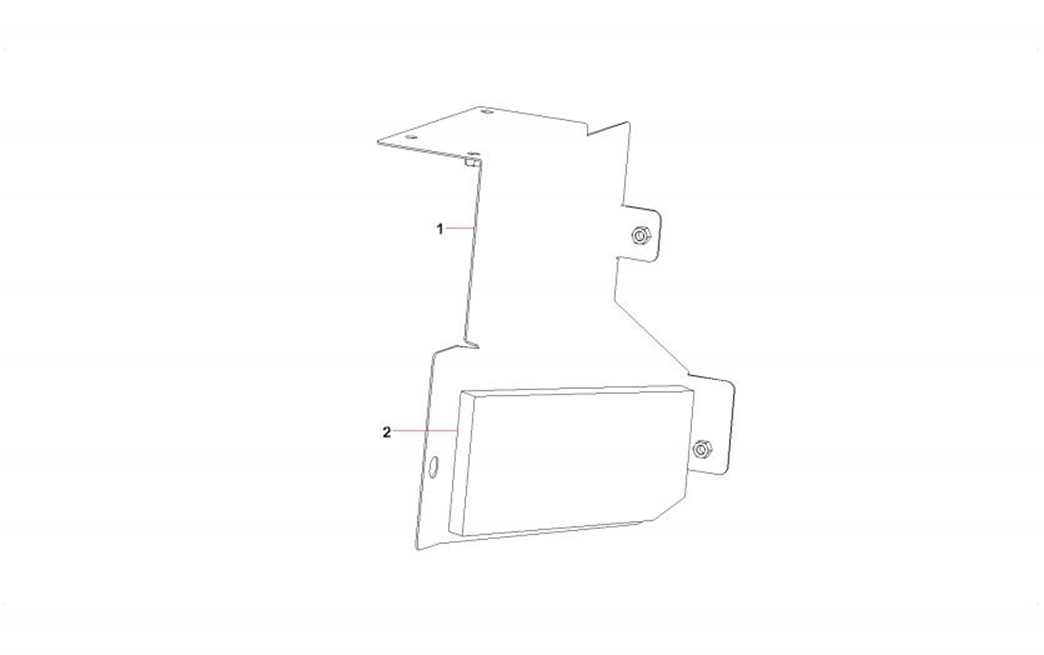

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
2-205-1 |
1 |
A820699000192 |
1 |
密封板 |
Plate, sealing |
|
2-205-2 |
2 |
10207834 |
1 |
支架主体 |
Body, bracket |
|

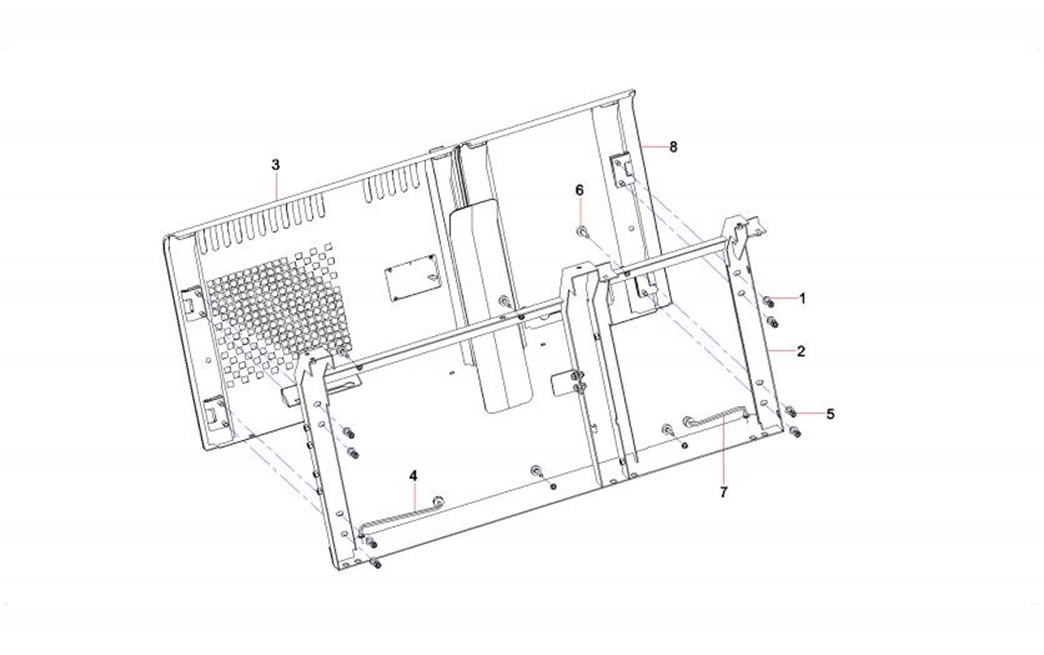

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
2-207-1 |
1 |
A210405000001 |
8 |
垫圈 |
Washer |
|
2-207-2 |
2 |
12698206 |
1 |
左门安装架 |
Frame, mounting, left door |
|
2-207-3 |
3 |
12677408 |
1 |
右门 |
Door, right |
|
2-207-4 |
4 |
12196084 |
1 |
风钩 |
Catch |
|
2-207-5 |
5 |
A210307000001 |
8 |
螺母 |
Nut |
|
2-207-6 |
6 |
A810502019056 |
5 |
定位螺钉 |
Setscrew |
|
2-207-7 |
7 |
12898634 |
1 |
小门风勾 |
Wind hookSY265C9.1.6B.1B.2 |
|
2-207-8 |
8 |
12758031 |
1 |
小门 |
small door |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
2-209-1 |
1 |
11562740 |
1 |
转角板 |
Plate, angle |
|
2-209-2 |
2 |
10220552 |
1 |
海绵 |
Sponge |
|

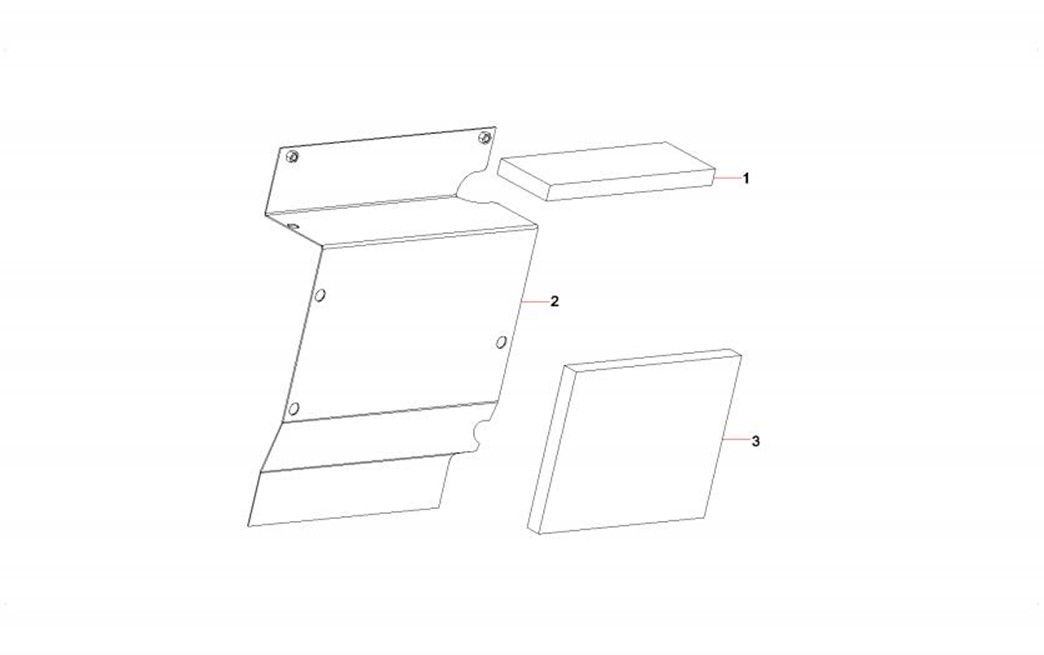

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
2-211-1 |
1 |
11590107 |
1 |
上部海绵 |
Sponge, upper |
|
2-211-2 |
2 |
11562070 |
1 |
右隔板 |
Partition, right |
|
2-211-3 |
3 |
A820699000213 |
1 |
中海绵 |
Sponge, middle |
|

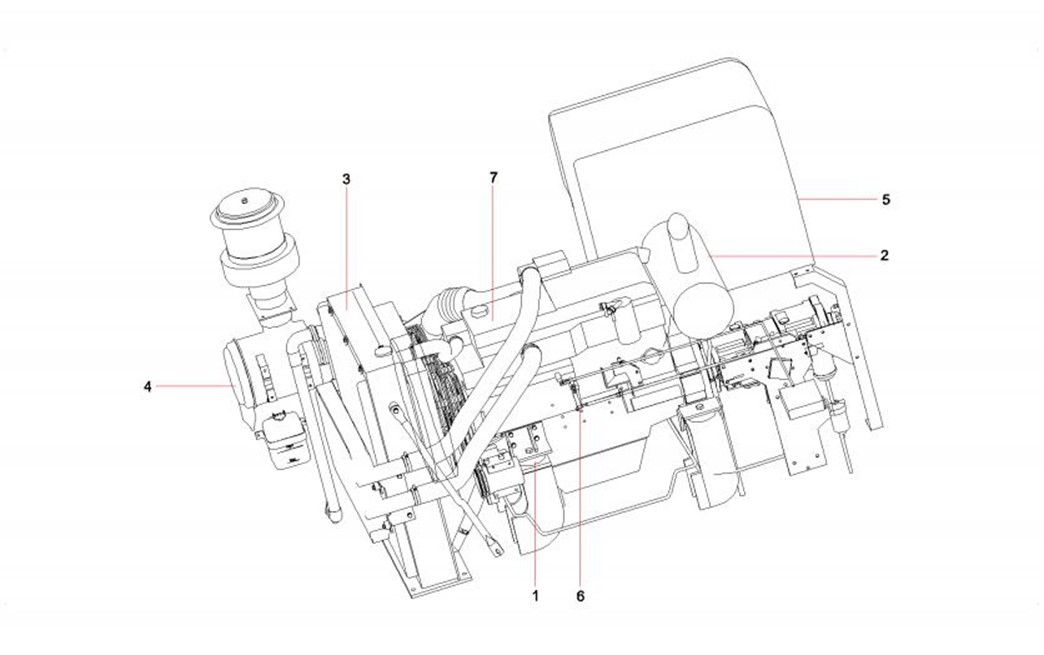

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
2-213-1 |
1 |
A810102060152 |
1 |
减震及传动系统 |
Damping & drive system |
|
2-213-2 |
2 |
A810102070274 |
1 |
排气系统 |
Exhaust system |
|
2-213-3 |
3 |
A810102090182 |
1 |
冷却系统 |
Cooling system |
|
2-213-4 |
4 |
A810102070275 |
1 |
进气系统 |
Air inlet system |
|
2-213-5 |
5 |
12768519 |
1 |
燃油系统 |
Fuel system |
|
2-213-6 |
6 |
11469942 |
1 |
油门控制系统 |
Control system, throttle |
|
2-213-7 |
7 |
60162105 |
1 |
发动机 |
Engine |
|

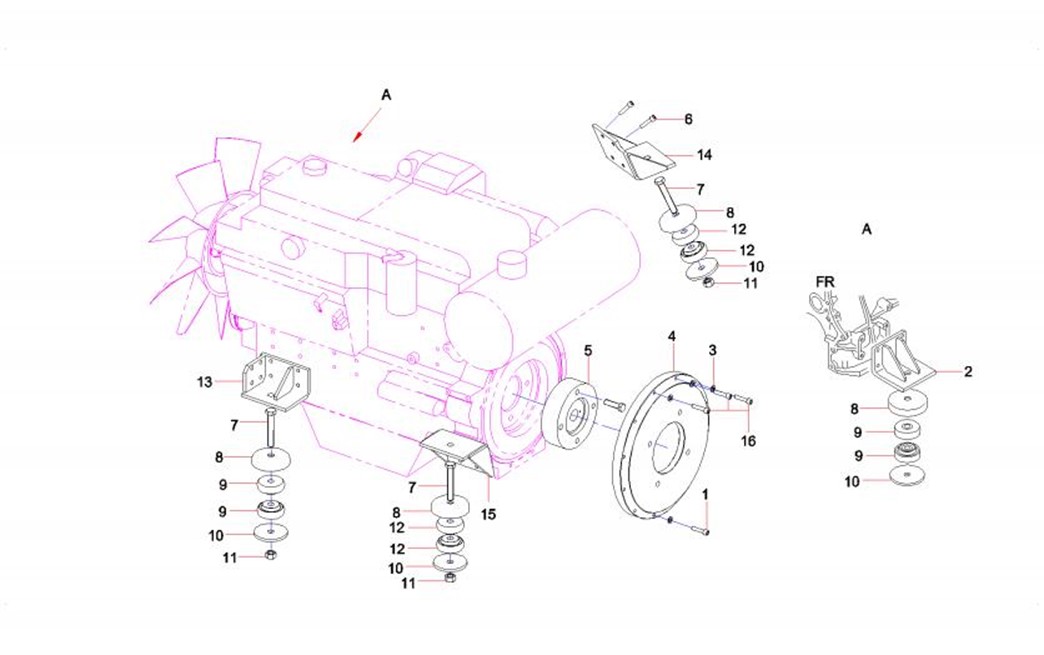

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
2-215-1 |
1 |
A210204000356 |
9 |
螺钉M10×50GB70.1 10.9级 |
Screw |
|
2-215-2 |
2 |
12556566 |
1 |
左后支架 |
Bracket,LR |
|
2-215-3 |
3 |
24000637 |
12 |
垫圈10GB97.1 达克锈 |
Washer 10GB97.1 达克锈 |
|
2-215-4 |
4 |
A820201001304 |
1 |
端盖 |
Cover, flywheel |
|
2-215-5 |
5 |
A229900009391 |
1 |
联轴器 |
Coupling, shaft |
|
2-215-6 |
6 |
B229900004998 |
16 |
螺栓 |
Bolt |
|
2-215-7 |
7 |
A820301021274 |
4 |
螺栓 |
Bolt |
|
2-215-8 |
8 |
12565951 |
4 |
碗垫 |
Coaster, Bowl |
|
2-215-9 |
9 |
B229900002474 |
4 |
小减震垫 |
Isolator, engine |
|
2-215-10 |
10 |
12565950 |
4 |
座垫 |
Coaster |
|
2-215-11 |
11 |
A210307000035 |
4 |
螺母M18GB6170 10级 |
Nut |
|
2-215-12 |
12 |
B229900002824 |
4 |
减震垫 |
Isolator, engine |
|
2-215-13 |
13 |
11220370 |
1 |
发动机左前支架 |
Bracket |
|
2-215-14 |
14 |
10641504 |
1 |
右后支架 |
Bracket |
|
2-215-15 |
15 |
12556585 |
1 |
右前支架 |
Bracket,RF |
|
2-215-16 |
16 |
A210204000335 |
3 |
螺钉M10×55GB70.1 10.9级 |
Screw |
