识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-169-41

41

A210204000272

4

螺钉M12×120GB70.1 12.9级 Screw

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

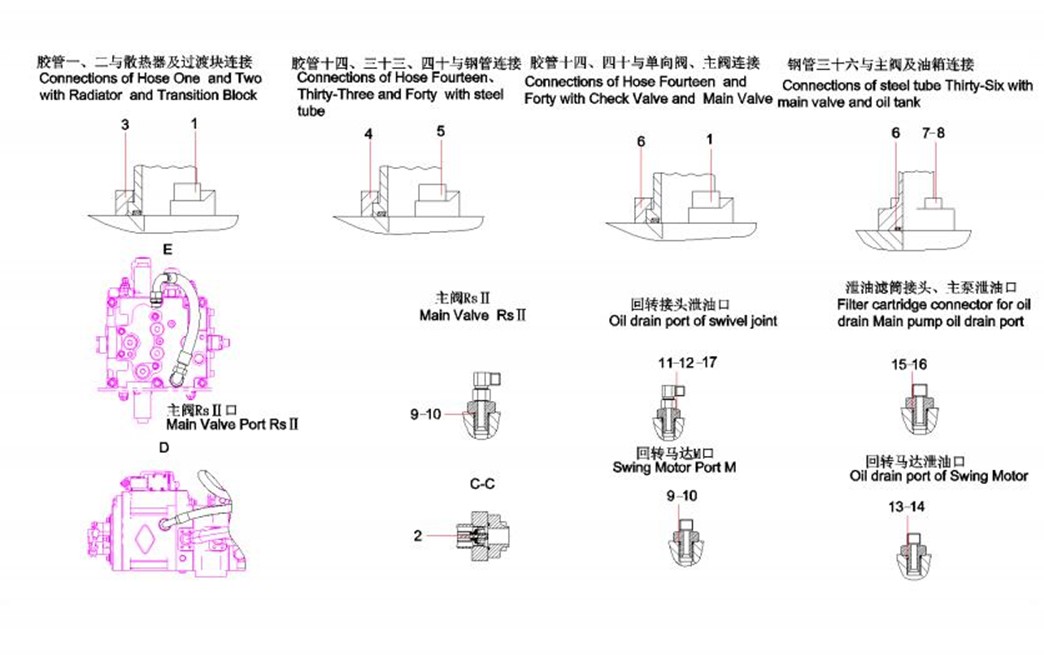

2-171-1

1

A210204000206

26

螺钉M12×35GB70.1 10.9级

Screw

2-171-2

2

B220401000590

1

单向阀

Valve, check

2-171-3

3

B210780000249

8

SAE法兰片

Flange, SAE

2-171-4

4

B229900001381

8

对开法兰

Flange, split

2-171-5

5

A210204000353

16

螺钉M14×50GB70.1 10.9级

Screw

2-171-6

6

B210780000890

4

对开法兰

Flange, split

2-171-7

7

A210204000462

4

螺钉M12×45GB70.1 10.9级

Screw

2-171-8

8

A210402000040

4

垫圈12GB97.1 不锈钢

Washer

2-171-9

9

A820205002468

2

接头

Connector

2-171-10

10

B230101000050

2

O形圈

O-ring 28.7×3.5JISB2401

2-171-11

11

A820205000837

1

接头

Connector

2-171-12

12

A230101000244

1

O形圈

O-ring

2-171-13

13

A820205002280

1

接头

Connector

2-171-14

14

B230101000090

1

O形圈

O-ring 17.8×2.4JISB2401

2-171-15

15

A820205000942

6

接头

Connector

2-171-16

16

B230101000356

6

O形圈

O-ring 23.7×3.5JISB2401

2-171-17

17

B230103004203

1

胶管

Hose

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

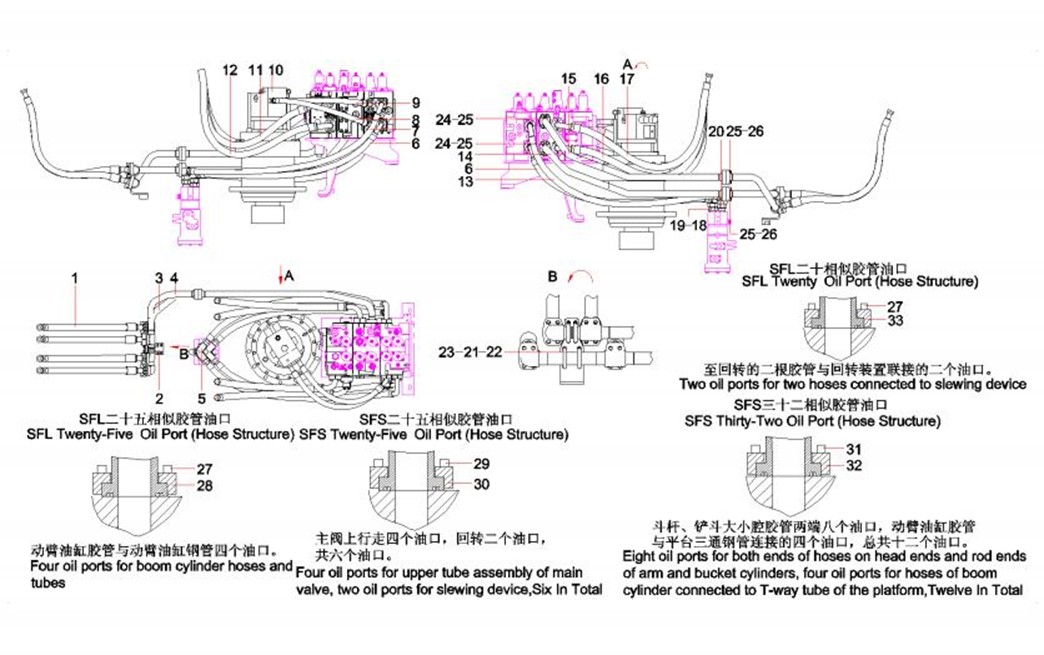

2-173-1

1

60049355

4

胶管

Hose

2-173-2

2

12345776

1

支架

Bracket

2-173-3

3

12346065

1

动臂下降钢管总成

Piping, boom-down

2-173-4

4

12348261

1

动臂提升钢管总成

Piping, boom-up

2-173-5

5

B210780001241

4

管接头

Connector, pipe

2-173-6

6

60211577

2

胶管

Rubber hose

2-173-7

7

60171477

1

胶管

Hose

2-173-8

8

60157572

1

胶管

Hose

2-173-9

9

60171476

1

胶管

Hose

2-173-10

10

60043410

1

减速机总成

Reducer GP

2-173-11

11

60157840

1

胶管

Hose

2-173-12

12

60121087

1

胶管

Hose

2-173-13

13

60208177

1

胶管

rubber hose

2-173-14

14

12789368

1

动臂下钢管总成

steel tube assembly 1 (lower

2-173-15

15

12829181

1

动臂上钢管总成

steel tube assembly 1 (upper

2-173-16

16

60171481

1

胶管

Hose

2-173-17

17

60171480

1

胶管

Hose

2-173-18

18

A820205001356

2

管接头

Connector

2-173-19

19

A210609000136

4

O形圈

O-ring 29.7×3.5JISB2401

2-173-20

20

A820205001355

2

管接头

Connector

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-175-21

21

11131585

3

U型螺栓

U-bolt

2-175-22

22

A210401000002

6

垫圈

Washer

2-175-23

23

A210307000001

12

螺母

Nut

2-175-24

24

A210204000343

8

螺钉

Screw

2-175-25

25

B230101000578

4

O形圈

O-ring 40.7×3.5JISB2401

2-175-26

26

A210204000353

8

螺钉M14×50GB70.1 10.9级

Screw

2-175-27

27

A210204000354

24

螺钉 M10×30GB70.1 10.9级

Screw

2-175-28

28

B210780000244

8

对开法兰

Flange, split

2-175-29

29

A210204000462

24

螺钉M12×45GB70.1 10.9级

Screw

2-175-30

30

B210780000004

12

对开法兰

Flange, split

2-175-31

31

A210204000454

48

螺钉M14×45GB70.1 10.9级

Screw

2-175-32

32

B210780000693

24

对开法兰

Flange, SAE

2-175-33

33

B210780000696

4

对开法兰

Flange, split

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

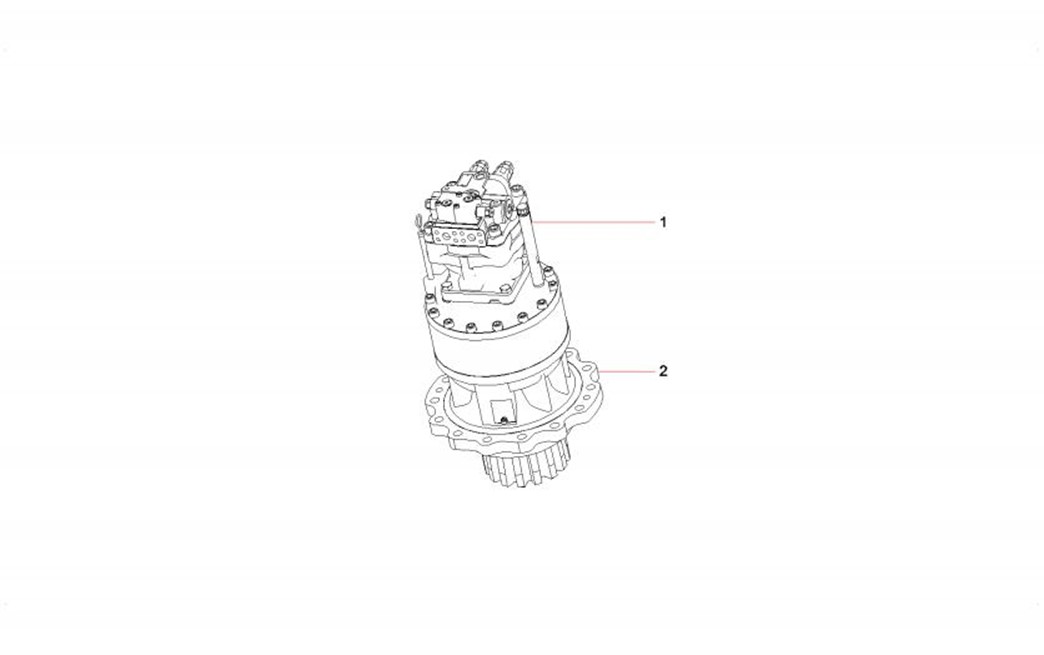

2-177-1

1

60180837

1

回转马达

Rotary motor

2-177-2

2

60042755

1

减速机

Reduction Gear

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

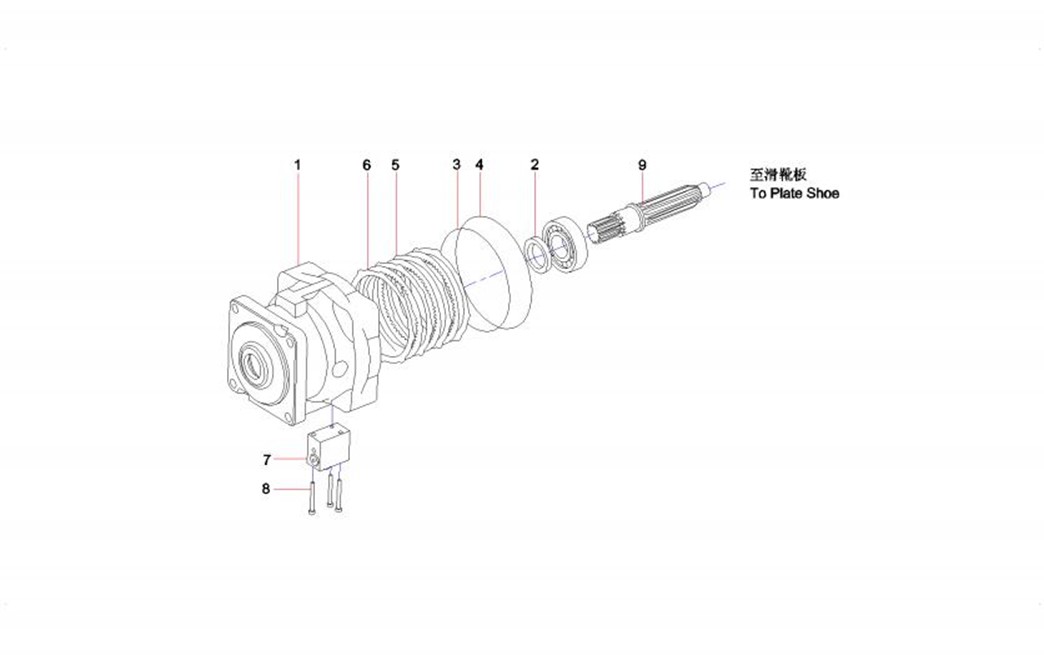

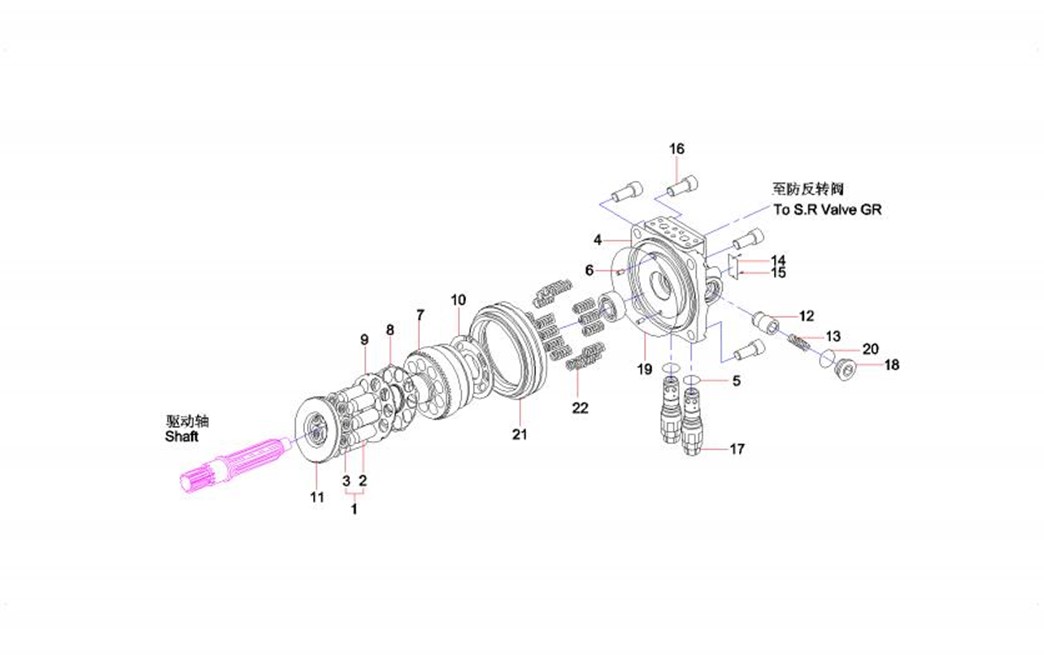

2-179-1

1

60081480

1

座

Seat

2-179-2

2

60039294

1

油密封

Seal, oil

2-179-3

3

60039425

1

O形圈

O-ring

2-179-4

4

60039426

1

O形圈

O-ring

2-179-5

5

B229900003195

3

30T回转制动主动片

Driven piece, swing brake

2-179-6

6

B229900003194

4

30T回转制动从动片

Driven piece, swing brake

2-179-7

7

B220401000688

1

回转马达延时阀

Valve, timing, swing motor

2-179-8

8

60038566

3

内六角螺栓

Screw, socket head

2-179-9

9

60081466

1

驱动轴

Shaft, drive
