识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

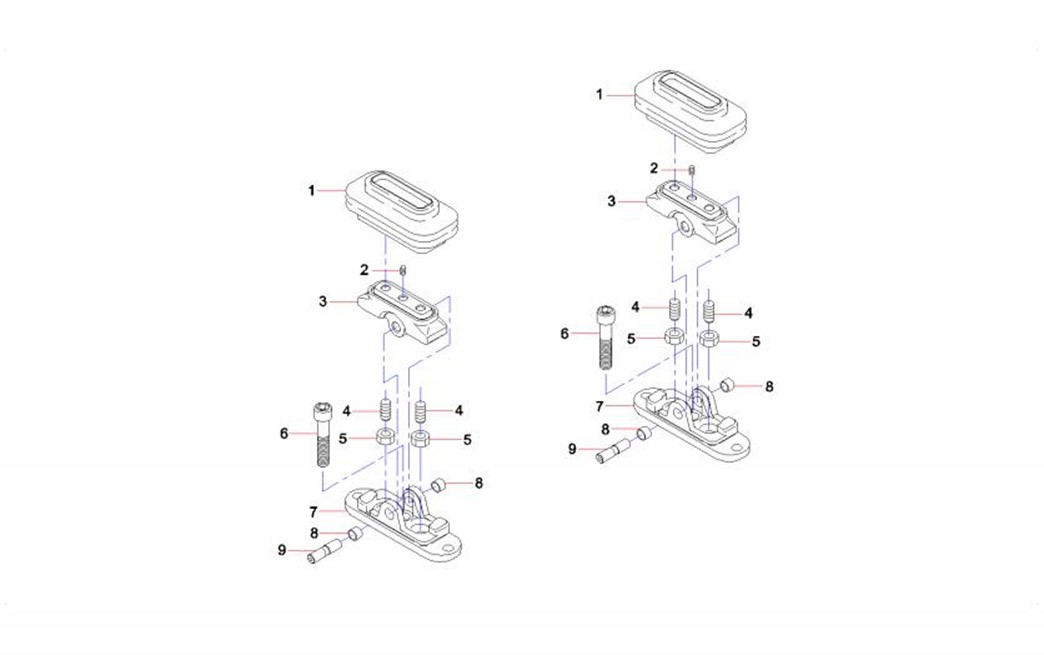

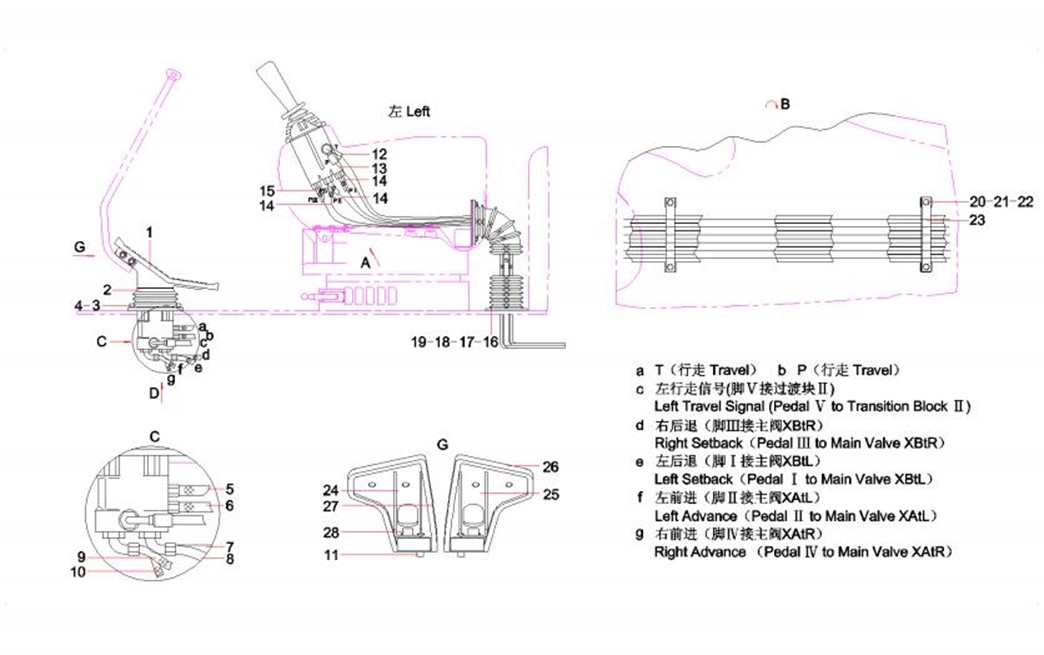

2-277-1

1

11571909

2

联接块

Block, connection

2-277-2

2

60004101

1

先导阀PVD8PC5020A(脚踏)

Valve, foot

2-277-3

3

A210111000197

4

螺栓

Bolt

2-277-4

4

A210401000001

16

垫圈

Washer

2-277-5

5

B230103001216

1

胶管

Hose， rubber

2-277-6

6

B230103004291

1

胶管

Hose, rubber

2-277-7

7

21021883

1

胶管

Hose

2-277-8

8

21021926

1

胶管

Hose

2-277-9

9

B230103005103

1

胶管

Hose

2-277-10

10

21017536

1

胶管

Hose, rubber

2-277-11

11

23000066

4

螺钉

Screw M10×25GB70.1 Grade10.9

2-277-12

12

21027563

1

胶管

Hose

2-277-13

13

B230103004654

1

胶管

Hose

2-277-14

14

60034294

3

胶管

Hose

2-277-15

15

B230103000037

1

胶管

Hose

2-277-16

16

A820601990304

2

法兰

Flange

2-277-17

17

A820601990336

2

波纹管

Bellows

2-277-18

18

A210111000078

8

螺栓

Bolt

2-277-19

19

60060564

8

垫圈6GB93 达克锈

Washer

2-277-20

20

A210111000204

4

螺栓

Bolt M12×40GB5783 Grade 10.9

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-279-21

21

A210405000001

4

垫圈

Washer

2-279-22

22

A210401000002

10

垫圈

Washer

2-279-23

23

12348467

2

七管夹

Clamp, 7-pipe

2-279-24

24

12009972

1

脚踏阀垫板总成右

Plate GP，foot valve

2-279-25

25

12003641

1

脚踏阀垫板总成左

Plate GP，foot valve

2-279-26

26

12009258

1

蝶形脚踏垫板套

Sheath, plate, butterfly footrest

2-279-27

27

12010268

1

脚踏阀垫板套右

Sleeve, plate，foot valve

2-279-28

28

A210204000334

4

螺钉M10×16GB70.1 10.9级

Screw

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-281-1

1

A820205000894

2

接头

Connector

2-281-2

2

A230101000247

8

O形圈

O-ring 10.9×2.3(JISB2401)

2-281-3

3

11287446

20

G3/8-M16接头

Joint

2-281-4

4

B230101000049

20

O形圈

O-ring 13.8×2.4JISB2401

2-281-5

5

A820205002445

7

管接头

Connector

2-281-6

6

B230101000047

10

O形圈

O-ring 10.8×2.4JISB2401

2-281-7

7

60173491

3

过滤接头

Connector, filter

2-281-8

8

A820205001148

6

管接头

Connector

2-281-9

9

B210780000636

12

管接头

Connector, pipe

2-281-10

10

A820199000360

2

PT块

Block, PT

2-281-11

11

21005186

8

螺栓

Bolt M10×40GB5783 Grade 10.9

2-281-12

12

11050165

2

手柄

Handle, grip

2-281-13

13

A229900006438

2

插入件

Insertion piece

2-281-14

14

60046659

2

按钮开关

Button, push

2-281-15

15

A210264000022

2

自攻螺钉

Screw, self-tapping

2-281-16

16

B229900001613

1

左手柄

Joystick, left

2-281-17

17

A210308000006

2

螺母

Nut M12×1.25GB6171

2-281-18

18

A210307000025

2

螺母

Nut M14GB6170

2-281-19

19

A229900006446

2

罩

Hood

2-281-20

20

A229900001028

2

罩

Hood

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-283-21

21

A229900001027

2

板

Plate

2-283-22

22

B229900001614

1

右手柄

Joystick, right

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-285-1

1

60008795

1

壳体

Housing

2-285-2

2

60008810

1

油口接板

Plate, connecting, oil port

2-285-3

3

60008598

2

密封垫圈

Washer, seal

2-285-4

4

60008799

1

O形圈

O-ring

2-285-5

5

60008786

2

内六角螺钉

Screw, socket head

2-285-6

6

60038259

1

弹簧销

Pin, spring

2-285-7

7

60008806

1

衬套

Sleeve

2-285-8

8

60037936

1

板

Plate

2-285-9

9

60008760

4

滑轴

Spool

2-285-10

10

60221602

4

堵头

Plug

2-285-11

11

60008599

4

推动杆

Pushrod

2-285-12

12

60230199

4

密封圈

SEAL

2-285-13

13

60221603

4

O形圈

O-ring

2-285-14

14

60008758

4

弹簧座

Seat, spring

2-285-15

15

60008597

4

垫圈

Washer

2-285-16

16

60008774

4

弹簧

Spring

2-285-17

17

60008775

4

弹簧

Spring

2-285-18

18

60008602

1

接头

Connector

2-285-19

19

60008809

1

圆板

Plate, circular

2-285-20

20

60038479

1

螺母

Nut

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-287-21

21

60192531

1

橡胶罩

Cover, rubber
