识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-5-1

1

A820102010761

6

垫片

Shim

4-5-2

2

变更或见其他配置

2

垫片

Shim

4-5-3

3

B230101000534

4

ME-2防尘圈

Dustproof

4-5-4

4

11644425

2

轴套

Sleeve, shaft

4-5-5

5

A210111000212

16

螺栓M16×35GB5783 10.9级

Bolt

4-5-6

6

A210405000003

16

垫圈

Washer

4-5-7

7

12680634

1

斗杆

Arm

4-5-8

8

A810303990035

1

销轴

Roll, pin

4-5-9

9

A820102010389

5

垫片

Shim

4-5-10

10

A820102010390

6

垫片

Shim

4-5-11

11

A810303990033

1

销轴

Roll, pin

4-5-12

12

A820101211702

1

压板

Plate, pressure

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-7-1

1

A820102010387

6

垫片

Gasket

4-7-2

2

A210307000005

8

螺母

Nut M20GB6170

4-7-3

3

A210110000347

2

螺栓M20×200GB5782 10.9级

Bolt

4-7-4

4

11994050

2

销轴

Roll, pin

4-7-5

5

60055872

10

DLI防尘圈

DLI-ring, dustproof

4-7-6

6

A820202003323

2

轴套

Sleeve, shaft

4-7-7

7

12981829

1

铲斗总成

Bucket assem(1.6)

4-7-8

8

A820202003320

2

轴套

Sleeve, shaft

4-7-9

9

A210609000344

2

O形圈

O-ring

4-7-10

10

11861470

1

右摇杆

Rocker, right

4-7-11

11

11859330

1

连杆

Rod, connecting

4-7-12

12

A810303990032

2

销轴

Roll, pin

4-7-13

13

A210110000352

2

螺栓 M20×180GB5782 10.9级

Bolt M20×180GB5782 Grade 10.9

4-7-14

14

A820202003321

4

轴套

Sleeve, shaft

4-7-15

15

11861469

1

左摇杆

Rocker, left

4-7-16

16

B229900000686

6

黄油嘴

Fitting, grease

4-7-17

17

11472100

8

垫片

Shim

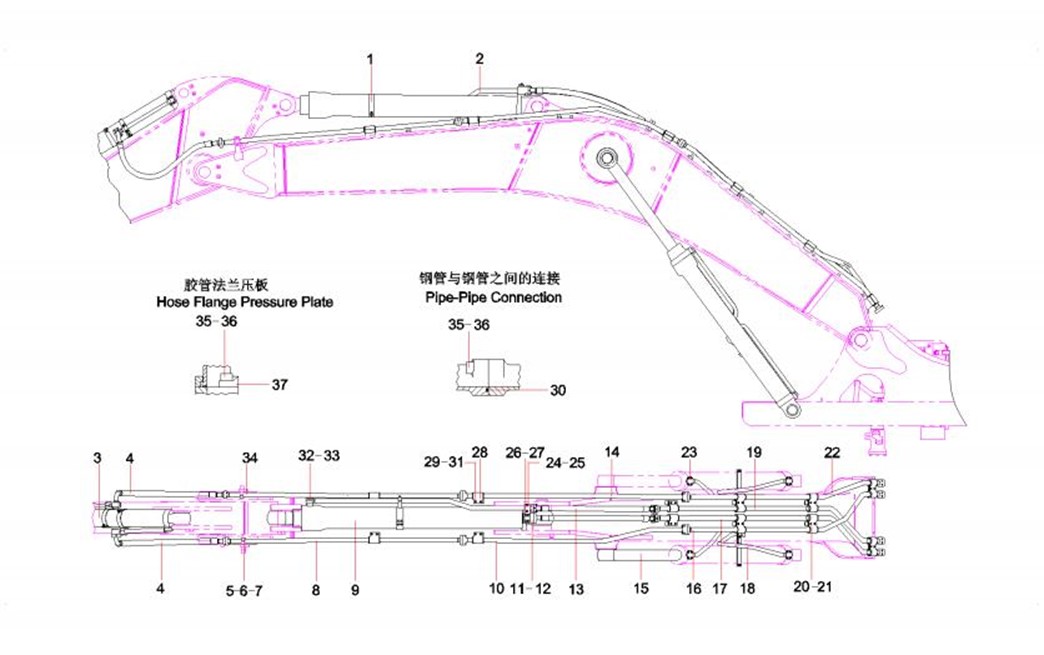

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-9-1

1

12196726

1

管卡组合

Clip GP, pipe

4-9-2

2

12919046

1

钢管总成

Steel Pipe Assy.

4-9-3

3

11813471

1

铲斗油缸总成

Cylinder GP, bucket

4-9-4

4

60062816

2

胶管

Hose

4-9-5

5

A210204000335

4

螺钉M10×55GB70.1 10.9级

Screw

4-9-6

6

A210401000001

4

垫圈

Washer

4-9-7

7

11945578

2

管夹

Clamp, pipe

4-9-8

8

13010908

1

铲斗左钢管总成

steel pipe assembly 3 (left

4-9-9

9

60216115

1

斗杆油缸

arm clinder

4-9-10

10

12187463

1

铲斗左钢管总成

Piping,left,bucket

4-9-11

11

11163375

1

过渡块

Spacer

4-9-12

12

B230101000456

3

O形圈

O-ring 29.7×3.5JISB2401

4-9-13

13

60041738

2

胶管

Hose

4-9-14

14

12188247

1

铲斗右钢管总成

Piping,right,bucket

4-9-15

15

12384594

1

铲斗左钢管总成

Cylinder GP,left,bucket

4-9-16

16

60011435

2

动臂油缸

Cylinder, boom

4-9-17

17

12384418

1

斗杆左钢管总成

Cylinder GP, left,arm

4-9-18

18

12345909

1

左动臂油缸管路

Pipeline, boom cylinder, left

4-9-19

19

12384334

1

斗杆右钢管总成

Cylinder GP, right,arm

4-9-20

20

11167545

12

管夹

Clamp, pipe

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-11-21

21

11168201

18

衬垫

Gasket

4-11-22

22

12384565

1

铲斗右钢管总成

Cylinder GP, right,bucket

4-11-23

23

12345837

1

右动臂油缸管路

Pipeline, boom cylinder, right

4-11-24

24

11285250

1

U型螺栓

U-bolt

4-11-25

25

A210307000031

2

螺母M12GB6170 10级

Nut

4-11-26

26

11285251

1

支板

Plate, support

4-11-27

27

A210110000384

4

螺栓M12×110GB5782 10.9级

Bolt

4-11-28

28

11167527

12

管夹

Clamp, pipe

4-11-29

29

24000642

24

垫圈

washer

4-11-30

30

B230101000578

4

O形圈

O-ring 40.7×3.5JISB2401

4-11-31

31

A210111000053

24

螺栓M16×40GB5783 10.9级

Bolt M16×40GB5783 Grade 10.9

4-11-32

32

A210204000462

4

螺钉M12×45GB70.1 10.9级

Screw

4-11-33

33

A210405000001

8

垫圈

Washer

4-11-34

34

13010977

1

铲斗右钢管总成

steel pipe assembly 3 (right

4-11-35

35

A210401000003

48

垫圈

Washer

4-11-36

36

A210204000353

48

螺钉M14×50GB70.1 10.9级

Screw

4-11-37

37

B210780000693

16

对开法兰

Flange, SAE

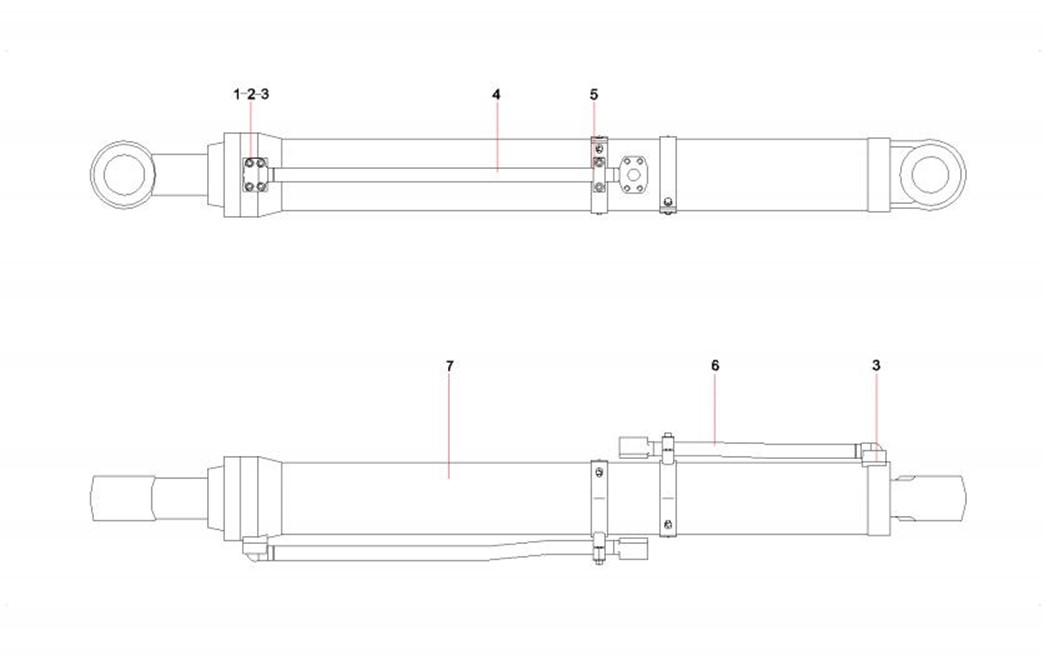

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-13-1

1

A210204000462

8

螺钉M12×45GB70.1 10.9级

Screw

4-13-2

2

A210405000001

8

垫圈

Washer

4-13-3

3

B230101000456

2

O形圈

O-ring 29.7×3.5JISB2401

4-13-4

4

12194032

1

钢管总成

steel tube

4-13-5

5

13026708

2

管夹组合

pipe clip combination

4-13-6

6

12193530

1

钢管总成

steel tube assembly

4-13-7

7

60117473

1

铲斗油缸

Cylinder, bucket

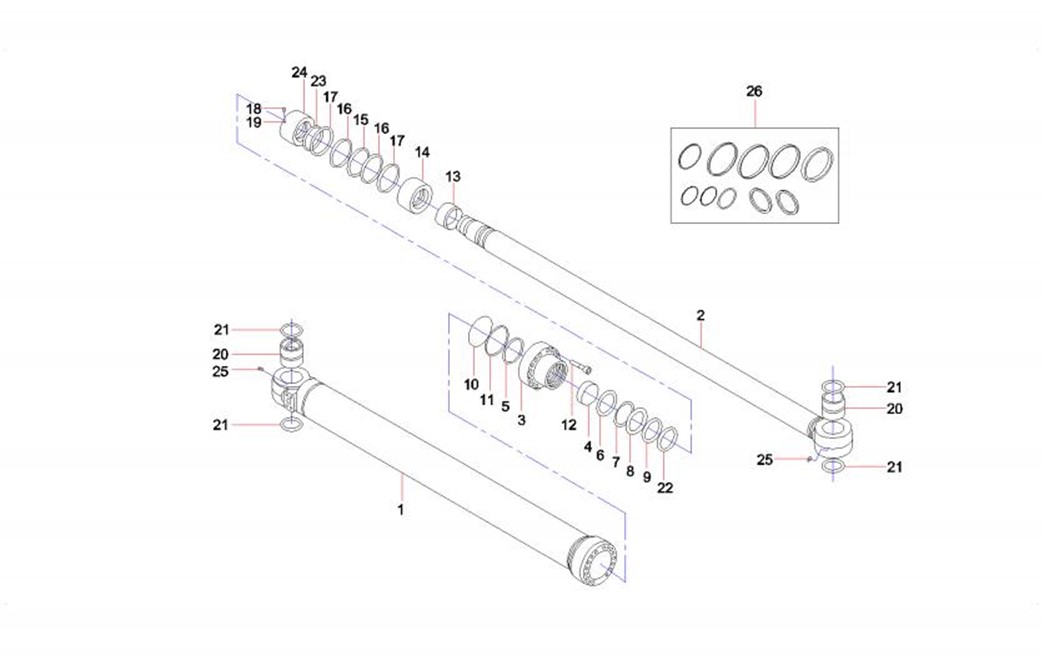

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-15-1

1

60154008

1

缸体

cylinder body

4-15-2

2

60154018

1

活塞杆

piston rod

4-15-3

3

60154000

1

端盖

end cover

4-15-4

4

60154009

1

滑动轴套

Sleeve, sliding

4-15-5

5

60153990

1

挡圈

Ring, retaining

4-15-6

6

60065204

1

缓冲圈

Ring, buffer

4-15-7

7

60154049

1

轴用密封圈

Ring, seal

4-15-8

8

60154022

1

开口挡圈

Ring, retainer, switch

4-15-9

9

60065342

1

防尘圈

Ring, dust

4-15-10

10

60154033

1

O形密封圈

O-ring

4-15-11

11

60153987

1

O形圈挡圈

O-ring

4-15-12

12

60022043

14

螺钉

Screw

4-15-13

13

60065206

1

缓冲套

Sleeve, buffer

4-15-14

14

60154014

1

活塞

piston rod

4-15-15

15

60154044

1

孔用密封圈

Seal

4-15-16

16

60154036

2

成型导向环

Guide ring

4-15-17

17

60153984

2

纳污环

RING

4-15-18

18

24000487

1

螺钉

Bolt

4-15-19

19

21010039

1

钢球

Steel Ball

4-15-20

20

60044359

2

轴套

Sleeve, shaft
