SANY SY465C SY465C2M2H EXCAVATOR parts catalog 33
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-373-1 |
1 |
B240600000334 |
1 |
Sensor, sunlight |
2-373-2 |
2 |
B240700000473 |
1 |
Relay |
2-373-3 |
3 |
B240700000472 |
1 |
Relay |
2-373-4 |
4 |
10448933 |
1 |
Wire, connecting, air conditioner |

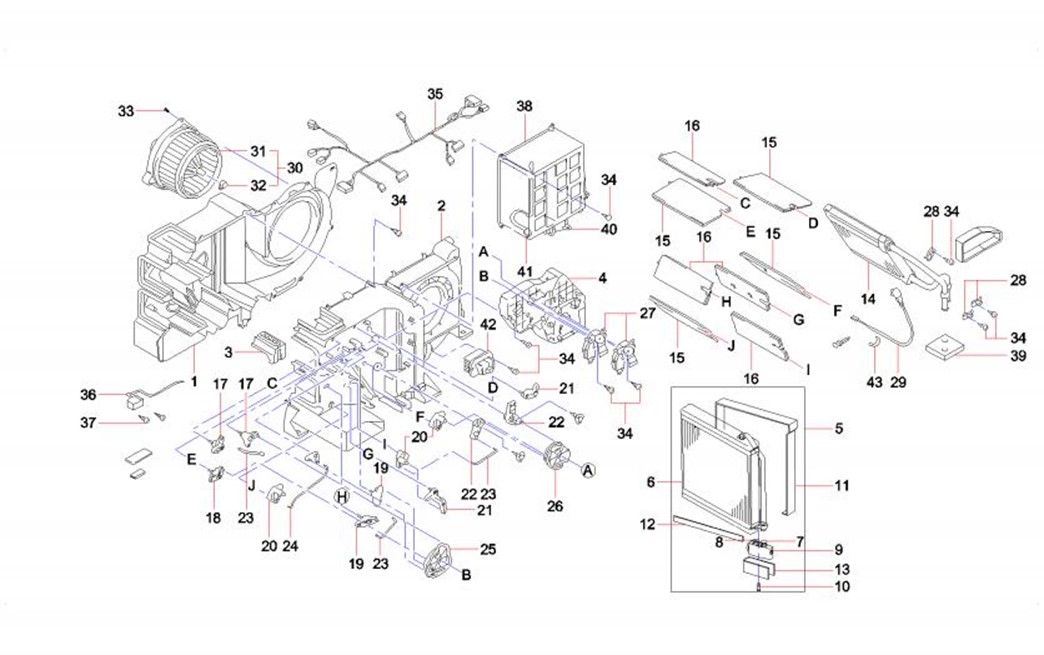

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-375-1 |
1 |
60153212 |
1 |
Cooling motor group outer shell |
2-375-2 |
2 |
60153213 |
1 |
Cooling motor group outer shell |
2-375-3 |
3 |
60153195 |
1 |
Plate |
2-375-4 |
4 |
60153196 |
1 |
Plate |
2-375-5 |
5 |
60153202 |
1 |
Evaporator assembly with parts |
2-375-6 |
6 |
60153218 |
1 |
Evaporator sub-assembly |
2-375-7 |
7 |
60153192 |
1 |
O-type ring |
2-375-8 |
8 |
60153193 |
1 |
O-type ring |
2-375-9 |
9 |
60153197 |
1 |
Valve, expansion |
2-375-10 |
10 |
60153215 |
2 |
Bolt |
2-375-11 |
11 |
60153203 |
1 |
Seal, insulation |
2-375-12 |
12 |
60153205 |
3 |
Seal, insulation |
2-375-13 |
13 |
60153204 |
1 |
Seal, insulation |
2-375-14 |
14 |
60153242 |
1 |
Core SUB, heater |
2-375-15 |
15 |
60049962 |
4 |
Door SUB |
2-375-16 |
16 |
60153216 |
4 |
Door SUB |
2-375-17 |
17 |
60049956 |
2 |
Rod SUB, connecting |
2-375-18 |
18 |
60049957 |
1 |
Rod SUB, connecting |
2-375-19 |
19 |
60049958 |
2 |
Rod SUB, connecting |
2-375-20 |
20 |
60049959 |
3 |
Rod SUB, connecting |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-377-21 |
21 |
60049941 |
2 |
Rod |
2-377-22 |
22 |
60049960 |
2 |
Rod sub-assembly, connecting |
2-377-23 |
23 |
60049963 |
3 |
Shaft |
2-377-24 |
24 |
60049964 |
1 |
Shaft |
2-377-25 |
25 |
60049943 |
1 |
Plate |
2-377-26 |
26 |
60049944 |
1 |
Plate |
2-377-27 |
27 |
60049947 |
2 |
Motor AS, servo |
2-377-28 |
28 |
60049955 |
3 |
Clamp |
2-377-29 |
29 |
60033039 |
1 |
Sensor, water temperature |
2-377-30 |
30 |
60153199 |
1 |
Motor As, with fan |
2-377-31 |
31 |
60049951 |
1 |
Blade, fan |
2-377-32 |
32 |
60049954 |
1 |
Clamp |
2-377-33 |
33 |
60049950 |
3 |
Screw, tapping, with washer |
2-377-34 |
34 |
60049965 |
32 |
Screw, self-tapping |
2-377-35 |
35 |
60049948 |
1 |
Harness AS, air conditioner |
2-377-36 |
36 |
60049966 |
1 |
Sensor, anti-frost |
2-377-37 |
37 |
60049949 |
2 |
Screw, with washer |
2-377-38 |
38 |
60049942 |
1 |
Box, SUB |
2-377-39 |
39 |
60049953 |
1 |
Seal, insulation |
2-377-40 |
40 |
60049945 |
1 |
Motor AS, servo |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-379-41 |
41 |
60153240 |
1 |
Thermistor AS |
2-379-42 |
42 |
60049968 |
1 |
Transistor AS, air conditioner |
2-379-43 |
43 |
60049952 |
1 |
Bracket, thermo-bulb parts |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

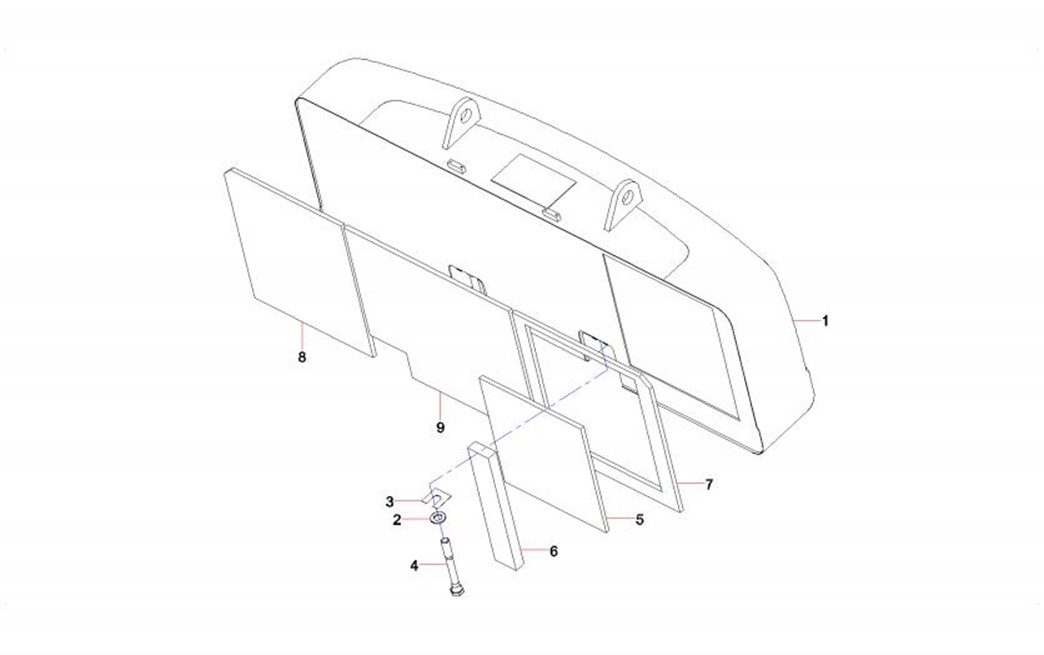

2-381-1 |
1 |
11636944 |
1 |
Counterweight |
2-381-2 |
2 |
A820101336000 |
4 |
Gasket |
2-381-3 |
3 |
A820101335700 |
8 |
Gasket |
2-381-4 |
4 |
10764952 |
4 |
Bolt, counterweight |
2-381-5 |
5 |
11169687 |
1 |
Sponge, groove |
2-381-6 |
6 |
11169688 |
1 |
Sponge, wind guard |
2-381-7 |
7 |
11169689 |
1 |
Sponge, left |
2-381-8 |
8 |
11169690 |
1 |
Sponge, right |
2-381-9 |
9 |
11169691 |
1 |
Sponge, middle |

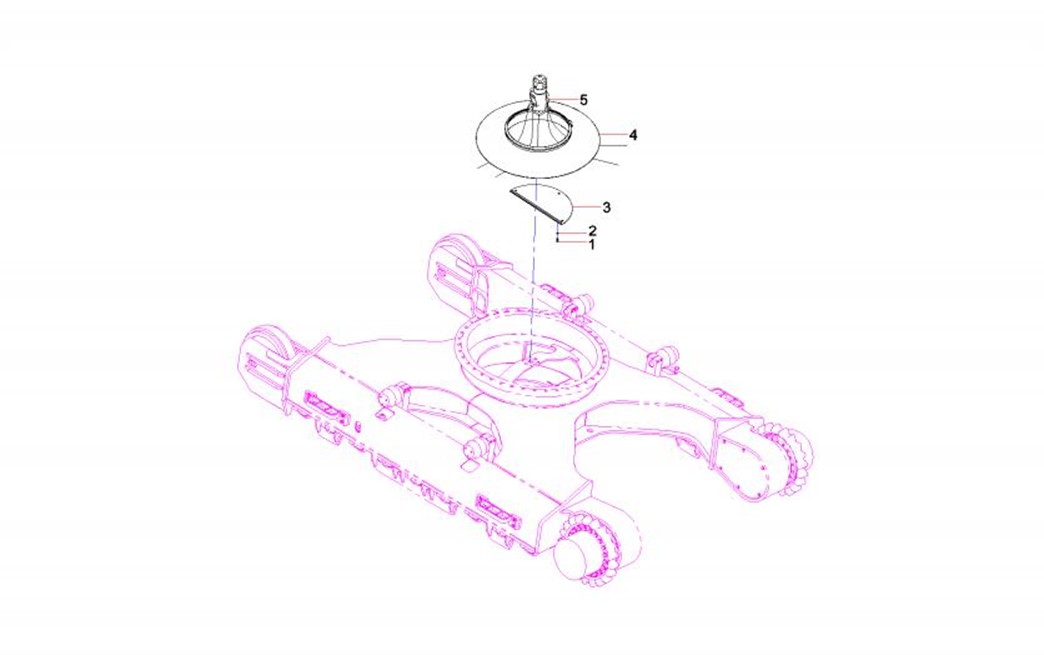

Chapter 3
Travel device
