识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-17-1

1

60039315

1

传动轴

Shaft, drive

2-17-2

2

60039357

1

壳体

Housing

2-17-3

3

60039303

1

圆柱滚珠轴承

Bearing, ball, cylindrical

2-17-4

4

60039294

1

油密封

Seal, oil

2-17-5

5

60039425

1

O形圈

O-ring

2-17-6

6

60039426

1

O形圈

O-ring

2-17-7

7

B229900003195

3

30T回转制动主动片

Driven piece, swing brake

2-17-8

8

B229900003194

4

30T回转制动从动片

Driven piece, swing brake

2-17-9

9

B220401000688

1

回转马达延时阀

Valve, timing, swing motor

2-17-10

10

60008845

3

螺栓

Bolt

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

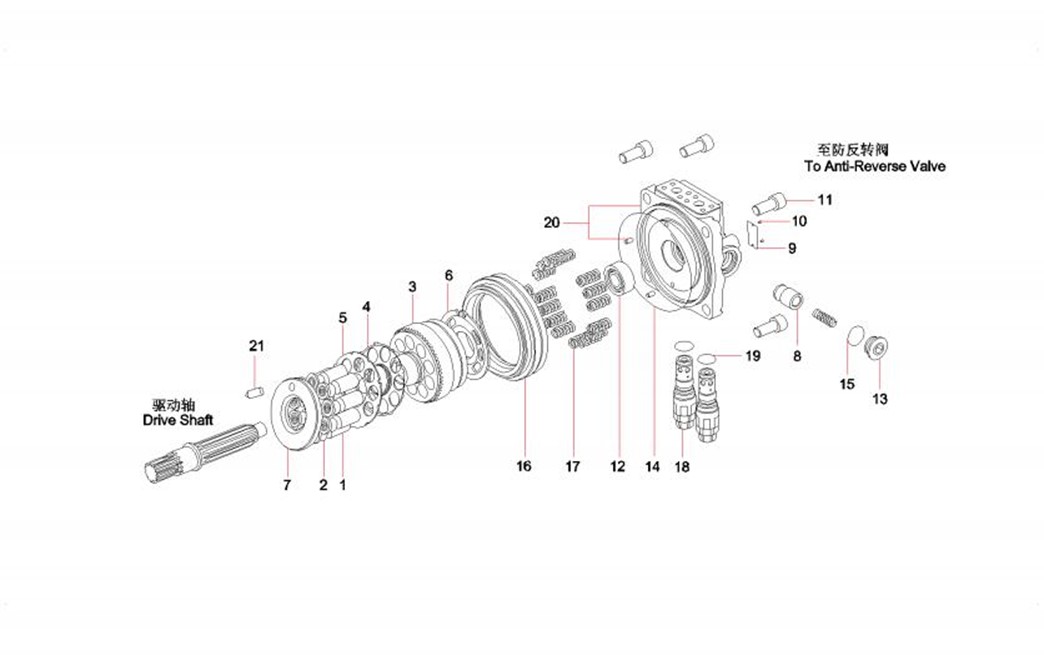

2-19-1

1

60039347

9

活塞

Piston

2-19-2

2

60039291

9

滑靴

Slipper

2-19-3

3

60039338

1

缸体

Cylinder block

2-19-4

4

60039322

1

弹簧座

Seat, spring

2-19-5

5

60039382

1

托架

Bracket

2-19-6

6

60203917

1

配油盘

Tray, oil distribution

2-19-7

7

60203918

1

滑靴板

Plate, slipper

2-19-8

8

60039351

2

活塞

Piston

2-19-9

9

60038547

1

铭牌

Nameplate

2-19-10

10

60008722

2

铆钉

Rivet

2-19-11

11

60008840

4

螺栓

Bolt

2-19-12

12

60039302

1

圆柱滚珠轴承

Bearing, ball, cylindrical

2-19-13

13

60039401

2

油塞

Plug, oil

2-19-14

14

60039429

1

O形圈

O-ring

2-19-15

15

B230101001312

2

O形圈

O-ring

2-19-16

16

60039406

1

制动活塞

Piston, braking

2-19-17

17

60039405

16

制动弹簧

Spring, retarding

2-19-18

18

60203919

2

20T回转溢流阀

Valve, swing relief

2-19-19

19

B230101000036

2

O形圈

O-ring

2-19-20

20

60039358

1

壳体总成

Housing AS

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-21-21

21

60075461

1

销 Pin

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

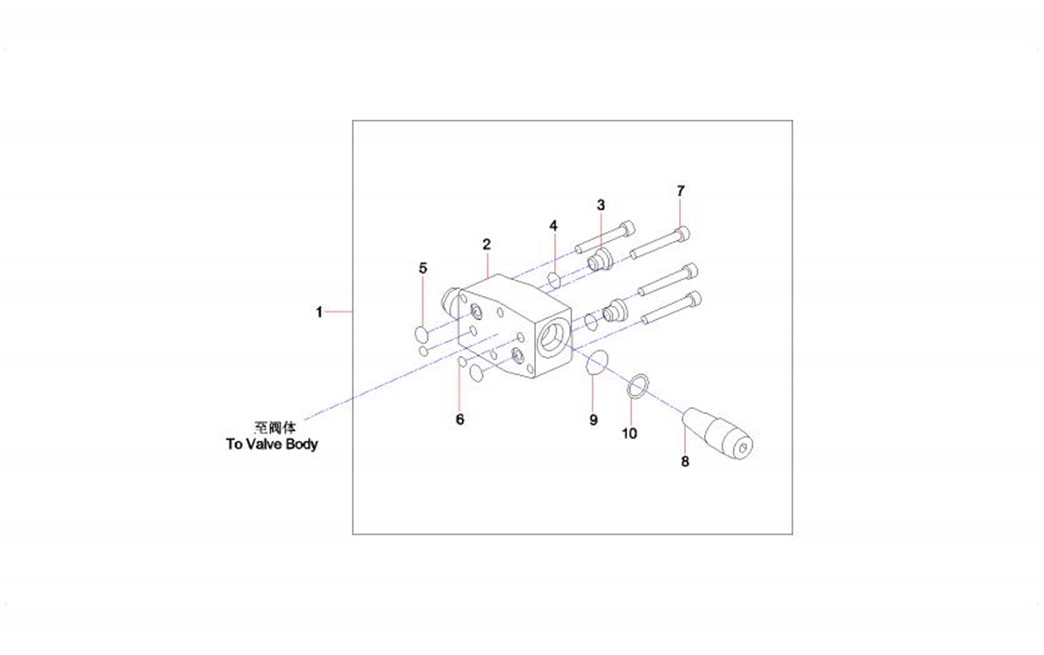

2-23-1

1

60203920

1

回转马达防摆阀

Valve, anti-reverse, swing motor

2-23-2

2

60008793

1

机体

Body, machine

2-23-3

3

60008711

2

堵

Plug

2-23-4

4

B230103003795

2

O形圈

O-ring

2-23-5

5

60008699

2

O形圈

O-ring

2-23-6

6

60008707

2

O形圈

O-ring

2-23-7

7

60008848

4

螺钉

Screw

2-23-8

8

60203921

2

防反转阀

Valve, anti-reverse

2-23-9

9

B230101000363

2

O形圈

O-ring

2-23-10

10

60008867

2

密封挡圈

Ring, retainer, sealing

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

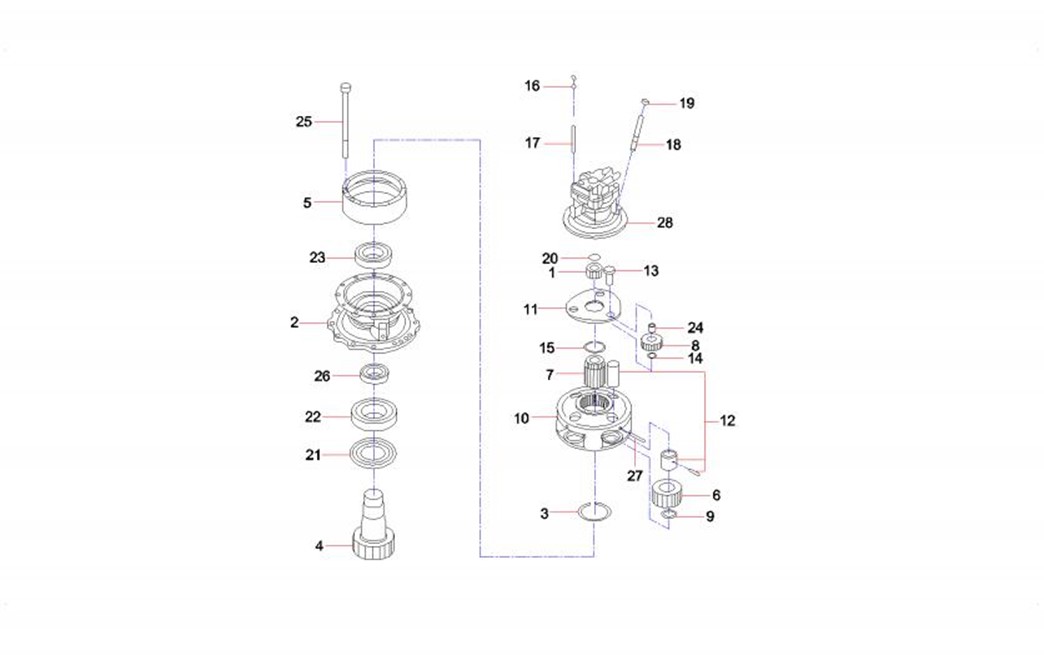

2-25-1

1

60039304

1

No.1太阳轮

Gear, sun

2-25-2

2

60039314

1

齿轮马达壳体

Casing, gear motor

2-25-3

3

60077883

1

挡圈

Ring, retaining

2-25-4

4

60203916

1

传动轴

Shaft, drive

2-25-5

5

B229900005524

1

齿圈

Ring, gear

2-25-6

6

60015792

4

行星齿轮

Gear, planetary

2-25-7

7

60015785

1

太阳齿轮

Gear, sun

2-25-8

8

60015790

3

行星齿轮

Gear, planetary

2-25-9

9

60077884

4

垫片

Gasket

2-25-10

10

60039311

1

No.2支座

Seat

2-25-11

11

60039309

1

No.1支座

Seat

2-25-12

12

60039310

4

销轴

Pin

2-25-13

13

60039308

3

轮轴

Pin

2-25-14

14

60039384

3

垫片

Gasket

2-25-15

15

60065255

1

垫片

Gasket

2-25-16

16

60008605

1

油尺

Gauge, oil

2-25-17

17

60008614

1

油尺外管

Tube, oil gauge

2-25-18

18

60008615

1

加油管

Pipe, oil feed

2-25-19

19

B229900002437

1

呼吸管盖

Cover, breathing tube

2-25-20

20

60008723

1

挡圈

Ring, retainer
