SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 09
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-71-21 |
21 |
12185930 |
1 |
Rubber sleeveSY335C9I4K.1.3.5A |
2-71-22 |
22 |
B210780000170 |
3 |
Connector, pipe |
2-71-23 |
23 |
B210780001445 |
3 |
Connector, pipe |
2-71-24 |
24 |
B230103002263 |
1 |
Hose, rubber |
2-71-25 |
25 |
B230103001456 |
1 |
Hose, rubber |
2-71-26 |
26 |
B230103000074 |
1 |
Hose,rubber |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

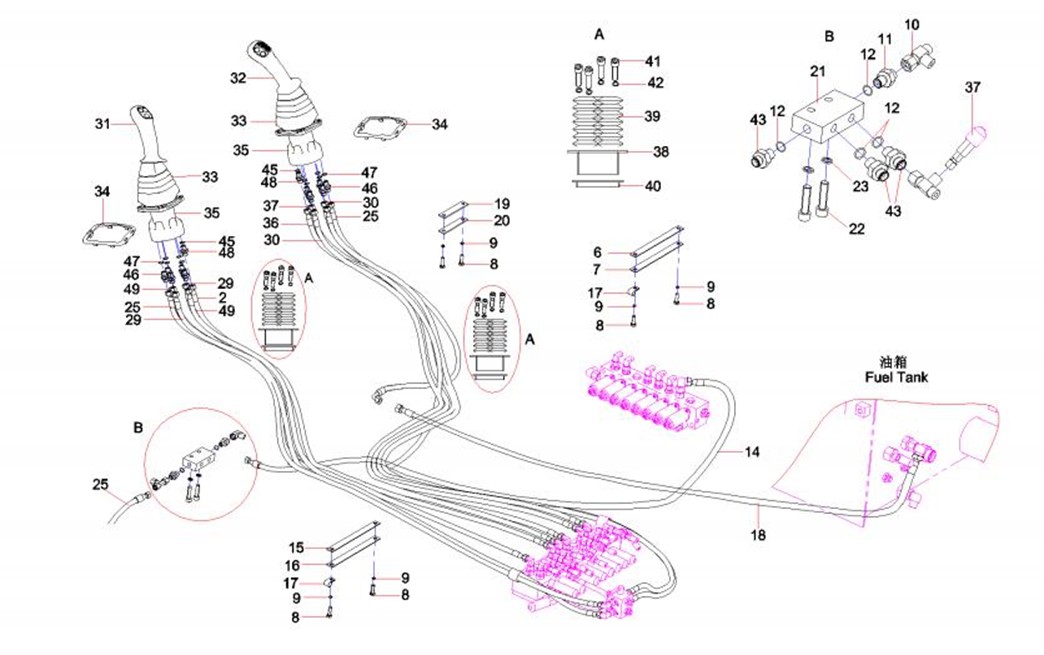

2-73-2 |
2 |
A831211095000 |
1 |
Hose assembly |
2-73-6 |
6 |
11243372 |
1 |
Plate, pressure |
2-73-7 |
7 |
11602341 |
1 |
Gasket, rubber |
2-73-8 |
8 |
Modification or other |
6 |
Bolt |
2-73-9 |
9 |
Modification or other |
6 |
Washer 8GB93 |
2-73-10 |
10 |
B210780000170 |
3 |
Connector, pipe |
2-73-11 |
11 |
A820205000894 |
2 |
Connector |
2-73-12 |
12 |
A230101000247 |
4 |
O-ring 10.9×2.3(JISB2401) |
2-73-14 |
14 |
B230103003282 |
1 |
Hose, rubber |
2-73-15 |
15 |
11243400 |
1 |
Plate, pressure |
2-73-16 |
16 |
11602359 |
1 |
Gasket, rubber |
2-73-17 |
17 |
60086354 |
2 |
Clamp, harness |
2-73-18 |
18 |
B230103003202 |
1 |
Hose |
2-73-19 |
19 |
11243374 |
1 |
Plate, pressure |
2-73-20 |
20 |
11602348 |
1 |
Gasket, rubber |
2-73-21 |
21 |
A820199000360 |
1 |
Block, PT |
2-73-22 |
22 |
Modification or other |
2 |
Bolt M10×40GB5783 10.9 |
2-73-23 |
23 |
Modification or other |
2 |
Washer 10GB93 |
2-73-25 |
25 |
B230103002263 |
3 |
Hose, rubber |
2-73-29 |
29 |
60128281 |
4 |
Hose |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-75-30 |
30 |
B230103000671 |
4 |
Hose, rubber |
2-75-31 |
31 |
60137564 |
1 |
Left handle |
2-75-32 |
32 |
60137563 |
1 |
Right handle |
2-75-33 |
33 |
13269044 |
2 |
Handle Guard SY215C9C3KL.1.4.1 |
2-75-34 |
34 |
A229900001027 |
2 |
Plate |
2-75-35 |
35 |
60231351 |
2 |
Pilot-control Valve |
2-75-36 |
36 |
A831211120000 |
1 |
Hose, rubber |
2-75-37 |
37 |
A820205000944 |
1 |
Adapter, relay |
2-75-38 |
38 |
A820601990304 |
2 |
Flange |
2-75-39 |
39 |
A820601990336 |
2 |
Bellows |
2-75-40 |
40 |
11243401 |
2 |
Sleeve, rubber |
2-75-41 |
41 |
Modification or other |
8 |
Bolt M6×12GB5783 |
2-75-42 |
42 |
Modification or other |
8 |
Washer 6GB93 |
2-75-43 |
43 |
A820205000839 |
6 |
Connector |
2-75-45 |
45 |
B230101000047 |
2 |
O-ring |
2-75-46 |
46 |
A820205000946 |
10 |
Connector |
2-75-47 |
47 |
B230101000049 |
5 |
O-ring 13.8×2.4JISB2401 |
2-75-48 |
48 |
60020078 |
3 |
Connector, filter |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

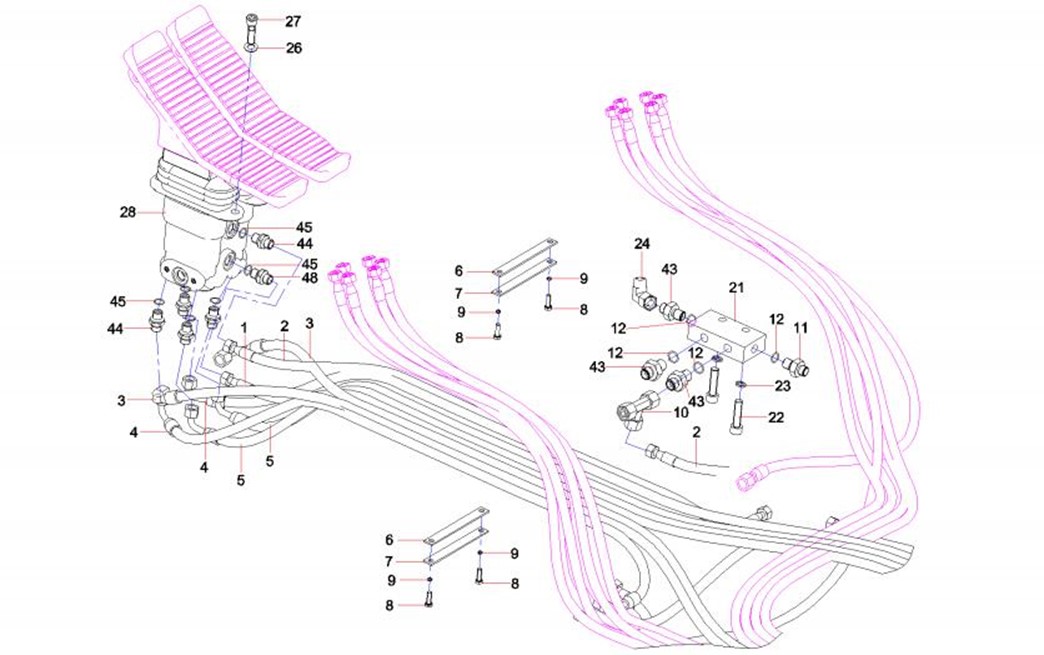

2-77-1 |
1 |
B230103003046 |
1 |
Hose |
2-77-2 |
2 |
A831211095000 |
2 |
Hose assembly |
2-77-3 |
3 |
11902257 |
2 |
Hose |
2-77-4 |
4 |
B230103002658 |
2 |
Hose |
2-77-5 |
5 |
B230103002001 |
2 |
Hose |
2-77-6 |
6 |
11243372 |
2 |
Plate, pressure |
2-77-7 |
7 |
11602341 |
2 |
Gasket, rubber |
2-77-8 |
8 |
Modification or other |
4 |
Bolt |
2-77-9 |
9 |
Modification or other |
4 |
Washer 8GB93 |
2-77-21 |
21 |
A820199000360 |
2 |
Block, PT |
2-77-24 |
24 |
B210780000418 |
1 |
Connector, pipe |
2-77-26 |
26 |
Modification or other |
4 |
Washer 10GB97.1 |
2-77-27 |
27 |
A210111000197 |
4 |
Bolt M10×25GB5783 10.9 |
2-77-28 |
28 |
60170604 |
1 |
Pilot-control Valve |
2-77-44 |
44 |
Modification or other |
7 |
Connector |
2-77-45 |
45 |
B230101000047 |
8 |
O-ring |
2-77-48 |
48 |
Modification or other |
1 |
Connector, screen |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

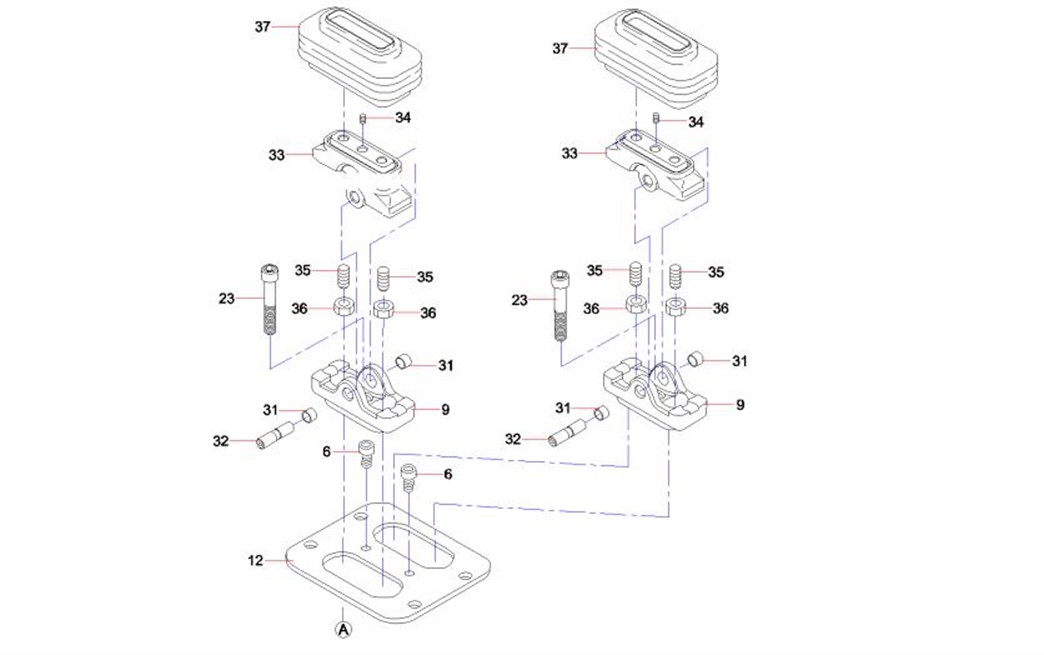

2-79-6 |
6 |
60237073 |
2 |
screw |
2-79-9 |
9 |
60237074 |
2 |
cover |
2-79-12 |
12 |
60237075 |
1 |
plate |
2-79-23 |
23 |
60237078 |
2 |
screw |
2-79-31 |
31 |
60008690 |
4 |
Sleeve,shaft |
2-79-32 |
32 |
60008585 |
2 |
Camshaft |
2-79-33 |
33 |
60008591 |
2 |
Plate, cam |
2-79-34 |
34 |
60237082 |
2 |
set screw |
2-79-35 |
35 |
60008592 |
4 |
Screw, adjusting |
2-79-36 |
36 |
60038480 |
4 |
Nut |
2-79-37 |
37 |
60237083 |
2 |
protective sleeve |
