SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 25
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
3-35-1 |
1 |
60266514 |
1 |
Swivel Joint Repair Kit |
Chapter 4

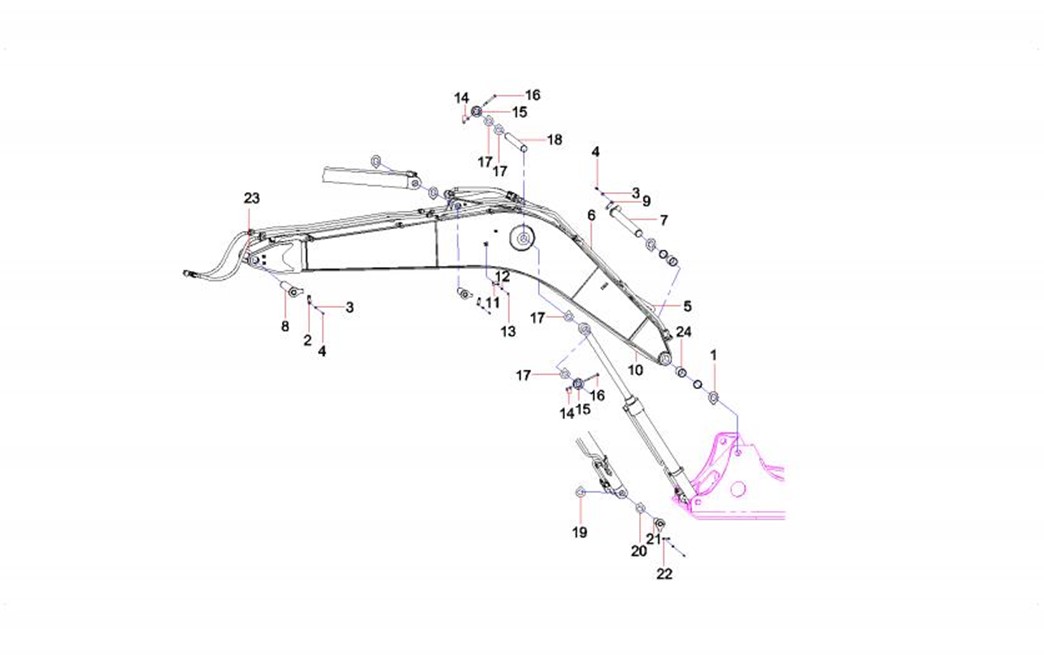

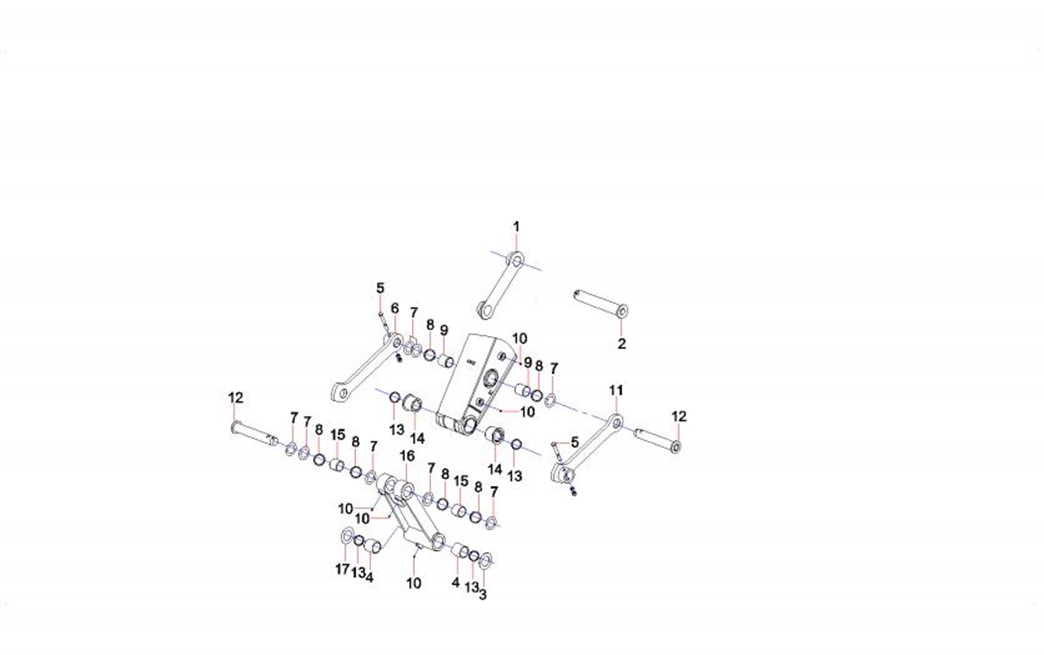

Hydraulic Excavator body SY215C9C5KL(EU)
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-3-1 |
1 |
11112327 |
1 |
Gasket, resin |
4-3-2 |
2 |
11308781 |
1 |
Plate, pressure |
4-3-3 |
3 |
24000642 |
4 |
Washer |
4-3-4 |
4 |
A210111000212 |
4 |
Bolt M16×35GB5783 10.9 |
4-3-5 |
5 |
12728433 |
1 |
Work device hydraulic Tube |
4-3-6 |
6 |
11777805 |
1 |
Pipeline, greasing, work equipment |
4-3-7 |
7 |
11856384 |
1 |
Roll, pin |
4-3-8 |
8 |
A810312110019 |
1 |
Roll, pin |
4-3-9 |
9 |
11324336 |
1 |
Plate, pressure |
4-3-10 |
10 |
12719373 |
1 |
boomSY215CAI4K.3.2 |
4-3-11 |
11 |
A820101322531 |
2 |
Bracket, lamp |
4-3-12 |
12 |
Modification or other |
2 |
Washer |
4-3-13 |
13 |
Modification or other |
2 |
Bolt M16×30GB5783 10.9 |
4-3-14 |
14 |
A210307000029 |
12 |
Nut M20GB6170 10 |
4-3-15 |
15 |
A820202002009 |
2 |
Plate |
4-3-16 |
16 |
A210110000352 |
3 |
Bolt |
4-3-17 |
17 |
Modification or other |
2 |
Gasket, resin |
4-3-18 |
18 |
A820301020461 |
1 |
Roll, pin |
4-3-19 |
19 |
11112311 |
2 |
Gasket, resin |
4-3-20 |
20 |
11041902 |
2 |
Gasket, resin |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-5-21 |
21 |
A810312110017 |
2 |
Roll, pin |
4-5-22 |
22 |
11272926 |
2 |
Plate, pressure |
4-5-23 |
23 |
Modification or other |
4 |
Gasket |
4-5-24 |
24 |
11307308 |
2 |
Sleeve, shaft |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

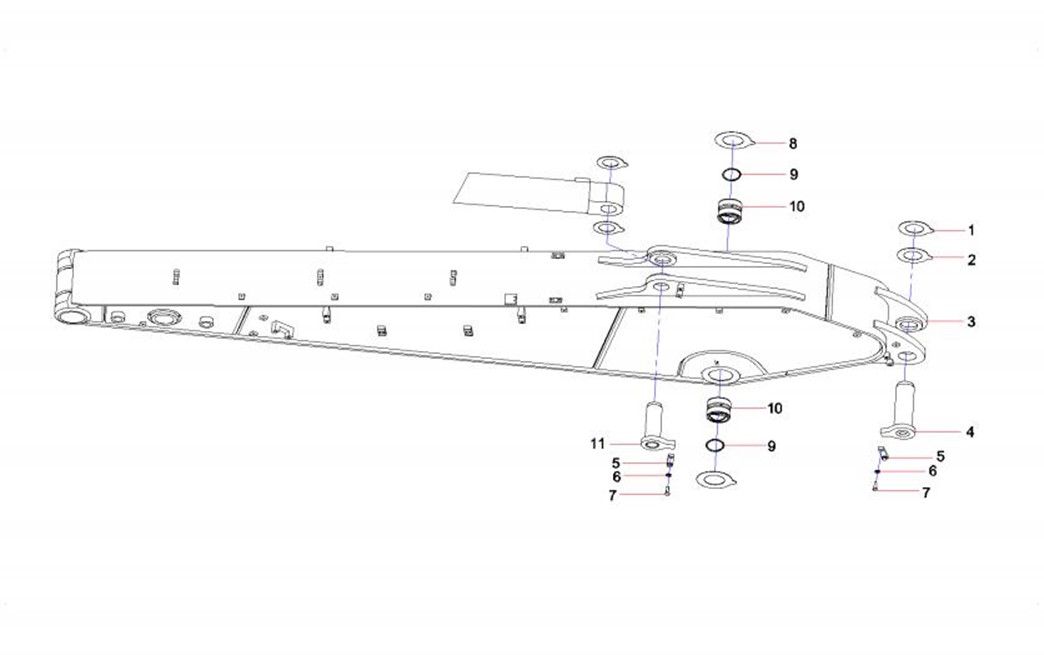

4-7-1 |
1 |
11112320 |
1 |
Gasket, resin |
4-7-2 |
2 |
11041905 |
1 |
Gasket, resin |
4-7-3 |
3 |
12719523 |
1 |
Arm SY215CAI4K.3.3 |
4-7-4 |
4 |
A810312110021 |
2 |
Roll, pin |
4-7-5 |
5 |
A820101119187 |
3 |
Plate |
4-7-6 |
6 |
24000639 |
10 |
Washer |
4-7-7 |
7 |
Modification or other |
10 |
Bolt M12×30GB578310.9 |
4-7-8 |
8 |
11041901 |
1 |
Gasket, resin |
4-7-9 |
9 |
60055872 |
4 |
DLI-ring, dustproof |
4-7-10 |
10 |
11216201 |
2 |
Sleeve, shaft |
4-7-11 |
11 |
A810312110015 |
1 |
Roll, pin |
