IC

INDEX

PART NUMBER

QTY

PART NAME

3-7-1

1

A210111000199

3

Bolt M12×20GB5783 10.9

3-7-2

2

24000639

11

Washer

3-7-3

3

10600405

1

Coverplate

IC

INDEX

PART NUMBER

QTY

PART NAME

3-9-1

1

A820606030917

2

Sleeve, protective

3-9-2

2

A820606030920

2

Sheath

IC

INDEX

PART NUMBER

QTY

PART NAME

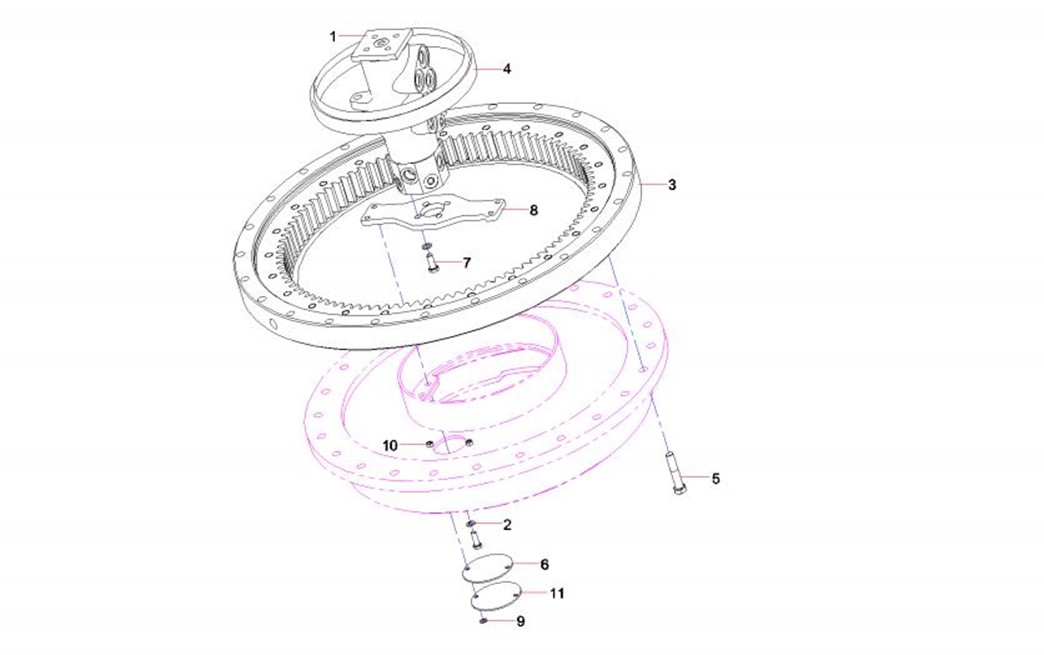

3-11-1

1

13468720

1

Undercarriages hydraulic pipeline

3-11-2

2

24000637

14

Washer

3-11-3

3

11309667

1

Bearing,slewing

3-11-4

4

12087542

1

Ring, sealing, grease chamber

3-11-5

5

A210111000055

24

Bolt M16×60GB5783 10.9

3-11-6

6

A820101343429

1

Gasket

3-11-7

7

A210111000202

4

Bolt M12×30GB578310.9

3-11-8

8

10542622

1

Plate

3-11-9

9

24000633

6

Washer

3-11-10

10

A210307000012

2

Nut M8GB6170

3-11-11

11

A820101343428

1

Coverplate

IC

INDEX

PART NUMBER

QTY

PART NAME

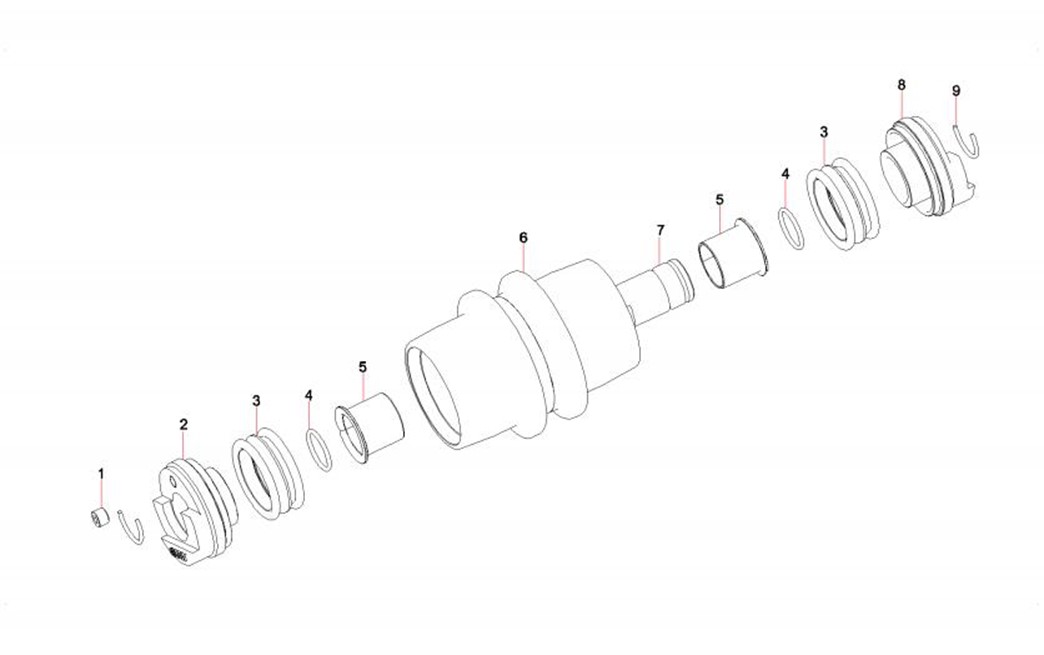

3-13-1

1

60086233

2

Pin

3-13-2

2

60086231

1

Support, inner

3-13-3

3

60086229

2

Seal GP

3-13-4

4

A230101000256

2

O-ring

3-13-5

5

60086240

2

Sleeve, shaft

3-13-6

6

60086236

1

Shaft

3-13-7

7

60086234

1

Wheel, idler

3-13-8

8

60086232

1

Support, outer

3-13-9

9

60078263

1

Plug, screw

IC

INDEX

PART NUMBER

QTY

PART NAME

3-15-1

1

A210204000008

4

Screw M10×40GB70.1

3-15-2

2

A210401000001

4

Washer 10GB93

3-15-3

3

60086243

1

Seat

3-15-4

4

60086227

1

Rod, pull

3-15-5

5

60086242

1

Bracket

3-15-6

6

60086224

1

Spring

3-15-7

7

60086220

1

Sleeve, locating

3-15-8

8

60086235

1

Bracket

3-15-9

9

60086226

1

Nut, fixing

3-15-10

10

60086241

1

Plunger

3-15-11

11

60063161

1

Ring,wearable

3-15-12

12

B230101000054

1

Ring, dustproof

3-15-13

13

B229900006176

1

Ring, bearing

3-15-14

14

60281351

1

Seal ring

3-15-15

15

60281352

1

Wearing ring

3-15-16

16

60086225

1

Block, cylinder

3-15-17

17

60202699

1

Tensioning Equipment Refiller
