SANY SY210C SY210C6 SY210C6C2K EXCAVATOR parts catalog 30
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-5-1 |
1 |
12727593 |
1 |
Film, reflective, counterweight |
6-5-2 |
2 |
12722074 |
1 |
Decal, boom, right |
6-5-3 |
3 |
Modification or other |
1 |
Nameplate |
6-5-4 |
4 |
A210510000007 |
4 |
Rivet |
6-5-5 |
5 |
A820601990963 |
2 |
Decal, warning, arm |
6-5-6 |
6 |
11993325 |
1 |
Nameplate |
6-5-7 |
7 |
12033801 |
2 |
Decal, center of gravity |
6-5-8 |
8 |
A820601990968 |
2 |
Decal, warning, tensioner |
6-5-9 |
9 |
A820601990934 |
4 |
Decal,tie-down,shipment |
6-5-10 |
10 |
A820101990552 |
4 |
Diagram, hoisting point |
6-5-11 |
11 |
A820601990967 |
1 |
Decal, instruction, seat adjustment |
6-5-12 |
12 |
A820601990927 |
1 |
Label, unlock |
6-5-13 |
13 |
A820101050798 |
1 |
Decal, warning, hot surface |
6-5-14 |
14 |
13098972 |
1 |
Machine Body Right |
6-5-15 |
15 |
10232562 |
1 |
Decal, sany logo |
6-5-16 |
16 |
10220833 |
1 |
Decal, SANY logo |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

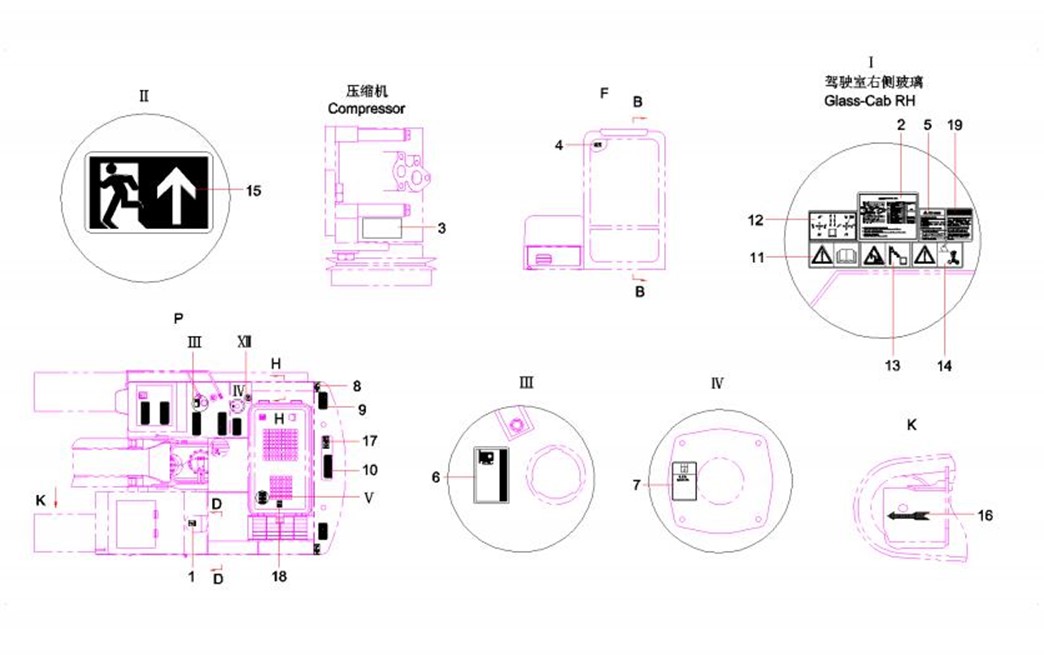

6-7-1 |
1 |
11323371 |
1 |
Decal, warning, no-sitting |
6-7-2 |
2 |
11464411 |
1 |
Graph, lubrication |
6-7-3 |
3 |
A820699001284 |
1 |
Decal, instruction, refrigerant |
6-7-4 |
4 |
A820699001019 |
1 |
Decal, warning, front window |
6-7-5 |
5 |
11648786 |
1 |
Decal, warning, pre-start |
6-7-6 |
6 |
A820601990965 |
1 |
Decal, fuel tank |
6-7-7 |
7 |
A820603000253 |
1 |
Label, instruction, hydraulic tank |
6-7-8 |
8 |
A820601990926 |
3 |
Decal, warning, falling |
6-7-9 |
9 |
A820699000370 |
3 |
Anti-skid, short |
6-7-10 |
10 |
A820699000369 |
7 |
Anti-skid, long |
6-7-11 |
11 |
11464425 |
1 |
Label, warning, “Read manual” |
6-7-12 |
12 |
A820601990961 |
1 |
Label, instruction, operation |
6-7-13 |
13 |
11464432 |
1 |
Decal, warning, high-voltage |
6-7-14 |
14 |
11464441 |
1 |
Decal, warning, power-off |
6-7-15 |
15 |
A820601990969 |
1 |
Label, emergency exit |
6-7-16 |
16 |
12057746 |
2 |
Decal, instruction, forward |
6-7-17 |
17 |
12728493 |
1 |
Decal,exhaust |
6-7-18 |
18 |
12725711 |
1 |
Decal |
6-7-19 |
19 |
12919461 |
1 |
Stop engine caution |
Chapter 7
Attached accessories SY210C6C2K.6
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

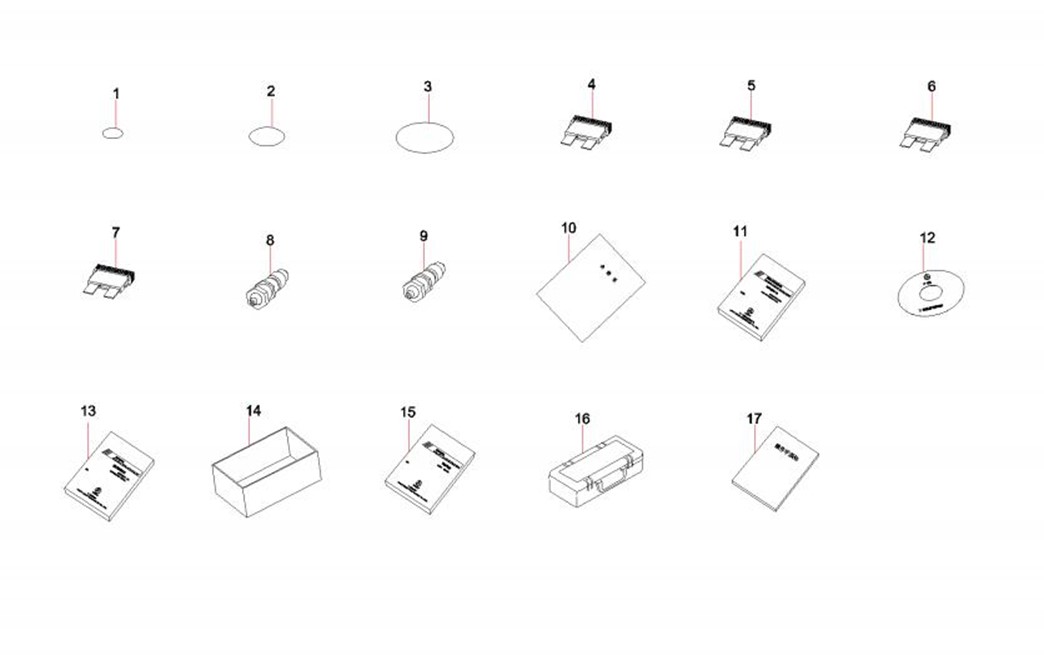

7-3-1 |
1 |
A210609000136 |
3 |
O-ring 29.7×3.5JISB2401 |
7-3-2 |
2 |
B230101000588 |
1 |
O-ring 179.3×5.7JISB2401 |
7-3-3 |
3 |
B230101000456 |
4 |
O-ring |
7-3-4 |
4 |
A241300000016 |
5 |
Fuse 10-13.35A |
7-3-5 |
5 |
A241300000017 |
5 |
Fuse |
7-3-6 |
6 |
A241300000018 |
5 |
Fuse |
7-3-7 |
7 |
A241300000019 |
5 |
Fuse |
7-3-8 |
8 |
B229900000379 |
3 |
Fitting, grease |
7-3-9 |
9 |
B229900000686 |
5 |
Fitting, grease |
7-3-10 |
10 |
59000039 |
1 |
Certificate, product quality |
7-3-11 |
11 |
13099494 |
1 |
SY210C6C1K Hydraulic Excavator |
7-3-11 |
11 |
Modification or other |
1 |
SY210-220-240 Hydraulic |
7-3-12 |
12 |
12535566 |
1 |
CD, excavator maintenance |
7-3-13 |
13 |
11826337 |
1 |
Manual, operation and |
7-3-14 |
14 |
60041997 |
1 |
Box, accessory |
7-3-15 |
15 |
13489564 |
1 |
SY210C6C2K spare parts drawing |
7-3-16 |
16 |
10442741 |
1 |
Box, tool |
7-3-17 |
17 |
13106659 |
1 |
Operation instruction |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

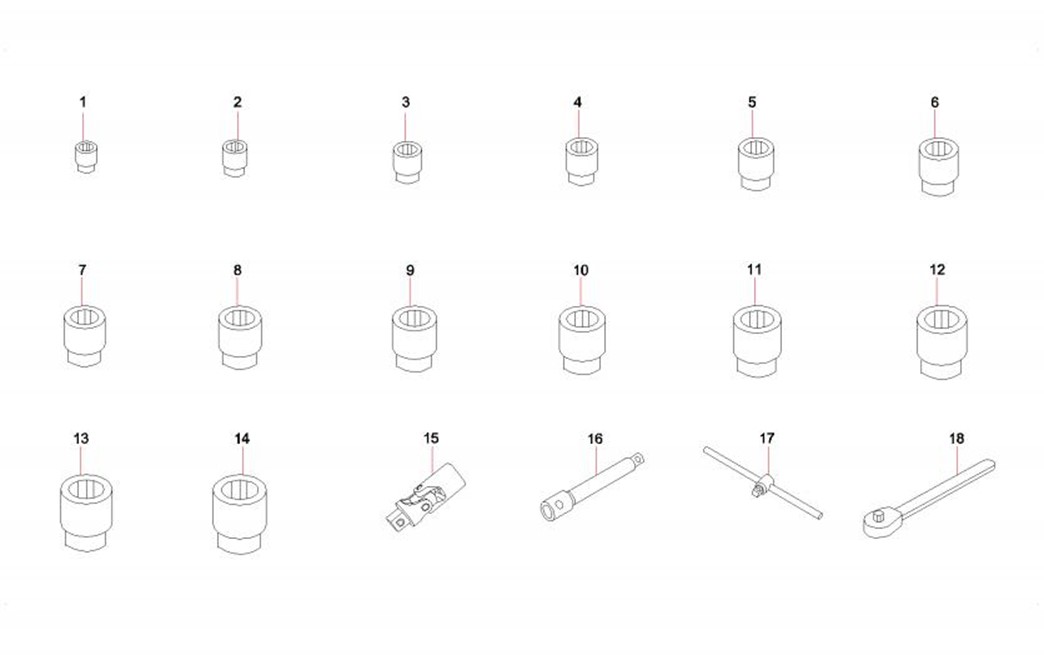

7-5-1 |
1 |
A260401010023 |
1 |
Socket 10×12.5GB3390.1 |
7-5-2 |
2 |
A260401010063 |
1 |
Socket 11×12.5GB3390.1 |
7-5-3 |
3 |
A260401010024 |
1 |
Socket 13×12.5GB3390.1 |
7-5-4 |
4 |
A260401010095 |
1 |
Socket 14×12.5LGB3390.1 |
7-5-5 |
5 |
A260401010025 |
1 |
Socket 16×12.5GB3390.1 |
7-5-6 |
6 |
A260401010077 |
1 |
Socket 17×12.5GB3390.1 |
7-5-7 |
7 |
60001295 |
1 |
Socket 18×12.5GB3390.1 |
7-5-8 |
8 |
A260401010081 |
1 |
Socket 19×12.5GB3390.1 |
7-5-9 |
9 |
A260401010027 |
1 |
Socket 21×12.5GB3390.1 |
7-5-10 |
10 |
A260401010078 |
1 |
Socket 22×12.5GB3390.1 |
7-5-11 |
11 |
A260401010051 |
1 |
Socket 24×12.5GB3390.1 |
7-5-12 |
12 |
A260401010031 |
1 |
Socket 27×20GB3390.1 |
7-5-13 |
13 |
A260401010055 |
1 |
Socket 30×20GB3390.1 |
7-5-14 |
14 |
A260401010057 |
1 |
Socket 36×20GB3390.1 |
7-5-15 |
15 |
A229900007607 |
1 |
Joint, universal |
7-5-16 |
16 |
A260401010065 |
1 |
Rod, extension |
7-5-17 |
17 |
60001293 |
1 |
T-tool |
7-5-18 |
18 |
A260401090010 |
1 |
Wrench, ratchet, reversible |
